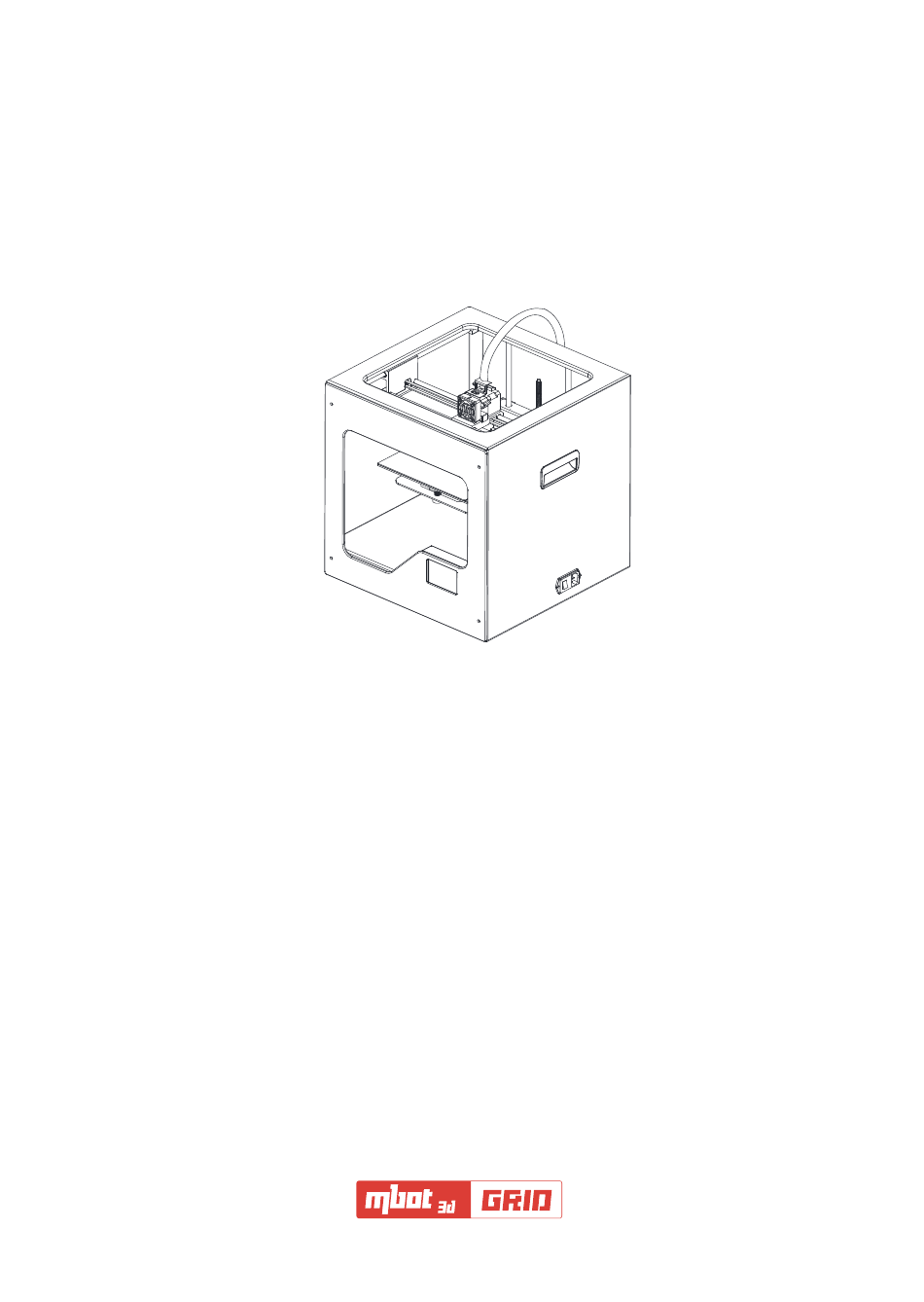

- Page 1 MBot Grid Ⅳ 3D Printer USER MANUAL...
- Page 2 MBot 3D Printer User Manual ●UNPACKING YOUR PRINTER 1. Place the box on the ground and open it up. 2. Slowly take MBot Grid II+ out of the box by grasping the upp two hands. Place it on a sturdy table. 3.
- Page 3 MBot 3D Printer User Manual ●AT A GLANCE ⑨ ⑦ ⑧ ⑥ [1] LCD panel [2] Power switch ③ [3] Print head cable [4]U disk/SD card port [5]Build platform [6]Filament feed tube ⑤ [7] X axis [8]Y axis ④ [9]Z axis ①...
- Page 4 MBot 3D Printer User Manual ●LOADING FILAMENT Insert spool holder and filament spool into the square holder mount ① on the side of the printer. ② Select the pre-heating option in the Tools menu, press the Add button to set the Extruder 's pre-heating temperature.
- Page 5 MBot 3D Printer User Manual ●PRINT Notice: You should put the platform on the printer's build stage first before printing. ① Slicing the printing 3d model(STL format file) to gcode file (which can be read by the printer) through MPrint software, copy the generated gcode file to USB Memory Disk or SD Card, and insert it into the printer's slot which is on the left side of the touch screen.
- Page 6 MBot 3D Printer User Manual ●LEVELING THE BUILD PLATFORM Note: When the printer is shipped from the factory, the build platform was leveled and the gap with the nozzle also adjusted. Since it may cause displacement during transportation, please re-adjust the gap between the platform and the nozzle. The gap between the platform and the nozzle is too large, the model can not stick to the platform, when the gap is too small, the model is not easy to remove, and the gap size is suitable for the thickness of two A4 papers.
- Page 7 MBot 3D Printer User Manual ●Other operations 1. MOVE The movement command under the tool menu can move the X, Y, Z three axes, which is convenient for other operations or to judge whether the three-axis motor works normally. When moving, the movement distance can be adjusted by three gear positions of 0.1mm, 1mm and 10mm.
- Page 8 Thanks again for choosing MBot 3D printer! Tech Support: support@mbot3d.com Email: info@mbot3d.com http://www.mbot3d.com...
