Summary of Contents for Eyyes CarEye Safety Angle

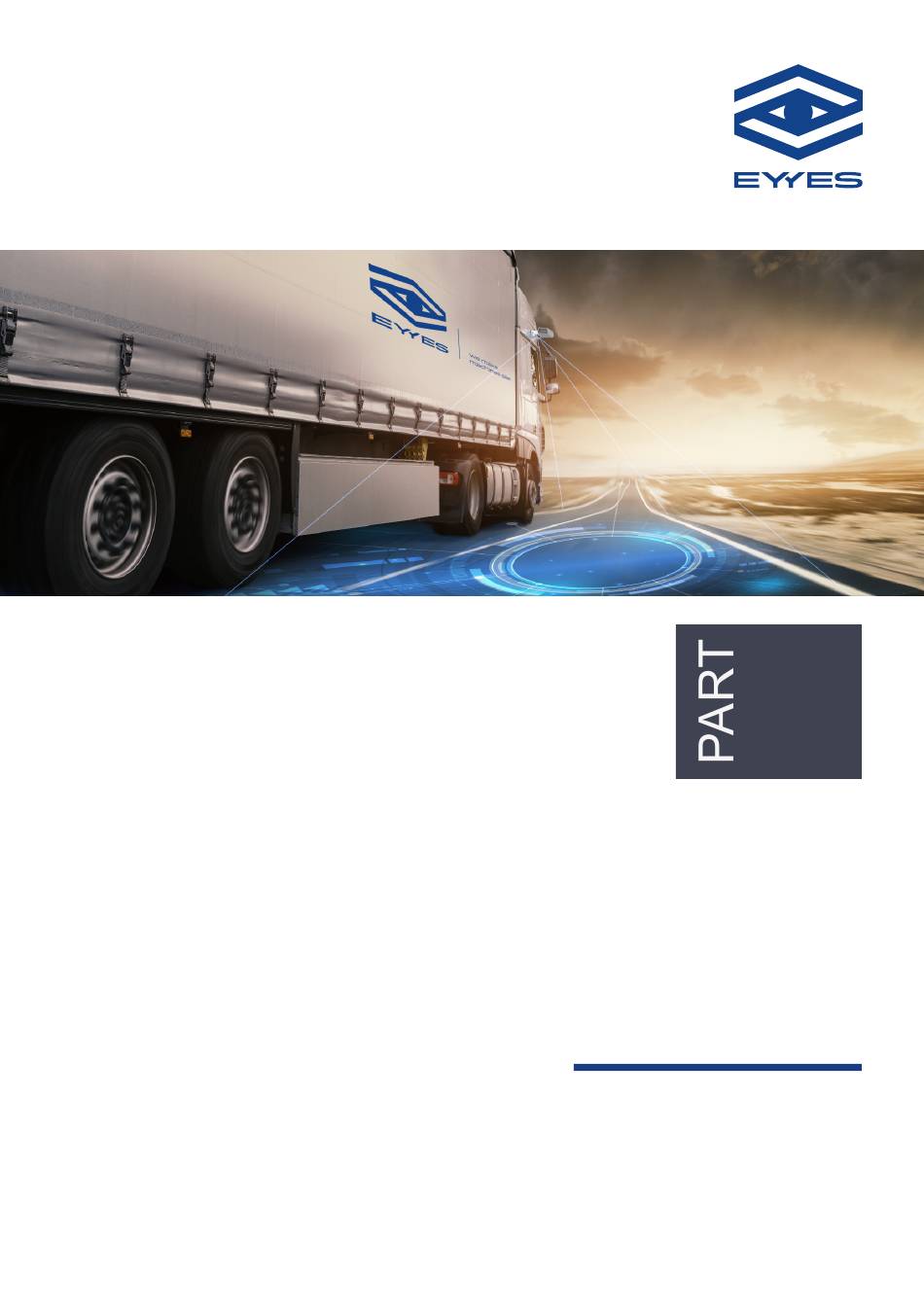

- Page 1 WWW.EYYES.COM CAREYE SAFETY ANGLE ® TURN ASSIST INSTALLATION MANUAL MONITOR 10“ - 16:9 Document: S06-013_xx_EN CarEye Safety Angle Teil D Version: 3.0.2 Article: BT-DOC-00231 EYYES GmbH Im Wirtschaftspark 4 3493 Gedersdorf Österreich office@eyyes.com www.eyyes.com...
-
Page 2: Table Of Contents
WWW.EYYES.COM CAREYE SAFETY ANGLE - TURN - ASSIST ® INSTALLATION AND INSTRUCTION MANUAL CONTENT GENERAL NOTES ..........................03 SAFETY INSTRUCTIONS ........................ 04 Important documents........................08 Function description and function modules..............12 Components - Monitors ....................... 14 Installation - Monitors ........................18 Electrical connection........................ -
Page 3: General Notes
WWW.EYYES.COM CAREYE SAFETY ANGLE - TURN - ASSIST ® INSTALLATION AND INSTRUCTION MANUAL GENERAL NOTES Read this manual carefully, it contains important information and notes on assembly, commissioning and safe operation. Pay particular attention to the following markings: Information that serves the proper operation and handling is shown with this symbol. -
Page 4: Safety Instructions
WWW.EYYES.COM CAREYE SAFETY ANGLE - TURN - ASSIST ® INSTALLATION AND INSTRUCTION MANUAL SAFETY INSTRUCTIONS ABOUT CAREYE SAFETY ANGLE ® ■ The CAREYE SAFETY ANGLE system is an assistance ® system to support the driver. The responsibility for monitoring remains with the driver. - Page 5 WWW.EYYES.COM CAREYE SAFETY ANGLE - TURN - ASSIST ® INSTALLATION AND INSTRUCTION MANUAL Safety Instructions INSTALLATION ■ Installation must be carried out by registered workshops for motor vehicles or commercial vehicles or by authorized workshops, otherwise warranty claims will become void.
- Page 6 WWW.EYYES.COM CAREYE SAFETY ANGLE - TURN - ASSIST ® INSTALLATION AND INSTRUCTION MANUAL Safety Instructions OPERATION ■ Operate the components only on the vehicle electrical system with 12 to 24 VDC nominal voltage of the vehicle. ■ Observe the mechanical, electrical and climatic operating conditions.
- Page 7 ■ Use only original spare parts and have repairs carried out only in specialist workshops authorized by EYYES. ■ EYYES accepts no liability for damage caused by failure to observe this manual. This manual is part of the product.
-
Page 8: Important Documents
WWW.EYYES.COM CAREYE SAFETY ANGLE - TURN - ASSIST ® INSTALLATION AND INSTRUCTION MANUAL IMPORTANT DOCUMENTS The following documents are important components of the products, which must be observed accordingly. DOCUMENT Installation and Instruction Manual Control Box and Cameras (Part M) CONTENT ■... - Page 9 WWW.EYYES.COM CAREYE SAFETY ANGLE - TURN - ASSIST ® INSTALLATION AND INSTRUCTION MANUAL Important documents DOCUMENT Drilling template CONTENT Drilling template for the camera base ENCLOSED Camera TACAM NOTES...
- Page 10 WWW.EYYES.COM CAREYE SAFETY ANGLE - TURN - ASSIST ® INSTALLATION AND INSTRUCTION MANUAL Imported documents DOCUMENT Installation manual steering angle sensor (Part L) CONTENT ■ Safety instructions ■ Function descriptions ■ Component description ■ Installation ■ Connection ■ Commissioning ■ Parts overview...
- Page 11 Carry in the vehicle not required DOCUMENT CarEye Safety Angle installations protokoll CONTENT Logging of the measures in the course of assembly/installation by the installing workshop. This protocol can also be completed electronically. ENCLOSED SET TIC Box TATIC NOTES Return of the protocol to EYYES.
-
Page 12: Function Description And Function Modules
WWW.EYYES.COM CAREYE SAFETY ANGLE - TURN - ASSIST ® INSTALLATION AND INSTRUCTION MANUAL FUNCTION DESCRIPTION AND FUNCTION MODULES As part of the CAREYE product suite, the SAFETY ANGLE variant offers a ® flexible, expandable and safe system for use as an TURN ASSISTANT / BLIND SPOT ASSISTANT with proven safety functions. - Page 13 WWW.EYYES.COM CAREYE SAFETY ANGLE - TURN - ASSIST ® INSTALLATION AND INSTRUCTION MANUAL Function description and function modules If a person or a cyclist is detected in the danger zone when turning, the driver is warned by the optical signal indicator and additionally with a loud sound generator.
-
Page 14: Components - Monitors
A-pillar, is optionally available. Translated with www.DeepL.com/Translator (free version) The monitor is an optional addition to the CarEye Safety Angle turn-off assistance system. Please also refer to the document Installation and Instruction... - Page 15 WWW.EYYES.COM CAREYE SAFETY ANGLE - TURN - ASSIST ® INSTALLATION AND INSTRUCTION MANUAL Components - Monitors TECHNICAL DATA Description TAMON100-0001 10,1“ Monitor with 16:9 format Resolution Display 1.024 x 600 px Brightness & Contrast 1.000 cd/m²; 600:1 Viewing angle 140°/120° (long side/short side)
- Page 16 WWW.EYYES.COM CAREYE SAFETY ANGLE - TURN - ASSIST ® INSTALLATION AND INSTRUCTION MANUAL...
- Page 17 WWW.EYYES.COM CAREYE SAFETY ANGLE - TURN - ASSIST ® INSTALLATION AND INSTRUCTION MANUAL LEGEND Scope of delivery TIC Scope of delivery cable set TIC Box Scope of delivery cameras Scope of delivery Cordsets Cameras Scope of delivery steering angle sensor...
-
Page 18: Installation - Monitors
WWW.EYYES.COM CAREYE SAFETY ANGLE - TURN - ASSIST ® INSTALLATION AND INSTRUCTION MANUAL INSTALLATION - MONITORS GENERAL The optional TAMON monitors are designed for mounting on the right side for the right turn assist or on the left side for the left turn assist. -
Page 19: Electrical Connection
WWW.EYYES.COM CAREYE SAFETY ANGLE - TURN - ASSIST ® INSTALLATION AND INSTRUCTION MANUAL ELECTRICAL CONNECTION GENERAL ■ The most cable sets are pre-configured and provided with permanently mounted plug connections, do not shorten them: □ Cable set signal element, an extension cable is optionally available for this purpose, □... - Page 20 WWW.EYYES.COM CAREYE SAFETY ANGLE - TURN - ASSIST ® INSTALLATION AND INSTRUCTION MANUAL Electrical connection POWER SUPPLY - PWR ■ Connect the steady plus, the ignition plus and the ground to the terminals provided for this purpose, but ensure that the voltage is not present at the start of assembly and do not connect the voltage supply until the assembly work has been completed.
- Page 21 WWW.EYYES.COM CAREYE SAFETY ANGLE - TURN - ASSIST ® INSTALLATION AND INSTRUCTION MANUAL Electrical connection POWER SUPPLY - PWR CABLE SET TATIC - POWER SUPPLY 12-24 VDC TIC BOX CAM1-CAM8 Pin1 Ground (black) Pin2 +VDC Plus (brown) Pin3 +VDC Ignition plus (white)
- Page 22 WWW.EYYES.COM CAREYE SAFETY ANGLE - TURN - ASSIST ® INSTALLATION AND INSTRUCTION MANUAL Electrical connection MONITORS - MON1 AND MON2 ■ Connect the signal line of the monitors to the configured ports MON1 (turn assistant right) and MON2 (turn assistant left) of the TIC box.
- Page 23 WWW.EYYES.COM CAREYE SAFETY ANGLE - TURN - ASSIST ® INSTALLATION AND INSTRUCTION MANUAL Electrical connection MONITORS - MON1 AND MON2 CABLE SET TAMON - VIDEO SIGNAL & POWER SUPPLY 12-24 VDC TIC BOX MON1 Pin1 Ground (black) MON2 Pin2 +VDC Plus (brown)
- Page 24 WWW.EYYES.COM CAREYE SAFETY ANGLE - TURN - ASSIST ® INSTALLATION AND INSTRUCTION MANUAL Electrical connection IMPORTANT NOTES The CAREYE ® SAFETY ANGLE system or its components must be installed and wired in such a way that they start up automatically when the ignition is switched on. Under no circumstances may the entire system or parts of it be switched off or implemented.
-
Page 25: Operation And Use
WWW.EYYES.COM CAREYE SAFETY ANGLE - TURN - ASSIST ® INSTALLATION AND INSTRUCTION MANUAL OPERATION AND USE OPERATIONAL READINESS OF THE SYSTEM The system does not have any setting options in operational mode. When ® the vehicle is started or the ignition is switched on, the entire CAREYE SAFETY ANGLE system automatically starts up and is ready for operation. -
Page 26: Components Overview
WWW.EYYES.COM CAREYE SAFETY ANGLE - TURN - ASSIST ® INSTALLATION AND INSTRUCTION MANUAL COMPONENTS OVERVIEW MONITORS ARTICLE-NR. DESCRIPTION FIGURE CS-SET-0017x SET Monitor TAMON100-0001-xx 16:9, 10“ Monitor Format 16:9, 10“ (1) BT-DOC-0023x Installation manual part D (1) CS-SET-0018x SET Monitor Cable set VIDEO TACAB007-0030-xx... - Page 27 WWW.EYYES.COM CAREYE SAFETY ANGLE - TURN - ASSIST ® INSTALLATION AND INSTRUCTION MANUAL Components overview MONITORS - ACCESSORIES ARTICLE-NR. DESCRIPTION FIGURE CS-SET-0012x Ball head bracket TAACC001-0001-xx Ball head bracket for the monitor 8:3 and 16:9 CS-SET-0013x Pan/Tilt mount TAACC001-0002-xx Pan/Tilt mount for the monitor...
-
Page 28: General Informations
WWW.EYYES.COM CAREYE SAFETY ANGLE - TURN - ASSIST ® INSTALLATION AND INSTRUCTION MANUAL GENERAL INFORMATIONS SYSTEM LIMITS The turn-off assistant has been tested on the basis of legal requirements. Please bear in mind that, despite the sophisticated technology, this is an assistance system and must be used as such. - Page 29 EYYES GmbH reserves the right to change the information without prior notice. EYYES GmbH assumes no liability for incidental or consequential damages resulting from the use of this document.
- Page 30 WWW.EYYES.COM CAREYE SAFETY ANGLE - TURN - ASSIST ® INSTALLATION AND INSTRUCTION MANUAL NOTES...
- Page 31 WWW.EYYES.COM CAREYE SAFETY ANGLE - TURN - ASSIST ® INSTALLATION AND INSTRUCTION MANUAL NOTES...
- Page 32 EYYES GmbH Im Wirtschaftspark 4 3493 Gedersdorf Österreich office@eyyes.com www.eyyes.com...
