Summary of Contents for LANDY S-SPE

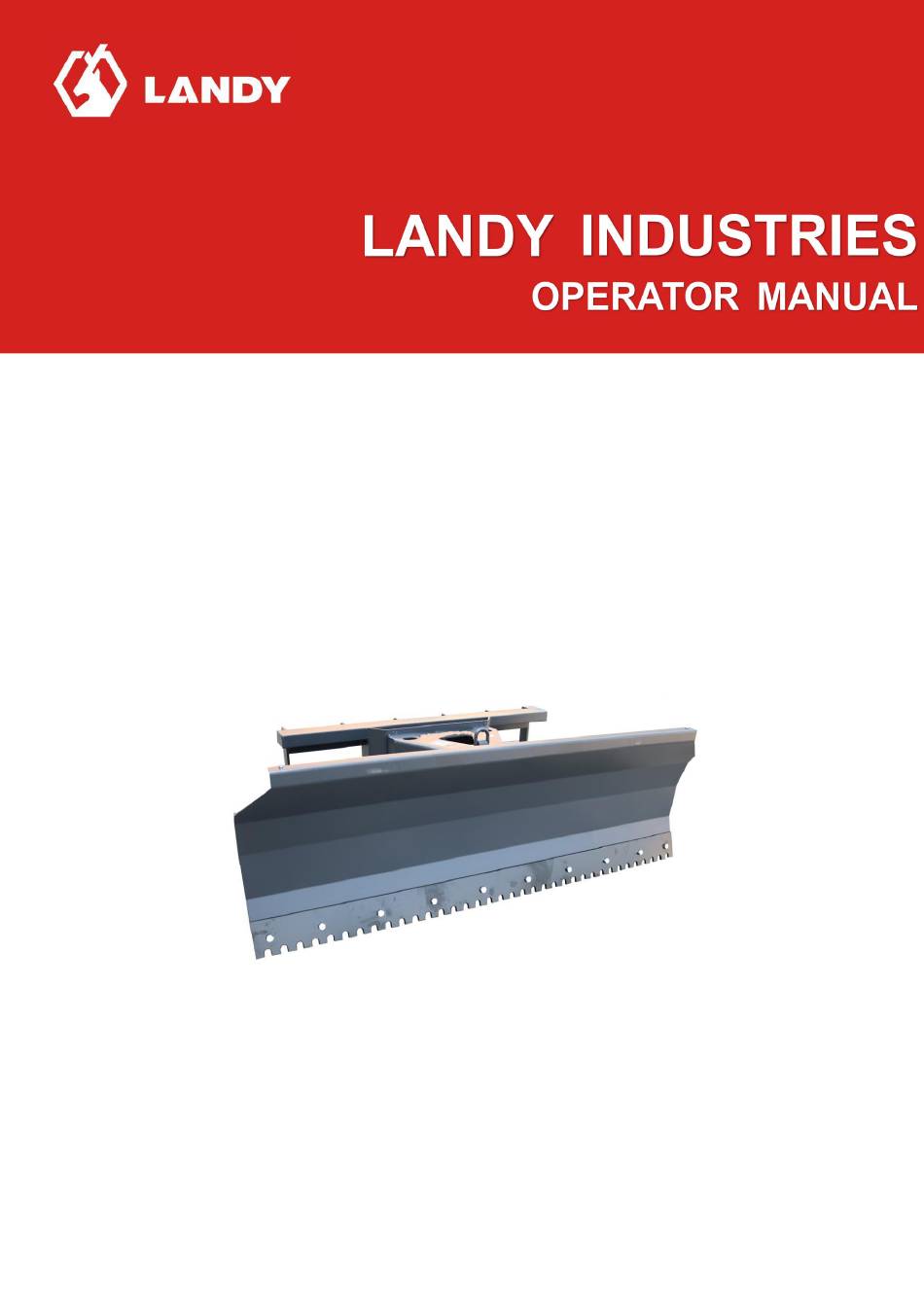

- Page 1 Skid Steer Dozer Blade MODEL: S-SPE...
- Page 2 Keep this manual for future reference and make sure to hand it over to a new owner. The cornerstones of the product development of LANDY attachments are quality, durability and economy. The products are engineered to be high-performing, safe and durable in professional use. Any feedback on our products is welcome and contributes to the further development of our products.
- Page 3 Table of contents 1. PURPOSE OF USE ................................4 2. SAFETY PRECAUTIONS ..............................4 3. PARTS OF THE DOZER BLADE ............................5 4. USING THE DOZER BLADE .............................. 7 5. OPERATING THE DOZER BLADE ............................7 6. MAINTENANCE OF THE DOZER BLADE ........................8...
- Page 4 1. PURPOSE OF USE It can be used as both a snow plow or heavy-duty dozer blade for moving earth and/or various other materials. 2. SAFETY PRECAUTIONS Make sure you know your equipment before you start using it. Equipment may be operated only by an individual who is thoroughly familiar with its use.
- Page 5 3. PARTS OF THE DOZER BLADE...
- Page 6 ITEM DESCRIPTION Dozer Blade Frame Middle Frame Blade Big Washer Small Washer Glass Reflector Reflector Plate Axle Spring Column Crash Pad Crash Pad Bolt Hex Bolt Hex Locking Nut Hex Bolt Hex Locking Nut Cylinder Hex Locking Nut Hex Bolt Hex Nut Hex Bolt Compression Spring...
- Page 7 4. USING THE DOZER BLADE When attaching the dozer blade for the first time, make sure it is compatible with the base machine by following the instructions below. Always check the compatibility when attaching the collecting sweeper to a new base machine. 4.1.
- Page 8 6. Lift dozer blade front and back support legs. Lock them in upward position with locking cotters. 7. Keep the dozer blade in suitable distance from ground. The attachment could be damaged! 8. Stay alert for any abnormal behaviour and oil leaks also during driving. 5.2.
