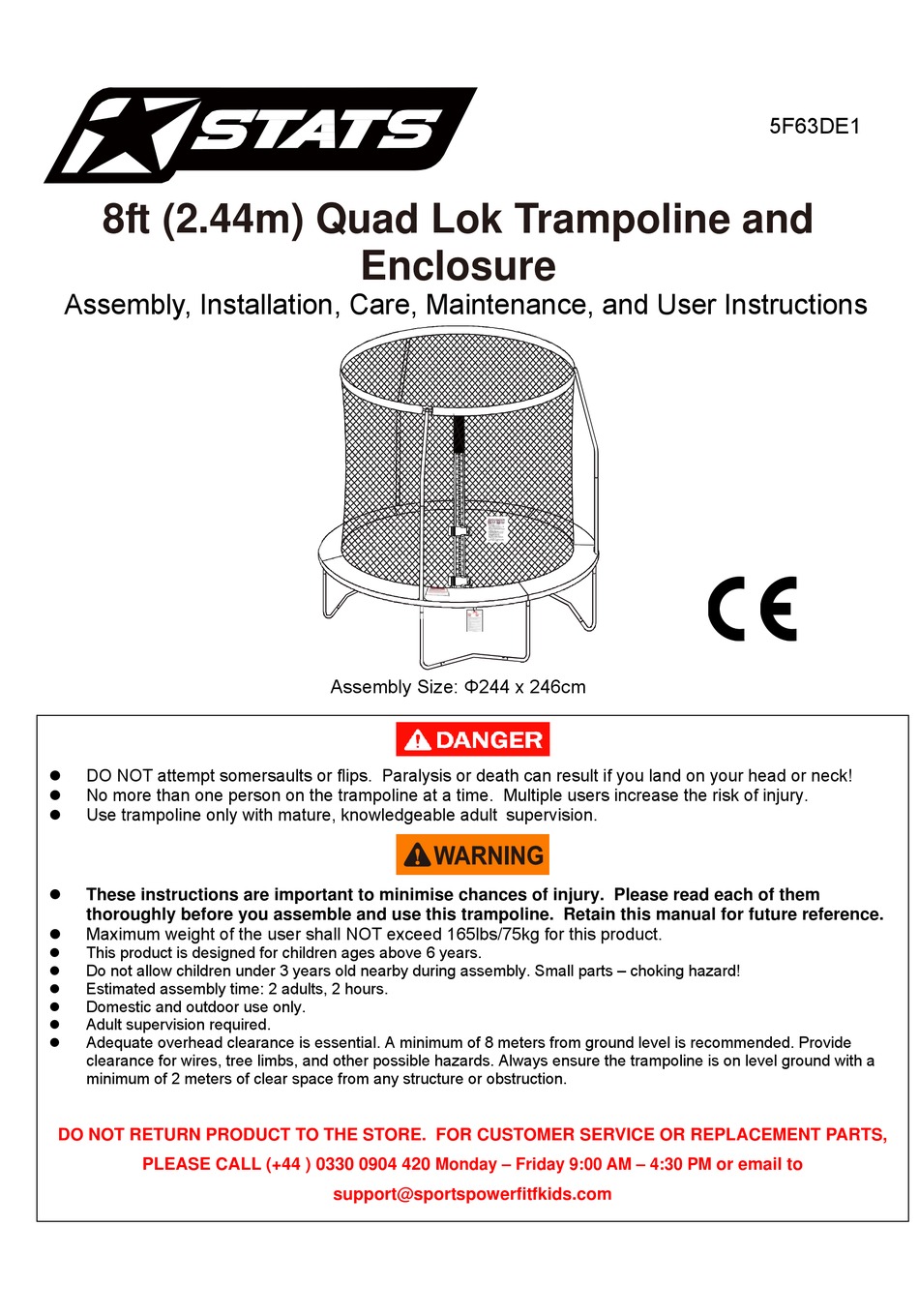

8ft (2.44m) Quad Lok Trampoline and
Assembly, Installation, Care, Maintenance, and User Instructions
DO NOT attempt somersaults or flips. Paralysis or death can result if you land on your head or neck!
No more than one person on the trampoline at a time. Multiple users increase the risk of injury.
Use trampoline only with mature, knowledgeable adult supervision.
These instructions are important to minimise chances of injury. Please read each of them
thoroughly before you assemble and use this trampoline. Retain this manual for future reference.
Maximum weight of the user shall NOT exceed 165lbs/75kg for this product.
This product is designed for children ages above 6 years.
Do not allow children under 3 years old nearby during assembly. Small parts – choking hazard!
Estimated assembly time: 2 adults, 2 hours.
Domestic and outdoor use only.
Adult supervision required.
Adequate overhead clearance is essential. A minimum of 8 meters from ground level is recommended. Provide
clearance for wires, tree limbs, and other possible hazards. Always ensure the trampoline is on level ground with a
minimum of 2 meters of clear space from any structure or obstruction.
DO NOT RETURN PRODUCT TO THE STORE. FOR CUSTOMER SERVICE OR REPLACEMENT PARTS,
PLEASE CALL (+44 ) 0330 0904 420 Monday – Friday 9:00 AM – 4:30 PM or email to
Enclosure
Assembly Size: Φ244 x 246cm
support@sportspowerfitfkids.com
5F63DE1
