EKT TSP01 User Manual

Z-WAVE TSP01
User Manual

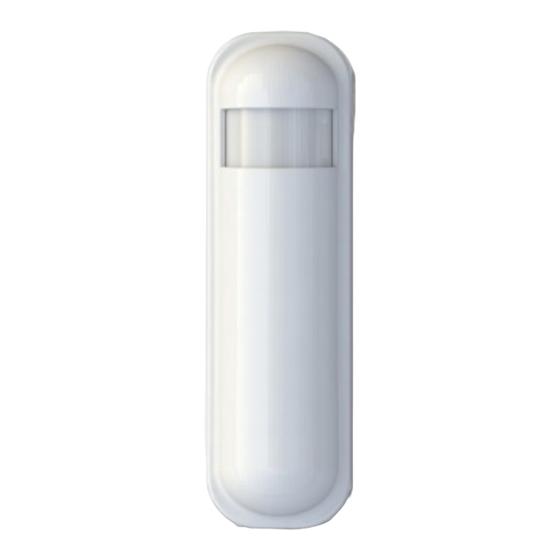

The slim multi-sensor TSP01 has PIR, temperature and illumination, 3
sensors function in one, based on Z-Wave
wireless communication protocol designed for home automation,
specifically to remotely control applications in residential and light
commercial environments. The technology uses a low-power RF radio
embedded or retrofitted into home electronics devices and systems,
such as lighting, home access control, entertainment systems and
household appliances.
This device is one component of the Z-Wave
designed to work with all other Z-Wave
control network. The device adopt the Z-Wave
your Z-Wave TM network system is all made by Z-Wave
devices. The network system will have the advantages as below.
Concurrent multi-channel support reduces external interference.
•
Better RF range, improve about 10 meters in indoor.
•
Support 100 Kbps transmit speed, speed up communication.
•
TM technology. Z-Wave TM is a
TM sensor system and is
TM enabled devices in a home
TM 400 series chip, when
TM 400 series
Adding to Z-Wave TM Network
There are two tamper keys in the device, one is in the back side,
another is in the front side. They have the same function. Both of them
can inclusion, exclusion, reset or association from Z-Wave
In the first time, add the device into the Z-Wave
sure the primary controller is in the inclusion mode. And then power on
the device, just take out the insulation Mylar in the back side of the
device. The device will auto start the NWI (Network Wide Inclusion)
mode. And it should be included in 5 seconds. You will see the LED
light ON one second.
Description
Function
1. Have Z-Wave
2. Pressing tamper key three times within 1.5 seconds
will enter inclusion mode.

Inclusion

3. After inclusion successful, the device will wake to
receive the setting command from Z-Wave
Controller about 20 seconds.
1. Have Z-Wave
2. Pressing tamper key three times within 1.5 seconds

Exclusion

will enter exclusion mode.
Node ID has been excluded.
1. Pressing tamper key four times within 1.5 seconds
and do not release the tamper key in the 4
pressed, and the LED will turn ON.
2. After 3 seconds the LED will turn OFF, after that
within 2 seconds, release the tamper key. If

Reset

successful, the LED will light ON one second.
Otherwise, the LED will flash once.
3. IDs are excluded and all settings will reset to
factory default.
TM network.
TM network. First, make
TM Controller entered inclusion mode.
TM
TM Controller entered exclusion mode.
th
