Summary of Contents for Turbo TDH-22

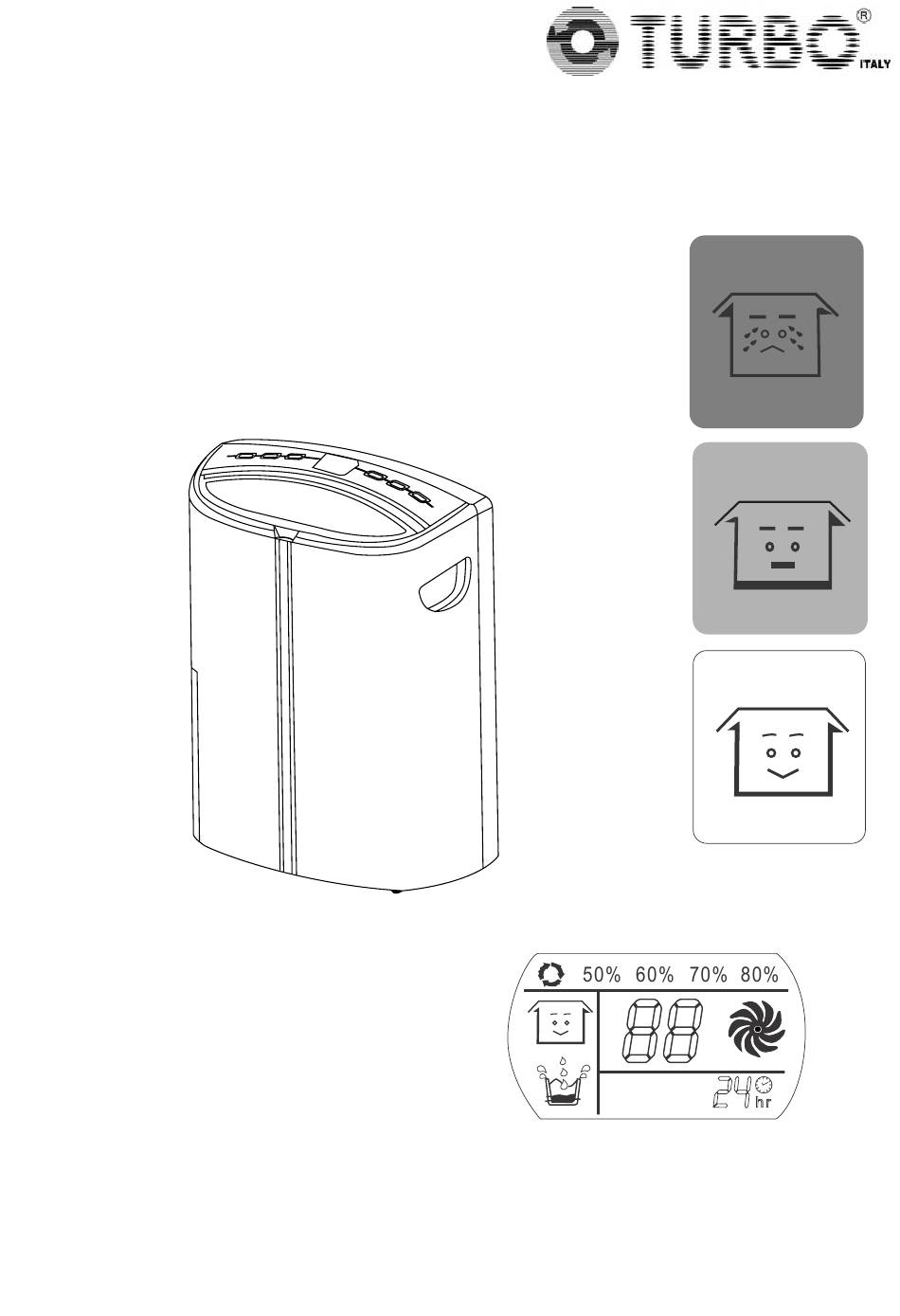

  • Page 1 LCD Dehumidifier TDH-22 Instruction Manual LCD 抽濕機使用說明書 ☆ Please read and retain these instructions for future reference...
  • Page 2: Table Of Contents

    TDH-22 Contents 目錄 Page Where to position Before use Parts Operation 5, 6 Drainage 7, 8 Maintenance 9, 10 Trouble shooting Specification Product warranty 使用位置 使用前 產品簡介 操作 15 16 排水 17 18 產品保養 19 20 疑難小百科 技術規格 產 品保養證...
  • Page 3: Where To Position

    TDH-22 Where to position When positioning the dehumidifier, ensure that it is placed on a level surface and that there is a minimum of 10 cm (4") of space on either side of the unit to allow for efficient airflow.
  • Page 4: Before Use

    TDH-22 Before use Caution! Always keep the unit in vertical position. Leave the unit to stand for one hour before connecting to the mains supply after transport or when it has been tilted (e.g. during cleaning). Keep all foreign objects away from the air intake or output openings.
  • Page 5: Parts

    TDH-22 Parts Front Control panel Clothes drying guider Air outlet Water full indicator Water tank Handle Rear Air filter / air inlet Power cord Handle 10. Hole for continuous drainage 11. Water tank 12. Caster Assembly of the filters Activated...
  • Page 6: Operation

    TDH-22 Operation Control panel Speed button Not functioned for this model Not functioned for this model Humidity selection button Timer ON/OFF button Display window Display window Humidity setting: continuous de-humidifying , 50%, 60%, 70%, 80% Ambient humidity condition: good fair,...
  • Page 7 TDH-22 means 30% ≤ambient room humidity < 50% or 70% < ambient room humidity ≤80% means the ambient room humidity is higher than 80%. compressor is in progress. In case the de-frost function is working, the water drops will flash.
  • Page 8: Drainage

    TDH-22 Drainage While the water tank is full, the compressor will stop for self-protection and: The sign of water full will flash. The unit will buzz. * For stopping the buzz, you may press the ON/OFF button to turn off the unit The water level window will turn to red.
  • Page 9 TDH-22 Continuous drainage When the dehumidifier is operated at very high humidity levels, the water tank will require more frequent drainage. In this situation, it may be more convenient to set the unit up for continuous drainage with the following procedures: Cut the outlet at the unit back.
  • Page 10: Maintenance

    TDH-22 Maintenance Always unplug the unit from the mains before carrying out any maintenance or cleaning of the unit. CLEANING THE BODY Use soft cloth to wipe the unit clean. Don't ever use volatile chemicals, gasoline, detergents, chemically treated clothes, or other cleansing solutions. All these could possibly hurt the cabinet.
  • Page 11 TDH-22 STORAGE If the unit is not used for an extended period of time. Please: Turing the unit off, unplug and tidy power cord. Completely empty the water tank and wipe it clean. Cover the unit and store where it will not receive direct sunlight.
  • Page 12: Trouble Shooting

    TDH-22 Trouble shooting THE UNIT DOES NOT OPERATE: Is the unit plugged in? Is the house electricity on? Is the room temperature below 5 C or above 35 C? If so, then it is out of the working range of the unit.
  • Page 13 TDH-22 使用位置...
  • Page 14 TDH-22 使用前...
  • Page 15: 產品簡介

    TDH-22 產品簡介 前面 後面 濾網的安裝...
  • Page 16 TDH-22 操作 控制板 全功能顯示屏 50%, 60%, 70%, 80%...
  • Page 17 TDH-22 80%. 及 溫度 操作 (HUM) , 50%, 60%, 70% (SPEED) 長按 Hum 鍵(約 秒),顯示室內溫度, 12 秒鍾後,自動返回顯示當前濕度...
  • Page 18 TDH-22 排水 要抽出水箱,請握着水箱底把手依水平線拉出水箱。(圖 1) 倒清水箱積水後,請將水箱放回原處。水箱必須正確放好,水箱顯示才消失,而此 機才可操作。(圖 2)
  • Page 19 TDH-22 連續排水 3) . 12mm(...
  • Page 20: 產品保養 19

    TDH-22 產品保養...
  • Page 21 TDH-22...
  • Page 22: 疑難小百科

    TDH-22 疑難小百科 位置...
  • Page 23: Specification

    TDH-22 Specification 技術規格 Model no. 型號 TDH-22 Power supply 電壓 220V-240V~, 50Hz Moisture removal capacity 抽濕功 率 20L/day Power /Ampere consumption 耗電量 370W/ 1.7A Refrigerant 環保型雪種 R134a Working range 操作温度 5 ~ 35 Water tank capacity 水箱容量 5.5 L Size 體積 (W 闊 x D 深 x H 高) 410 x 210 x 530 mm 重...
