Mania ANGLEMASTER Instructions

INSTRUCTIONS
ANGLE DRILLING TOOL KIT
ANGLEMASTER
PACKAGE CONTENTS
•
1× drill guide
•
3× drill bit (Ø 6, 8, 10 mm)
•
3× stop collar (Ø 6, 8, 10 mm)
•
6× sleeve (Ø 6, 8, 10 mm)
•
1× hex wrench
TECHNICAL SPECIFICATIONS
•
Material: aluminum alloy, steel
•
Drill-bit diameter: 6, 8, and 10 mm
•
Drill-bit length: 94, 112, and 120 mm
•
Drill-guide dimensions: 67 × 38 × 18 mm

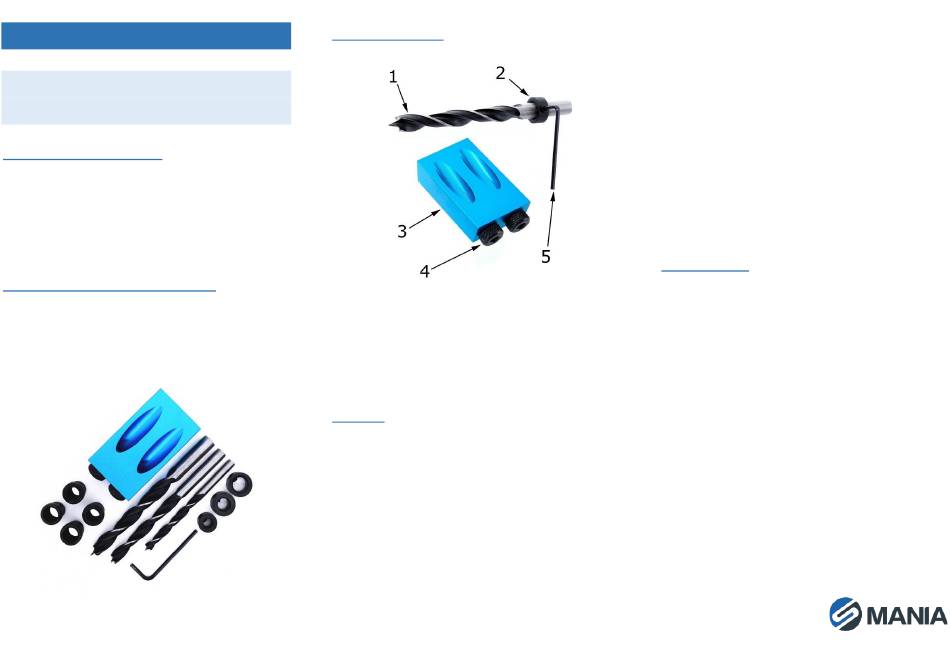

COMPONENTS
(1) Drill bit
(2) Stop collar
(3) Drill guide
(4) Sleeve
(5) Hex wrench
USAGE
•
Choose the required sleeves (4) for the hole
diameter you want to drill and screw them
on the drill guide (3).
•
Center the drill guide on the workpiece and
secure it with a clamp (not included).
•
Choose the required drill bit (1).
•
Determine the hole depth you want to drill
and position the stop collar (2)
bit's correct length. Use the included hex
wrench to tighten the stop collar.
•
Insert the drill bit into your power drill and
drill the pocket hole(s) until the stop collar
hits the metal sleeve on the top of the drill
guide.
•
For cleaner holes and easier drilling, do not
attempt to drill the entire depth with one
stroke. Instead, use short strokes until the
drill has reached its final depth.
•
Unclamp the drill guide from the workpiece.
•
The pocket holes allow you to insert screws
(not included) through the workpiece to
another board.
WARNINGS
•
Only use the products for their intended use.
•
Before use, consult the user manual and
follow all steps to ensure safe operation.
•
Make sure that the item is safely installed
and fastened before use.
•
Only use the products with a proper machine
or attachment (electric drill).
•
While using this item, make sure that others
are at a safe distance.
•
Keep your work area well-lit and clean.
•
Wear protective equipment during use
(protective gloves, mask, eye protection,
and ear protection) to ensure your safety.
•
For additional usage information, read your
drill's user manual.
at the drill
