Xtend Porch Setup Instructions

Download this manual

O U T D O O R S

INCLUDED IN KIT:

STEP 2

Slide the canopy into the sail track on the anti-flap kit.

ANTI-FLAP KIT

STEP 4

Measure out and extend the spreader bars to fit the awning canopy holes.

SPREADER BAR

www.xtendoutdoors.com.au

Ground Pegs

Spreader Bar

9ft Pole

C-Clip Rafter

Sprung Guy Ropes

Canopy

AWNING

CANOPY

Setup Instructions

Porch

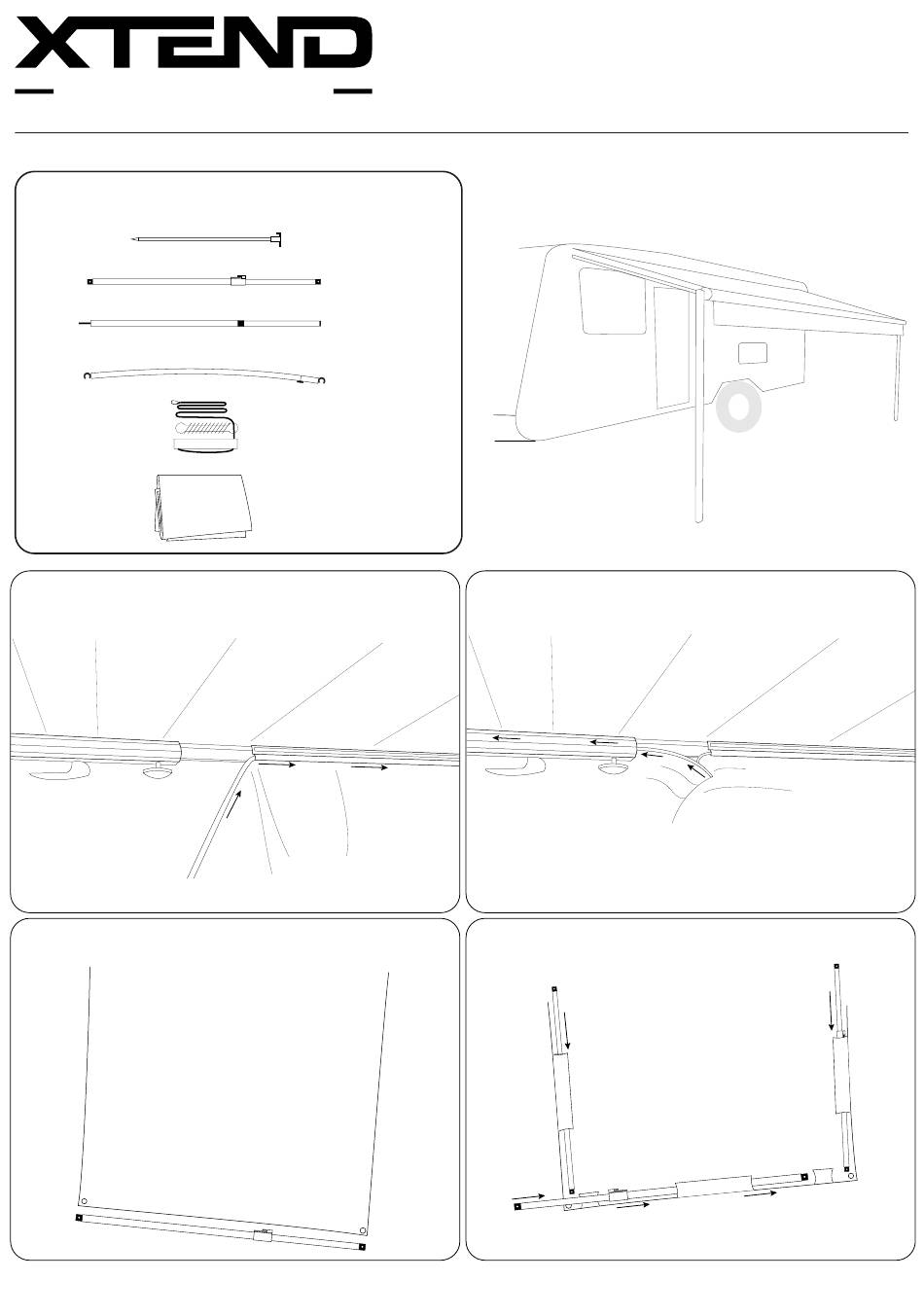

STEP 1

Fully extend your awning so the sail track groove in the

awning barrel is in the 3 o' c lock position and attach the anti-flap kit.

STEP 3

Feed the canopy into the sail track on the other side of the anti-flap kit.

ANTI-FLAP KIT

STEP 5

Feed the spreader bars (x3) into the pockets on the underside

of the canopy.

POCKETS

SPREADER BAR

1300 783 776

AWNING

CANOPY

POCKETS

Need help?

Do you have a question about the Porch and is the answer not in the manual?

Page 1 Setup Instructions Porch O U T D O O R S STEP 1 INCLUDED IN KIT: Fully extend your awning so the sail track groove in the awning barrel is in the 3 o’ c lock position and attach the anti-flap kit.
Page 2 STEP 8 STEP 9 Raise the porch and adjust the poles and spreader bars until all are tight. Secure the springs to the ground with pegs and attach rope loops over 9ft pole spigots on the top of your porch.
