Summary of Contents for JOSEF DAVIDSSONS Oden 6300

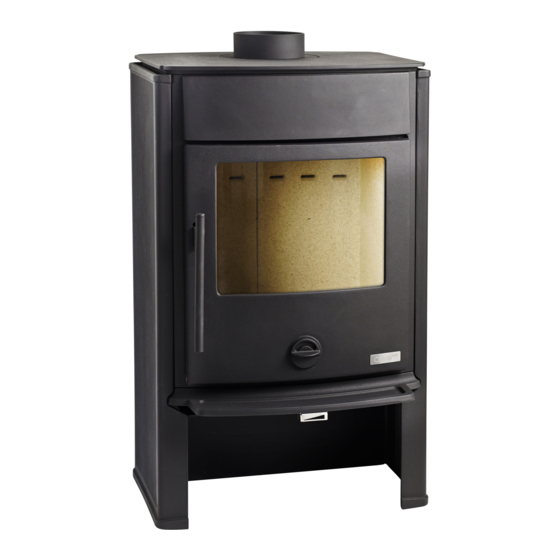

- Page 1 Oden 6300 Manual for installation and maintenance.
-
Page 2: Table Of Contents
Technical data What comes with the stove? Radiating stove dimensions and installation 6 – 7 Convection stove dimensions and installation 8 – 9 Soapstone stove dimensions and installation 10 – 11 Soapstone mounting 12 – 13 Connection of flues Connect stove to chimney Connect outdoor air to the stove Replaceable parts Maintenance advice... - Page 3 Welcome to the family. Congrats on your new stove! All of us at Josef Davidssons hope that you, like many other people around the country, will enjoy many, many wonderful moments around the fire. This manual contains instructions on how to install your oven as well as maintenance ad- vice and tips on the best way to light the fire.
-
Page 4: Technical Data
Professional mounting Heating surface (approx. m²) 30–80 The manual contains instructions on how to mount Efficiency (approx.%) and install the Oden 6300. To ensure the function and Weight (kg) safety of the stove, we recommend that installation Size (HxWxD mm) 855x485x400 Fireplace dimensions be carried out by a professional. -
Page 5: What Comes With The Stove
§15a Reading and obeying the operating DIN+ instructions/ BimschV. 1+2 Läs och följ eldningsinstruktioner i manualen Josef Davidssons Eftr. AB Jättevägen 1 333 75 REFTELE Sweden 1 Installation manual 5 Smoke cover Guide to installation and maintenance of your stove. -
Page 6: Radiating Stove Dimensions
RADIATING STOVE DIMENSIONS AND INSTALLATION Radiating stove Here are the most important dimensions required for proper installation and optimal operation. All measurements are indicated in millimetres. Strålningskamin Strålningskamin Primary air damper Air supply damper 242,5 242,5 Strålningskamin Strålningskamin 242,5 242,5 242,5 242,5 242,5... - Page 7 Strålningskamin Strålningskamin Strålningskamin Strålningskamin Brännbar vägg Brännbar vägg Installation distance Brännbar vägg 100 mm 100 mm 100 mm Be aware of the safe installation distance, combustible wall Brännbar vägg regardless of whether you place the stove next to a 100 mm flammable wall or an inflammable wall.
-
Page 8: Convection Stove Dimensions
CONVECTION STOVE DIMENSIONS AND INSTALLATION Here are the most important dimensions required for proper installation and optimal operation. All measurements are indicated in millimetres. Strålningskamin Konvektionskamin Primary air damper Air supply damper 242,5 242,5 Konvektionskamin Konvektionskamin till till u *Outdoor air connection. Connectors for outdoor air Ø 50 mm. Keep in mind that the outer hearth (floor protection) adds to the height of the stove and its rear connection. - Page 9 Konvektionskamin Konvektionskamin Konvektionskamin Konvektionskamin Brännbar vägg 100 mm Brännbar vägg Installation distance 100 mm Brännbar vägg 100 mm Be aware of the safe installation distance, combustible wall Brännbar vägg regardless of whether you place the stove next to a 100 mm flammable wall or an inflammable wall.
-
Page 10: Soapstone Stove Dimensions
SOAPSTONESTOVE DIMENSIONS AND INSTALLATION Here are the most important dimensions required for proper installation and optimal operation. All measurements are indicated in millimetres. Strålningskamin Täljstenskamin Primary air damper 915 835 Air supply damper 242,5 242,5 Täljstenskamin Täljstenskamin 307,5 307,5 915 835 915 835 Utel Anslu... - Page 11 Täljstenskamin Täljstenskamin Täljstenskamin Täljstenskamin Brännbar vägg 100 mm Brännbar vägg Installation distance Brännbar vägg 100 mm 100 mm Be aware of the safe installation distance, Brännbar vägg combustible wall regardless of whether you place the stove next to a 100 mm flammable wall or an inflammable wall.
-
Page 12: Soapstone Mounting
MOUNTING THE SOAPSTONE Soapstone legs x 2 Bottom plate x 1 Top plate x 1 Screw x 2 Pin x 8 Fireplace x 1 Soapstone sides x 2 Soapstone top x 1 Covering plate outdoor air x 1 Begin by placing the outer hearth Put the bottom frame in place. - Page 13 Place the stove on the bottom stones, in the centre Mount the side stones according to placement of the of the plate. pins. Place the top frame above the side stones. F = front. R = rear. Carefully knock the steering pins Don’t rest the fireplace on the frame, put it directly with the hammer until they reach the bottom.
-
Page 14: Connection Of Flues
CONNECTION OF FLUES Oden can be connected behind or above. Smoke connectors and smoke cover are packed inside the stove’s fireplace. If you use the top connection, fasten the smoke cover at the back. If you use the rear connection, fasten the smoke connector at the back of the stove and push away the covering lid in the back radiator panel. -
Page 15: Connect Stove To Chimney
CONNECT STOVE TO CHIMNEY The stove meets the requirements for connection to a A flue with narrow bends and horizontal draught chimney designed for 350°C smoke temperature. reduces the draught in the chimney. The maximum horizontal flue is 1 mm, provided that the vertical flue The diameter of the connectors is 125 mm on the length is at least 5 m. - Page 16 CONNECT OUTDOOR AIR TO THE STOVE For optimal function, the fireplace needs around 20 wall, others go down into the floor and then out m3 air per hour. If you have mechanical ventilation through the foundations. If you use the foundations, in your house, you should connect outdoor air to it’s important that the air supply pipe is insulated to your stove.
-
Page 17: Replaceable Parts
REPLACEABLE PARTS The Oden is built to be used for decades to come, but do not forget to replace worn components when necessary. Keep an eye on the vermiculite plates, fire limiter as well as grates and replace them when they become worn. -
Page 18: Maintenance Advice
MAINTENANCE ADVICE Combustibles The best heat value is obtained from split birch wood. The grid should be shaken and cleaned from ashes Hardwood trees generally burn more calmly than regularly. softwood, which creates a more even heat. Empty the ash pan as soon as it is full. If you are burning oak, beech or other wood with high heat value, always mix the wood with other types of After using the fire for some time, some soot may... -
Page 19: Problem Solving
FIRE-LIGHTING PROBLEMS AND SOLUTIONS Poor draught • The connection to the chimneystack has not been properly sealed. Ask the chimney sweep to check the connection between the stove and the chimney is completely sealed. • The flue pipe is clogged. Clean the flue pipe and combustion chamber. •... -
Page 20: Warranty Certificate
Warranty Terms Josef Davidssons Eftr AB is responsible for ensuring that the products are not defective in any way that can be attributed to manufacturing or storage at the factory. The warranty is valid from the date of delivery to the customer. - Page 24 CUSTOMER SERVICE & CONTACT Our customer service can offer you personal help and answer your questions. Contact us by telephone or email. Josef Davidssons, Jättevägen 1, 333 75 Reftele Tel: +46 371 – 200 01 info@josefdavidssons.se josefdavidssons.se/en...
