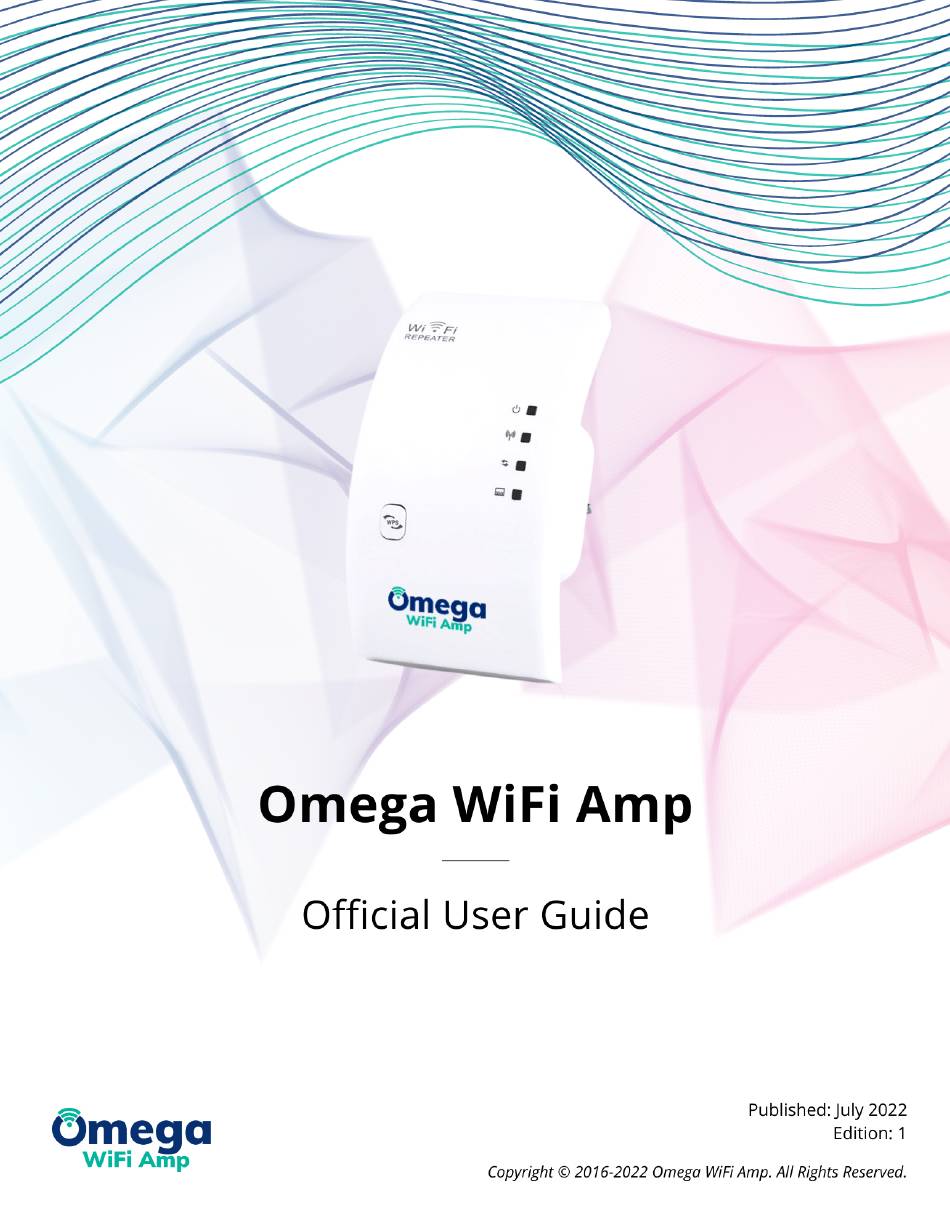

Omega WiFi Amp Official User Manual
  1. Manuals
  2. Brands
  3. Omega Manuals
  4. Amplifier
  5. WiFi Amp
  6. Official user manual

Omega WiFi Amp Official User Manual

Hide thumbs Also See for WiFi Amp:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading

Related Manuals for Omega WiFi Amp

Summary of Contents for Omega WiFi Amp

  • Page 2: Table Of Contents

    Table of Contents Omega WiFi Amp – Overview ..................1 Quick Start Guide: Connecting and Using the Omega WiFi Amp ........3 Getting Started with the Omega WiFi Amp..............7 Configuring the Omega WiFi Amp ................9 Configuring the Omega WiFi Amp Wirelessly ............. 10 Configuring the Omega WiFi Amp with Rj45 Cable ............

  • Page 3: Omega Wifi Amp - Overview

    11b/g and 11n wireless protocol products. NOTE: If you need to reset the Omega WiFi Amp, you need to press and hold the reset button inside the tiny hole for 10 seconds until all LED indicators re-flash.
  • Page 4 Omega WiFi Amp - Official User Guide - 1_en NOTE: Before using the Omega WiFi Amp, please check if there’s anything missing in the package, and contact your dealer of purchase to claim for missing items WEEE Directive & Product Disposal At the end of its serviceable life, this product should not be treated as household or general waste.

  • Page 5: Quick Start Guide: Connecting And Using The Omega Wifi Amp

    **If you cannot load the management page on your browser, please hold the reset button for 5-8 seconds until all LED indicators re-flash, then remove the Omega WiFi Amp from the power socket and retry steps A1 to A3 again.
  • Page 6 Omega WiFi Amp - Official User Guide - 1_en Step 5. After logging into the management page, please select the Repeater mode by clicking on the ‘Repeater’ button. Step 6. Select your current wireless router SSID to continue. *If you can not find your WiFi router, please refresh the page and try again.
  • Page 7 Omega WiFi Amp - Official User Guide - 1_en Click on the ‘Apply’ button. Wait for a few seconds as the Omega WiFi Amp restarts. Once the unit has turned back on, it is ready for use. *We suggest that your current WiFi Security Key should not include strange symbols such as $ *&...
  • Page 8 Omega WiFi Amp - Official User Guide - 1_en Page 6 of 27...

  • Page 9: Getting Started With The Omega Wifi Amp

    Wireless Repeater Mode: You will need WiFi Ap/Router Internet access In the wireless repeater mode, the Omega WiFi Amp will expand the wifi coverage of your current wifi network and enhance the strength of the wifi signal. No wired connection is required to your Router or broadband, extending the WiFi signal wirelessly.
  • Page 10 You will need Broadband Router Internet access Connect the Omega WiFi Amp to the wired broadband interface (or wired router at home) with the included RJ45 network cable. You will create a new WiFi hot spot and full WiFi coverage in your home.

  • Page 11: Configuring The Omega Wifi Amp

    Configuring the Omega WiFi Amp How to Configure the Omega WiFi Amp You can configure the Omega WiFi Amp via RJ45 network cable (included) or wirelessly on your PC or laptop. First, decide how you would like to set up your Omega WiFi Amp: A.

  • Page 12: Configuring The Omega Wifi Amp Wirelessly

    **If you cannot load the management page on your browser, please hold the reset button for 5-8 seconds until all LED indicators re-flash, then remove the Omega WiFi Amp from the power socket and retry steps A1 to A3 again.
  • Page 13 Omega WiFi Amp - Official User Guide - 1_en Step 5. After logging into the management page, please select the Repeater mode by clicking on the ‘Repeater’ button. Step 6. Select your current wireless router SSID to continue. *If you can not find your WiFi router, please refresh the page and try again.
  • Page 14 Omega WiFi Amp - Official User Guide - 1_en Click on the ‘Apply’ button. Wait for a few seconds as the Omega WiFi Amp restarts. Once the unit has turned back on, it is ready for use. *We suggest that your current WiFi Security Key should not include strange symbols such as $ *&...

  • Page 15: Configuring The Omega Wifi Amp With Rj45 Cable

    Configuring the Omega WiFi Amp with Rj45 Cable Step 1. Plug the Omega WiFi Amp into an available wall socket and connect it to your PC/ Laptop via included RJ45 network cable. Step 2. Follow process A3 to A8 to configure your Wi-Fi Repeater Step 3.
  • Page 16 Step 7. When you get the page below, please do NOT change the repeater SSID. Simply input your current WiFi security key and continue. Click on the ‘Apply’ button. Wait for a few seconds as the Omega WiFi Amp restarts. Once the unit has turned back on, it is ready for use.
  • Page 17 If you want to log into the Management Page again, please hold the ‘Reset’ button for 8-10 seconds to make all settings revert to Factory Default Settings. Once the unit has reset, reconfigure the Omega WiFi Amp again. Page 15 of 27...

  • Page 18: Configure The Omega Wifi Amp Via Wireless Ap Mode

    _**If you cannot load the management page on your browser, please hold the reset button for 5-8 seconds until all LED indicators re-flash, then remove the Omega WiFi Amp from the power socket and retry steps A1 to A3 again.
  • Page 19 Step 6. Click the ‘Apply’ button and the Omega WiFi Amp will begin to restart. Step 7. AP mode configured successfully! Please connect your Omega WiFi Amp to your router via Rj45 Cable, as AP mode is ready for use.
  • Page 20 Omega WiFi Amp - Official User Guide - 1_en Page again, please hold the ‘Reset’ button for 8-10 seconds to make all settings revert to Factory Default Settings. Once the unit has reset, reconfigure the Omega WiFi Amp again. Page 18 of 27...

  • Page 21: Configuring Your Computer/Laptop

    Omega WiFi Amp - Official User Guide - 1_en Configuring Your Computer/Laptop How to Configure Your Computer/Laptop You can configure your computer or laptop via Network IP Address or Web Browser First, decide how you would like to set up your computer or laptop: A.

  • Page 22: Configuring Your Computer/Laptop Via Network Ip Address

    Step 3. To set the IP address manually, Type the following IP address: 192.168.10.x (x is from 2 to 254), and the following Subnet Mask: 255.255.255.0. • Next, type the Omega WiFi Amp’s LAN IP address (the default IP is 192.168.10.1) into the Default Gateway field.
  • Page 23 Omega WiFi Amp - Official User Guide - 1_en Step 4. The Network IP Address is now fixed! Please connect to the Omega WiFi Amp and log into the Management Page via 192.168.10.1 *NOTE: Never forget to restore your PC IP address automatically after you finish setting up...

  • Page 24: Configuring Your Computer/Laptop Via Web Browser

    Security Key The password of your wireless network Step 2. Click the ‘Apply’ button and the Omega WiFi Amp will begin to restart. *We suggest that your current WiFi Security Key should not include strange symbols such as $ *& ^, as these might lead to a failed configuration. Characters and numbers are highly recommended.
  • Page 25 Security The password of your wireless network Step 2. Click ‘Apply‘ button and the Omega WiFi Amp will begin to restart *We suggest that your current WiFi Security Key should not include strange symbols such as $ *& ^, as these might lead to a failed configuration. Characters and numbers are highly recommended.

  • Page 26: Connecting Your Computer/Laptop Via Wpa Function

    WPS function. Step 1. Log onto your computer. Step 2. Press the WPS button on the Omega WiFi Unit for 2 – 3 seconds. Step 3. Click ‘Finish’ to complete the WPS configuration. Step 4. You should see icons for the computer you added and for the other computers and devices that are part of the network.

  • Page 27: Changing Your Password

    Changing Your Password How to Change Your Management Password The default password of the Omega WiFi Amp is “admin”, and it’s displayed on the login prompt when accessed from your web browser. IMPORTANT NOTE: There is a security risk if you don’t change the default password since anyone can see it.

  • Page 28: Upgrading The Omega Wifi Amp Firmware

    Upgrading the Omega WiFi Amp Firmware The system software used by the Omega WiFi Amp is called ‘Firmware’, and just like any other application on your computer, when you replace the old application with a new one, your computer will be equipped with a new function.

  • Page 29: Restoring Factory Default Settings

    Omega WiFi Amp - Official User Guide - 1_en Restoring Factory Default Settings For security purposes, you can back up all Omega WiFI amp settings to a file so that you can make several copies of your router configuration. To backup or restore router setting, please follow the following instructions: Step 1.
