Summary of Contents for Renova USX500-01

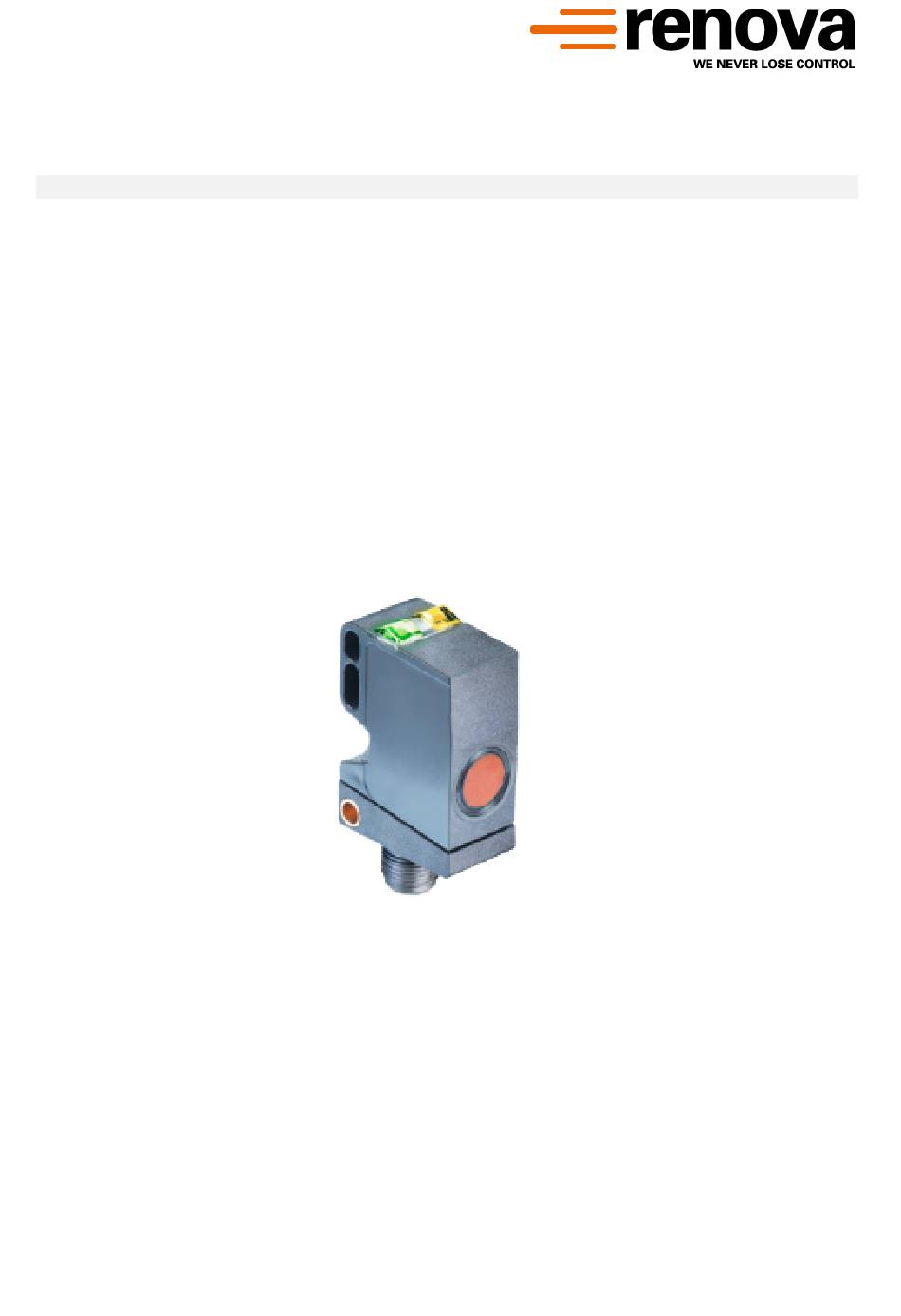

- Page 1 Sensore di diametro ad ultrasuoni Ultrasonic diameter sensor Manuale di montaggio e istruzioni d’uso Assembly manual and operating instructions ITA | ENG...
-
Page 2: Table Of Contents
english - index introduction …………………………………………………………….…….….. page 13 warnings …….…………………………………………………….…….…….…….. page 13 assistance .……………..………………………………..………..……………… page 13 description …………….…………………………………..………………………. page 14 model with IO-Link ….…………………………………………………………. page 15 alignment aid ………………….………………………..……………………….. page 15 assembly procedures ……………..…………………………………...……. page 16 wiring diagram …………………….……………………………………...……. page 17 Teach-In instruction for use ….……………………………………………. -
Page 3: Introduction
Assembly instructions: how to mount and where it is better to do it Instruction on how to use them Since the product and Renova itself are constantly changing in order to improve the quality and performance of our products, Renova reserves the right to update the manuals without obligation to update the products already marketed and / or any previous manuals. -
Page 4: Description

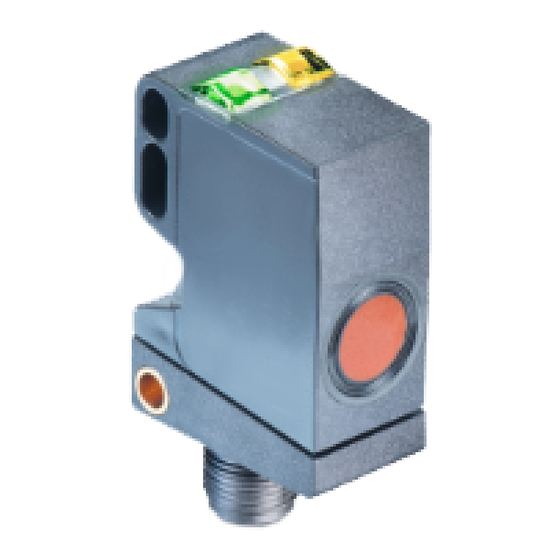

The Renova USX500-01 sensor, with its robustness and reading accuracy, is the best alternative in the field of diameter measurement. Our product offers the customer a large number of benefits: Maximum reliability and longevity of the process: robust and resistant thanks to the fact... -
Page 5: Model With Io-Link
Model with IO-Link SSC1 / 2/4: switching of signal channels MDC: distance value or counter switch (selectable) Quality: the quality bit signals a weak echo signal Alarm: the alarm bit signals a problem with sensor configuration or functionality Scale: power factor of ten, applicable to the Measurement Data Channel (MDC) value Available commands: learning commands, activation / deactivation of the sensor element, Find Me (Sensor location) and more. -
Page 6: Assembly Procedures
The assembly of the USX500-01 sensor does not require any passage. The operator is free to mount the sensor wherever he wants to have a reading. ATTENTION: In order to avoid staggered readings of the diameter, we do not recommend installing it vertically near the "exit"... -
Page 7: Wiring Diagram
connection diagram ATTENTION: Disconnect the power supply before mounting the sensor. Voltage supply according to UL 1310, Class 2 oR the device must be protected by an external R / C or by a listed fuse, max. nominal value 30 VAC / 3A or 24VDC / 4A... -
Page 8: Teach-In Instruction For Use
Teach-In instruction for use description Teach-in level 1 and 2 general information: - The qTeach function is deactivated 5min after the sensor is turned on. The blue LED goes out. - During the teach the output assumes a value equal to - During standard sensor operation, the remote Teach-in cable is at 0V - For remote Teach-In, connect the teach cable to +VS... -
Page 10: Index Of Manual Revision
Index of manual revision Rev. n. Rev. Date Description of the changes made note... - Page 12 Renova srl – viale Rimembranze 93 – 20099 Sesto San Giovanni (MI) Italy tel.: +39.02.2700.7394 – fax: +39.02.2570.8635 www.renova-srl.com – email: support@renova-srl.it...
