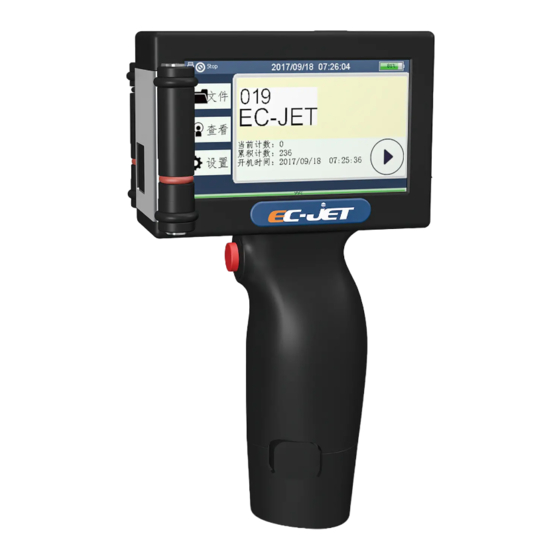

Guangzhou EC-PACK CO.LTD EC-JET High Resolution Inkjet Printer Handheld High Resolution Inkjet Printing System ECH200Pro Series User Manual User Manual ECH200Pro Series Rev 1.01... -
Page 2: Copyright Notice
Disclaimer Information of operation nature and particulars of the product and its use are given by EC-Pack in good faith. However, it is acknowledged that there may be errors or omissions in this manual. EC-Pack shall not be liable for any loss or damage arising from the use of any information, particulars or errors in this manual, or maintenance carried out by unauthorized personnel, or any incorrect use of the product, whatsoever. -
Page 3: Table Of Contents
Guangzhou EC-PACK CO.LTD EC-JET High Resolution Inkjet Printer Content User Manual ........................1 Copyright Notice ......................2 Disclaimer ........................2 About This Manual ......................2 1. Chapter 1 Introduction of EC-JET High Resolution Inkjet Printer ......4 Specifications .................... 4 Gentle Reminder .................. -
Page 4: Chapter 1 Introduction Of Ec-Jet High Resolution Inkjet Printer
Guangzhou EC-PACK CO.LTD EC-JET High Resolution Inkjet Printer Chapter 1 Introduction of EC-JET High Resolution Inkjet Printer Specifications Model：ECH200Pro Print lines: Arbitrary lines in the printing area ：0-12.7mm Print Height Support font ：Windows fonts Support message type: Text, LOGO, Linear Barcode, 2D Barcode, Time/Date, Sequential/Serial Number. -
Page 5: Gentle Reminder
Guangzhou EC-PACK CO.LTD EC-JET High Resolution Inkjet Printer Gentle Reminder This is precision equipment, do not attempt to dismantle unless you are fully trained. Please read and understand the operation manual before operating this printer. Please connect the printing system correctly, and check the instructions when wiring. -
Page 6: Chapter 2 Installation
Guangzhou EC-PACK CO.LTD EC-JET High Resolution Inkjet Printer Chapter 2 Installation External I/O： φ5 Power Port ： 24V Power Supply（30W） ： Standard USB Host. USB Port User Manual ECH200Pro Series Rev 1.01... -
Page 7: Chapter 3 Ech200Pro Printer User Interface
Guangzhou EC-PACK CO.LTD EC-JET High Resolution Inkjet Printer Chapter 3 ECH200Pro Printer User Interface User Interface Introduction Turn on the machine power switch, wait for about 30s machine boot into the main interface: Install EC Cartridge，System will recognize ink type automatically：... -
Page 8: Editing Message
Guangzhou EC-PACK CO.LTD EC-JET High Resolution Inkjet Printer 3.1.1 Editing Message Step 1：Click will lead to Message Selection interface: Step 2：Click will lead to Message Name inputting interface, and input the new message name: User Manual ECH200Pro Series Rev 1.01... - Page 9 Guangzhou EC-PACK CO.LTD EC-JET High Resolution Inkjet Printer Keyboard：ECH200Pro Preloaded with English and Chinese Keyboard, click switch between Chinese, English or other Keyboard, click for symbols and numeric, click for Capital Letter. Chinese Simplified PinYin Input is supported. click Enter after naming your message will lead to Message Editing Interface.
- Page 10 Guangzhou EC-PACK CO.LTD EC-JET High Resolution Inkjet Printer Click to enter into the message adding interface, the printing message can be added in this interface. Select the field type needed, user can add desire field type in message editing area.
- Page 11 Guangzhou EC-PACK CO.LTD EC-JET High Resolution Inkjet Printer Click or the click in the edit box, it will pop up keyboard interface to enter or alter your content. Click to change font attribute Click to change text position in the message, default value is (0,0), user can fine tune or adjust text location at the message editing interface.
- Page 12 Guangzhou EC-PACK CO.LTD EC-JET High Resolution Inkjet Printer You have successfully added a ‘Text’ field in printing message. Repeat this step for another Text field or other types of field which desire. Fields available are Text, Time/Date, Serial Number, Barcode, Logo.
- Page 13 Guangzhou EC-PACK CO.LTD EC-JET High Resolution Inkjet Printer Click then user can use the toolbar to edit, delete, paste or fine tune with direction key on the already added field in the printing message. It can also be dragged freely when the field is selected.
- Page 14 Guangzhou EC-PACK CO.LTD EC-JET High Resolution Inkjet Printer Click to edit an existing selected message. Click to change the name of the message. Click , printer will print selected message when starting to printing. When there are multiple files in the file list, you need to use it to select different printing messages. Click this button to execute the last edited test data.
- Page 15 Guangzhou EC-PACK CO.LTD EC-JET High Resolution Inkjet Printer Click , it can be seen that the system has executed the "new file" edited in the previous step. Click the editing message of printing and it can be previewed User Manual ECH200Pro Series...
-
Page 16: Main Interface Parameter
Guangzhou EC-PACK CO.LTD EC-JET High Resolution Inkjet Printer Click You can quickly enter the data editing interface to change the message. Main Interface Parameter Main interface parameter included Click the "Parameter" area to enter the cartridge parameter interface User Manual ECH200Pro Series... - Page 17 Guangzhou EC-PACK CO.LTD EC-JET High Resolution Inkjet Printer The counting information can be changed. Others are read-only options and cannot be edited. Click the "Consumables" area to enter the ink level detection interface: You can check the remaining ink level of each ink cartridge from this interface, which can only be User Manual ECH200Pro Series Rev 1.01...
-
Page 18: Printer Setting
Guangzhou EC-PACK CO.LTD EC-JET High Resolution Inkjet Printer read but not edited Click this option to display all the current ink cartridges printing message on the interface. You can see the ink volume information and the current printing time from this interface. When printing starts, the system will automatically calculate the approximate usable time. -
Page 19: Print Setup
Guangzhou EC-PACK CO.LTD EC-JET High Resolution Inkjet Printer 3.3.1 Print Setup Click to enter into the printing setup interface: User Manual ECH200Pro Series Rev 1.01... - Page 20 Guangzhou EC-PACK CO.LTD EC-JET High Resolution Inkjet Printer Printhead Setup You can change the printing direction according to the running direction of the production line by this interface Because the ink cartridge has two rows of nozzles, when one row of nozzles is damaged, the other row of nozzles can be used.
- Page 21 Guangzhou EC-PACK CO.LTD EC-JET High Resolution Inkjet Printer After clicking the "Electric Eye" option, there are three settings that can be adjusted. Click There are two options at the bottom left of the interface: "Triggered": The machine will print one time when the sensor is triggered one time.
- Page 22 Guangzhou EC-PACK CO.LTD EC-JET High Resolution Inkjet Printer Sensor wave filtering fuser-defined. Auxiliary sensor setup “Encoder setup” User Manual ECH200Pro Series Rev 1.01...
- Page 23 Guangzhou EC-PACK CO.LTD EC-JET High Resolution Inkjet Printer When the encoder is set to "forward or reverse", the pulse number (PPR) and the diameter of the encoder wheel (mm) should be input according to the parameters, and the system will calculate the width of the printing information accordingly, the width will not change with the change of production speed.
- Page 24 Guangzhou EC-PACK CO.LTD EC-JET High Resolution Inkjet Printer “Pre-cleaning the printhead” When the printing interval is longer and the air is relatively dry, the printing effect may be affected. In order to overcome this problem, the system will pre-flush the nozzles according to the ambient air level set in this menu to improve the printing effect.
-
Page 25: System Setup
Guangzhou EC-PACK CO.LTD EC-JET High Resolution Inkjet Printer 0 Off: There is no pre-flushing action, which is the default setting of the system. Level 1~5: Suitable for air dryness respectively, level 1 is non-drying, and level 5 is very dry. -
Page 26: Diagnostic Menu
Guangzhou EC-PACK CO.LTD EC-JET High Resolution Inkjet Printer "Communication": used to set the baud rate, IP address and number of the serial port; "System Information": used to view the system version and software upgrade information, please contact with your equipment supplier or manufacturer when the user needs to upgrade the software, it has risk of damaging the machine when upgrading the software. -
Page 27: Start Printing
Guangzhou EC-PACK CO.LTD EC-JET High Resolution Inkjet Printer Users can use U disk to back up machine data and parameters, or restore previous backup information or parameters, and format the disk. Warm Reminder: When formatting the disk, the system will delete all data information. - Page 28 Guangzhou EC-PACK CO.LTD EC-JET High Resolution Inkjet Printer User Manual ECH200Pro Series Rev 1.01...
-
Page 29: Chapter 4 Precaution
Guangzhou EC-PACK CO.LTD EC-JET High Resolution Inkjet Printer Chapter 4 Precaution Printer Precaution Prevent liquid (ink/water etc.) from contacting electronics part which may cause short circuit and printer failure. Printer must be electrically ground. Otherwise, it may cause problems such as poor... -
Page 30: Precautions For Battery Charging And Use
Guangzhou EC-PACK CO.LTD EC-JET High Resolution Inkjet Printer Precautions for battery charging and use 1. There are two ways to charge this printer: cradle charging (battery removal required) and direct charging (battery removal not required). It is forbidden to use any non-EC-JET charger to charge the battery. -
Page 31: Printhead Cleaning Method
Guangzhou EC-PACK CO.LTD EC-JET High Resolution Inkjet Printer Printhead Cleaning Method Fold the lint-free cloth/tissue at least 2 times (4 layers/plies) and lay flat on table. Hold the cartridge with printhead downwards, gently apply pressure and pull as shown in photo below. -
Page 32: Appendix Machine Dimensions
Guangzhou EC-PACK CO.LTD EC-JET High Resolution Inkjet Printer Appendix Machine Dimensions User Manual ECH200Pro Series Rev 1.01...
