Overview

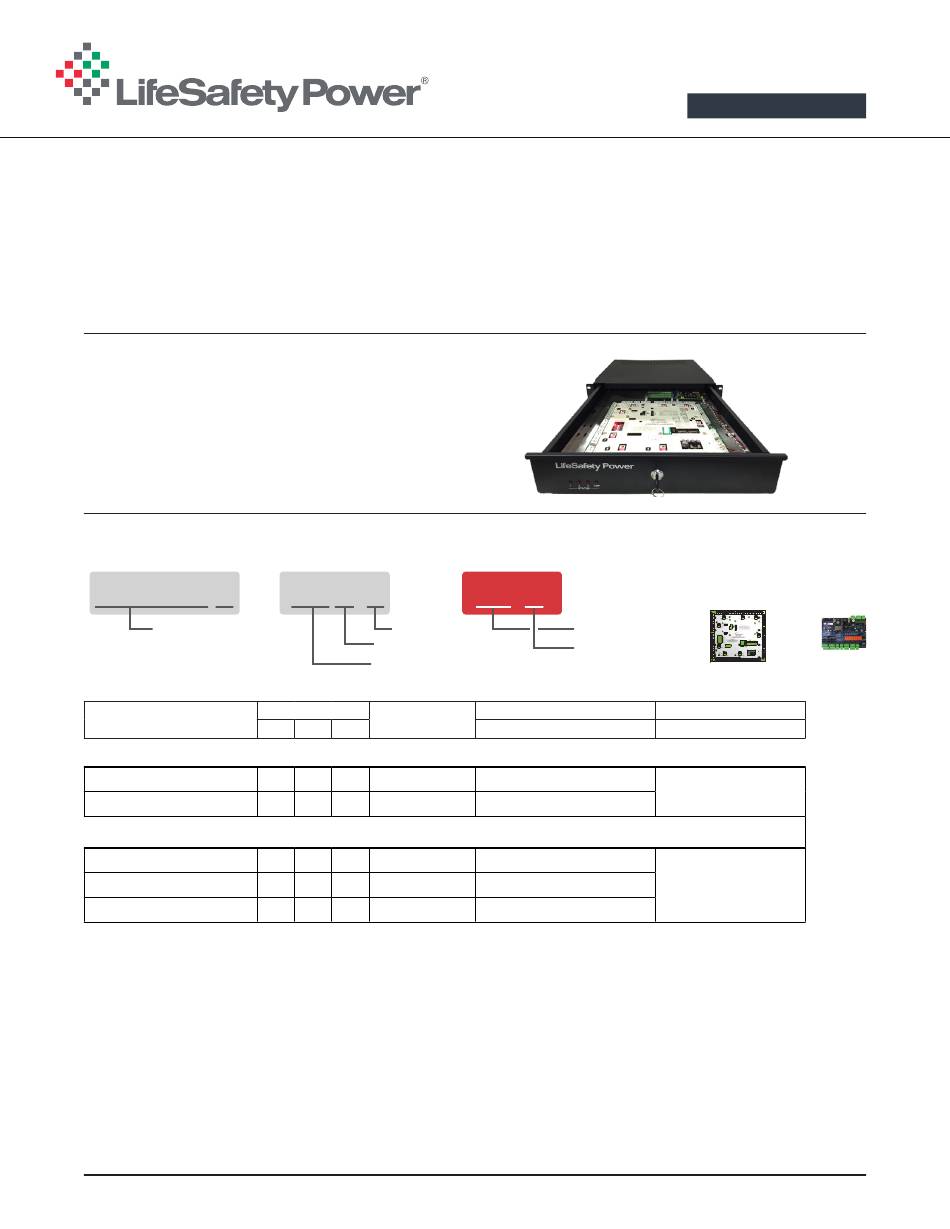

These ProWire Unified Power rack mount models are single and dual voltage access power systems, precision wired for M2150 or M4000 Series AMAG controllers.
ProWire enables the specification and installation of standardized access power equipment across an enterprise for uniform operation, maintenance and servicing.
The F8 egress output module provides eight outputs selectable for constant output, enable on FAI, or disable on FAI. Each output is selectable for either 12 or 24V in dual
voltage systems.
The D8 provides eight auxiliary outputs, individually selectable for 12 or 24V in dual voltage systems.
ProWire Unified Power rack drawers are painted steel with removable backplate, lock, keys and and tamper switch and come 100% factory tested – ready for
final panel installation and field wire termination.
Product Features
Š Guarantees uniform installations across an enterprise
Š Pre-installed wire harness for panel power, FAI drop,
faults and tamper switch
Š Point to point wiring; labeled, color coded, twisted pair,
shielded communication
Š Tie wrap cable management
Š Managed systems monitor power and batteries
Š UL294, ULC S319 listing
Model Nomenclature
RGA15 0
B –
Power rating
FPO150 4A/24V 100W lock power
B100 4A/12V 50W system power
*Model Number
Dual Voltage - 4A/12V and 4A/24V
RGA150B-D8Z/T8-A
RGA150B-F8Z/T8-A
Single Voltage - 12A/12V (6A/24V)
RGA150-D8Z/T8-A
RGA150-D8NZ/T8-A
RGA150-F8NZ/T8-A
*Model wiring option "T8-A" calls out A wired tie wrap. Modify model number to order other options, i.e., RGA150B-F8Z/T8-C (C wired tie wrap)
July 2022
Accessory Boards
F8
N
Z
/
Cable mgmt
Networked
Accessories
D8, F8, NL2
Model Wiring Options
System Type
T8-A
T8-C
T8-A
T8-C
Standard
T8-A
T8-C
Standard
T8-A
T8-C
Standard
T8-A
T8-C
Networked
T8-A
T8-C
Networked
Rack Drawer
Wiring Option
T8-A
T Tie Wrap 8DR
A 8DBC
C M4000
Distributed Outputs
Auxiliary and Control
8 Auxiliary
8 FAI drop
8 auxiliary
8 auxiliary
8 FAI drop
1/2
P R O W I R E
AMAG 8DR Rack
A
C
8DBC
M4000
Enclosure / Cable Mgmt
H x W x D (inches)
R2U
19" rack drawer
Tie Wrap
R2U
19" rack drawer
Tie Wrap
