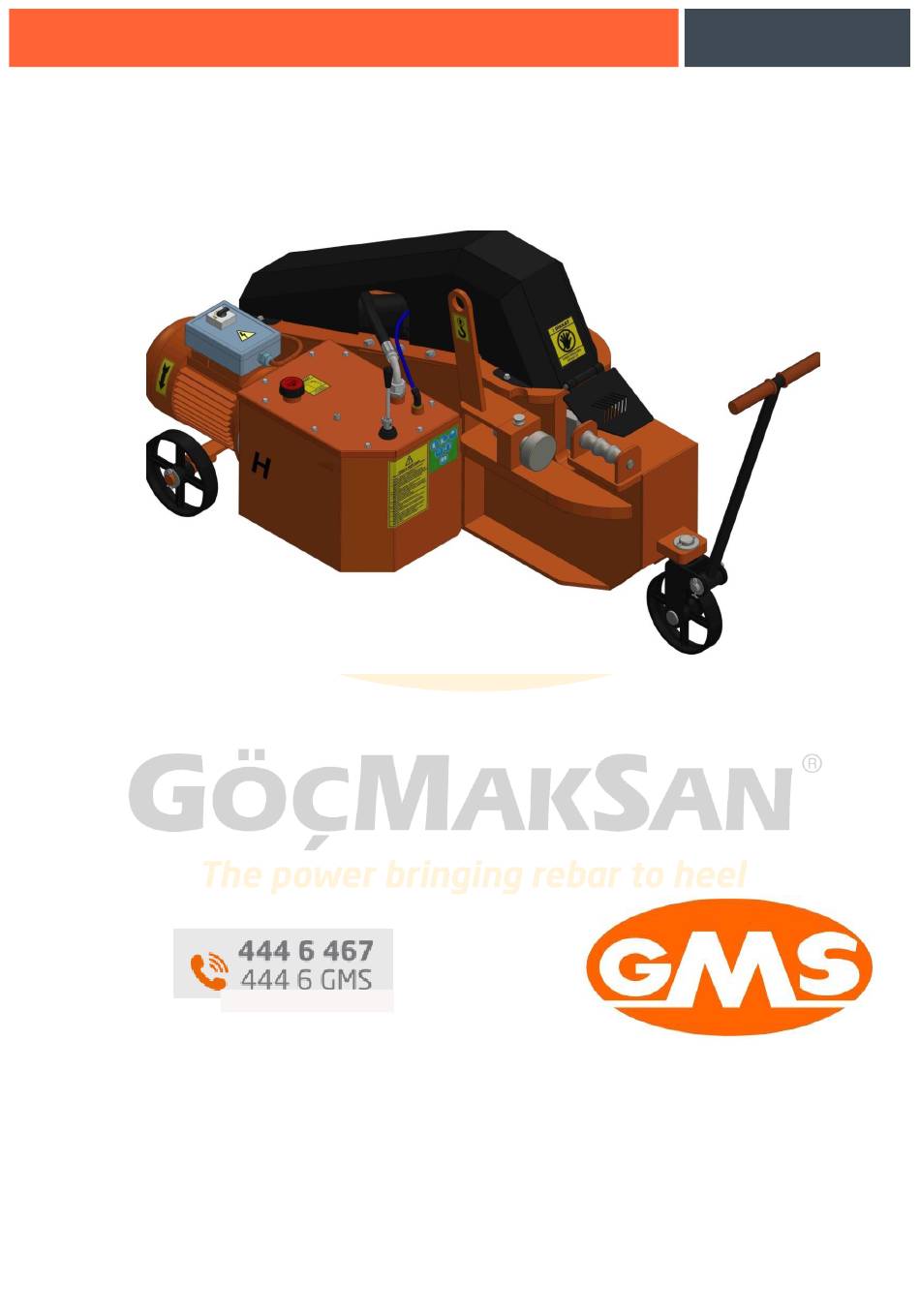

- Page 1 GMS HYDRAULIC CUTTING MACHINE ÖÇ USER MANUAL H SERIES HYDRAULIC REBAR CUTTING MACHINE USER'S AND MAINTENANCE MANUAL info@gocmaksan.com Rev:01/2013...
-
Page 2: Table Of Contents
ÖÇ GMS HYDRAULIC CUTTING MACHINE CONTENTS 1.1.Main Parts of Bending Machine 1.INTRODUCTION ............... 1 1.1.Main Parts of Bending Machine ........... 1 2.MACHINE ASSEMBLY............... 1 3. MACHINE WORKS ..............1 3.1.Thermal flow setting range and motor protection switch ..................... 1 4.TECHNICAL DATA ..............1 5. -
Page 3: Main Parts Of Bending Machine
ÖÇ GMS HYDRAULIC CUTTING MACHINE Rotation direction is approved by taking the front of the machine as reference (Control pane side) the clockwise as right and counter-clockwise as left. If the machine is rotating reverse of the switch it means phases of the electricity supply are feeding reversely. -
Page 4: Incorrect Placement Of The Irons To Bu Cut On The Machine
ÖÇ GMS HYDRAULIC CUTTING MACHINE 6. PROHIBITED USAGE ON THE MACHINE No cutting should be made without closing the tool cutter shield. Cutter replacement shouldn't be made without stopping the machine and turning the electricity system during machine check The right position of the cutting machine in more than 1 maintenance. -
Page 5: Maintenance And Lubrication Instructions
ÖÇ GMS HYDRAULIC CUTTING MACHINE Long hair, dress with long arms, bracelet, uniform with long FAULT 2: If bending disk turning continuously skirt, any ornament leaning out. DESCRIPTION SOLUTION 8. MAINTENANCE AND LUBRICATION Sensor might be broken down Check whether the sensor is INSTRUCTIONS working or not, if it is out of order replace it. -
Page 6: Safety
ÖÇ GMS HYDRAULIC CUTTING MACHINE Electricity Board Cap might be open or haven't been closed completel 10. SAFETY This symbol is put before the articles giving warning explanations in order to draw attention of the trained operator to important functions. €...
