DINSHARE JC-303 User Manual

Li-ion reciprocating saw

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

Model No.

JC-303

Table of Contents

Need help?

Do you have a question about the JC-303 and is the answer not in the manual?

Questions and answers

Summary of Contents for DINSHARE JC-303

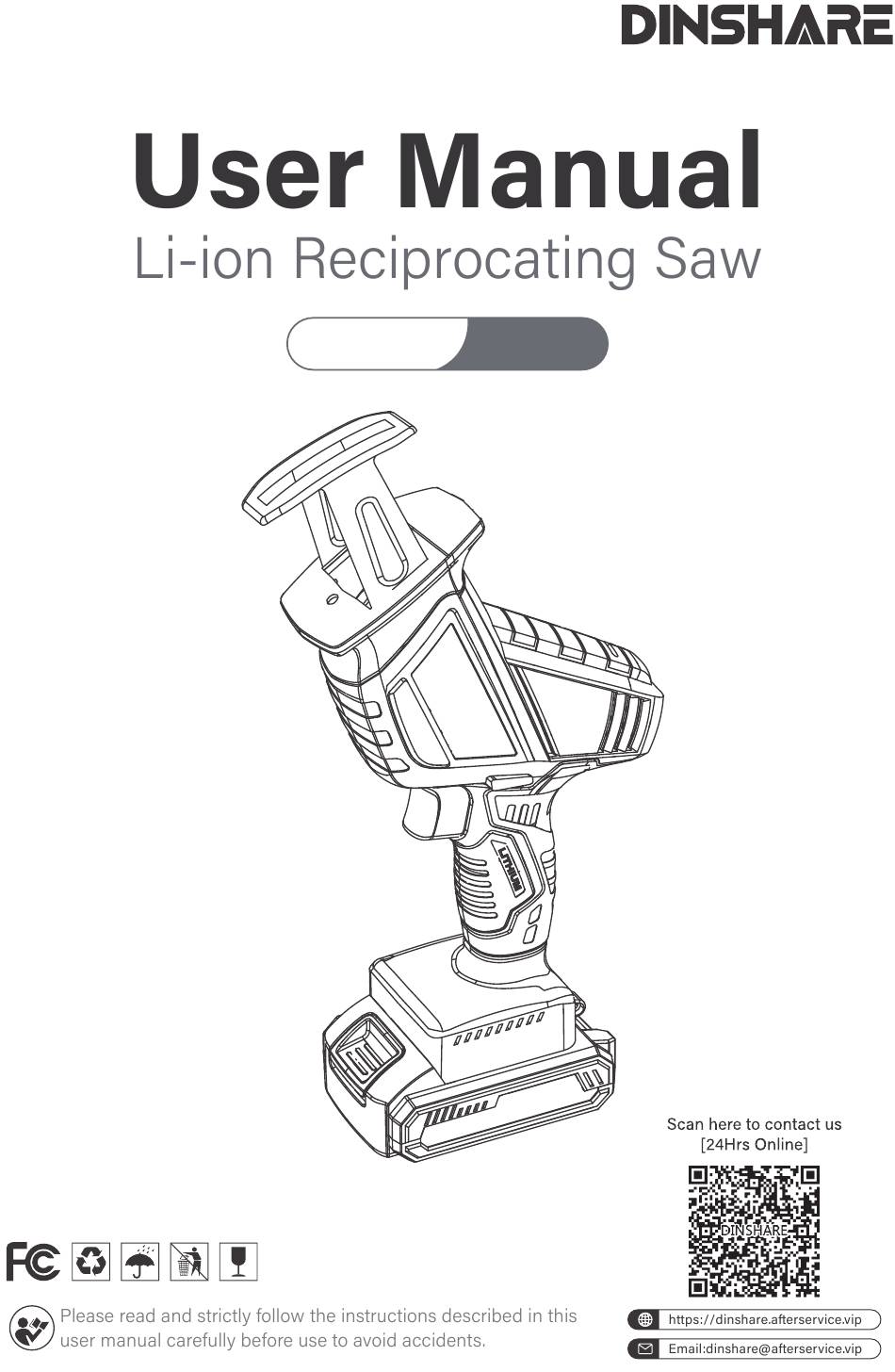

Page 1 Model No. JC-303...
Page 2: Table Of Contents
Contents Before Use ---------------------------------------------------------------------- Safety Precautions ----------------------------------------------------------- Packing List -------------------------------------------------------------------- Product Overview ----------------------------------------------------------- Assembly & Disassembly Descriptions ------------------------------- -------------------------------------------------------------- Operation Guide 1. Sawing ---------------------------------------------------------------------- 2. Plunge Cutting ------------------------------------------------------------ 3. Flush Sawing -------------------------------------------------------------- About Charging --------------------------------------------------------------- ------------------------------------------------------- Product Maintenance 1. About Cleaning ----------------------------------------------------------- ----------------------------------------------------------------- 2.
Page 3: Before Use
Before Use Please read carefully and understand thoroughly the instructions described in this user manual before operation. Users should be familiar with the product functions and basic operation methods. Use the product in accordance with the instructions to ensure that it works properly.
Page 4: Safety Precautions
Safety Precautions The product should not be exposed to moisture or used in a humid environment. Do not use the product to saw materials containing asbestos. Hold the product with the insulating surface. When cutting materials that contain a hidden wire, the cutting part may build an electric current with the live wire, which can cause the metal parts of the product to be charged, thereby, leading to an electric shock to the user.
Page 5: Packing List
Packing List NOTE: Check the product and components carefully when unpacking the box to see if there is anything missing, loose or damaged during transpor- tation. 1* Reciprocating Saw 6* Saw Blades 1* Charger 1* User Manual Product Overview Cutting Saw Blade Slot Knob LED Light Battery Indicator...
Page 6: Assembly & Disassembly Descriptions
Assembly & Disassembly Descriptions Knob 1. Assembling the Saw Blade Step 1. Rotate the knob to the far left. Step 2. Place the saw blade into the slot correctly. Step 3. Release the knob. NOTES: Check if there is any material or debris (such as wood chips or metal fragments,) in the saw blade slot when replacing the saw blade, which should be all cleared out before replacing the saw blade.
Page 7: Plunge Cutting
For the material with a curved surface, it is best to use a narrow saw blade. Sawing along the cutting line when sawing metal materials with a coolant and lubricant. If necessary, before sawing, inspect and remove foreign objects (nails, screws, etc.), chips from wood or particleboard, building materials, etc.
Page 8: About Charging
About Charging Press and hold the battery release button to remove the battery pack from the product. Insert the output end of the charger into the upper charging port on the battery pack and plug another end of the charger into the power supply.
Page 9: Lubrication
To assure the product safety and reliability, repairs, maintenance and adjustment (including blade inspection and replacement) should be performed by a DINSHARE factory service center regularly. 4. Malfunction If the parts are worn out, please contact the service center immediately to solve the problems.
Page 10: Product Specifications
Product Speciﬁcations Li-ion Reciprocating Saw Product Name Chainsaw Length 0.6 inch (15mm) Maximum Wood Cutting Depth 3.9 inches (100mm) Maximum Plastic Cutting Depth 3.9 inches (100mm) Maximum Metal Cutting Depth 0.07 inch (2mm) Weight 3.0lbs (1.4 kg) Lithium Battery Voltage Input Voltage 220V~50Hz Rated Power...
Page 11: Vibration Standard
Vibration Standard The vibration standard of the product complies with the standard test values given in EN60745. This test value can be used as a standard for comparison between products and as a preliminary evaluation criterion for contact vibration of the product during use. If the product is used for other functions (the functions that are not indicated in the user manual) or with other diﬀerent and inferior accessories, it will increase the degree of contact friction of the product.
Page 12: Disposal Of The Packaging
cover the battery pack with heavy-duty adhesive tape to prevent short circuit and energy discharge. Do not attempt to open or remove any of the components. 3. Disposal of the Packaging The packaging consists of cardboard and correspondingly marked plastics that can be recycled.
Page 13: Limited Warranty
("Warranty Period"), subject to certain exceptions. This warranty does not apply to damage from repairs made or attempt- ed by anyone other than DINSHARE, misuse, alterations, abuse, lack of maintenance, or accidents. The Li-ion reciprocating saw needs periodic parts replacement and service to achieve the best performance.
Page 14 Contact Us If you have any questions or need any help, please feel free to contact us via the email address: dinshare@afterservice.vip...
