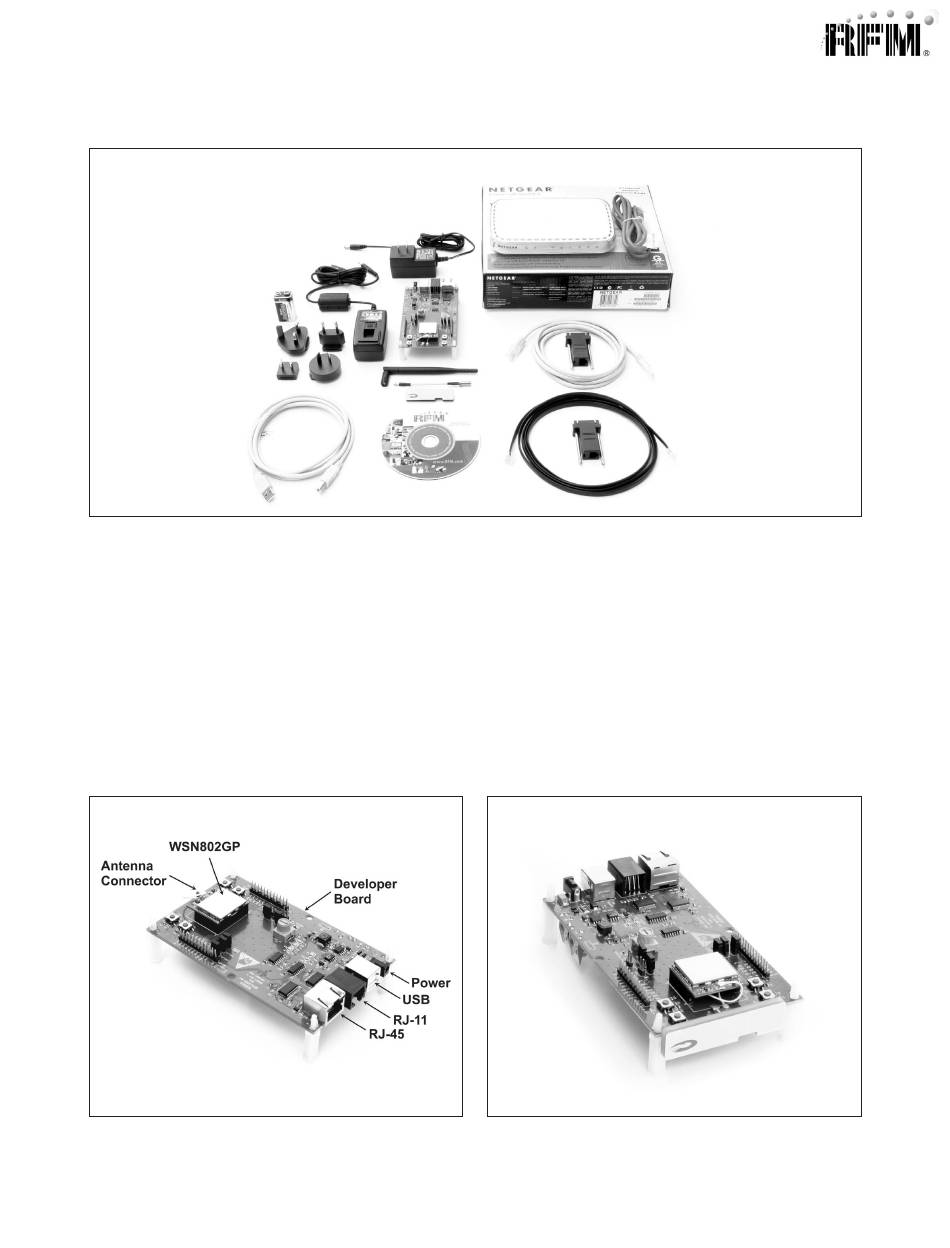

WSN802GDK Quick Start Guide
Items Supplied in the Kit:
·
One WSN802GP transceiver module installed in a developer board with one U.FL jumper cable
·
One patch antenna and one dipole antenna with MMCX to SMA-R adaptor cable
·
One 9 V wall-plug power supply, 120/240 VAC, for developer board power
·
One RJ-45/DB-9F cable assembly, one RJ-11/DB-9F cable assembly and one A/B USB cable
·
One NETGEAR WGR614 Wireless-G Router with wall-plug power supply and Ethernet cable
·
One WSN802GDK documentation and software CD
Additional Items Needed:
·
One PC with Microsoft Windows XP or Vista Operating System. A PC with WiFi is preferred.
Figure 1
RFM module technical support: tech_sup@rfm.com, Phone +1.678.684.2000, FAX +1.678.684.2001, www.RFM.com
Figure 2
Advertisement
Table of Contents
Summary of Contents for RFM WSN802GDK
- Page 1 One WSN802GDK documentation and software CD Additional Items Needed: · One PC with Microsoft Windows XP or Vista Operating System. A PC with WiFi is preferred. Figure 1 Figure 2 RFM module technical support: tech_sup@rfm.com, Phone +1.678.684.2000, FAX +1.678.684.2001, www.RFM.com...
- Page 2 Note: the NETGEAR WGR614 router has been preconfigured for use with the WSN802GDK developer’s kit. Do not reconfigure the router. 1. Observe ESD precautions when handling the WSN802GDK developer board. Install an AC plug on the 9 V developer board power supply. Plug the power supply cable into the developer board power connector.
- Page 3 Pot (ADC0) chart, as shown in Figure 5. The developer kit is now ready for use. Figure 5 9. If any difficulty is encountered in setting up your kit, contact RFM’s module technical support group. The phone number is +1.678.684.2000. Phone support is available from 08.30 AM to 5:30 PM US Eastern Time Zone, Monday through Friday.
