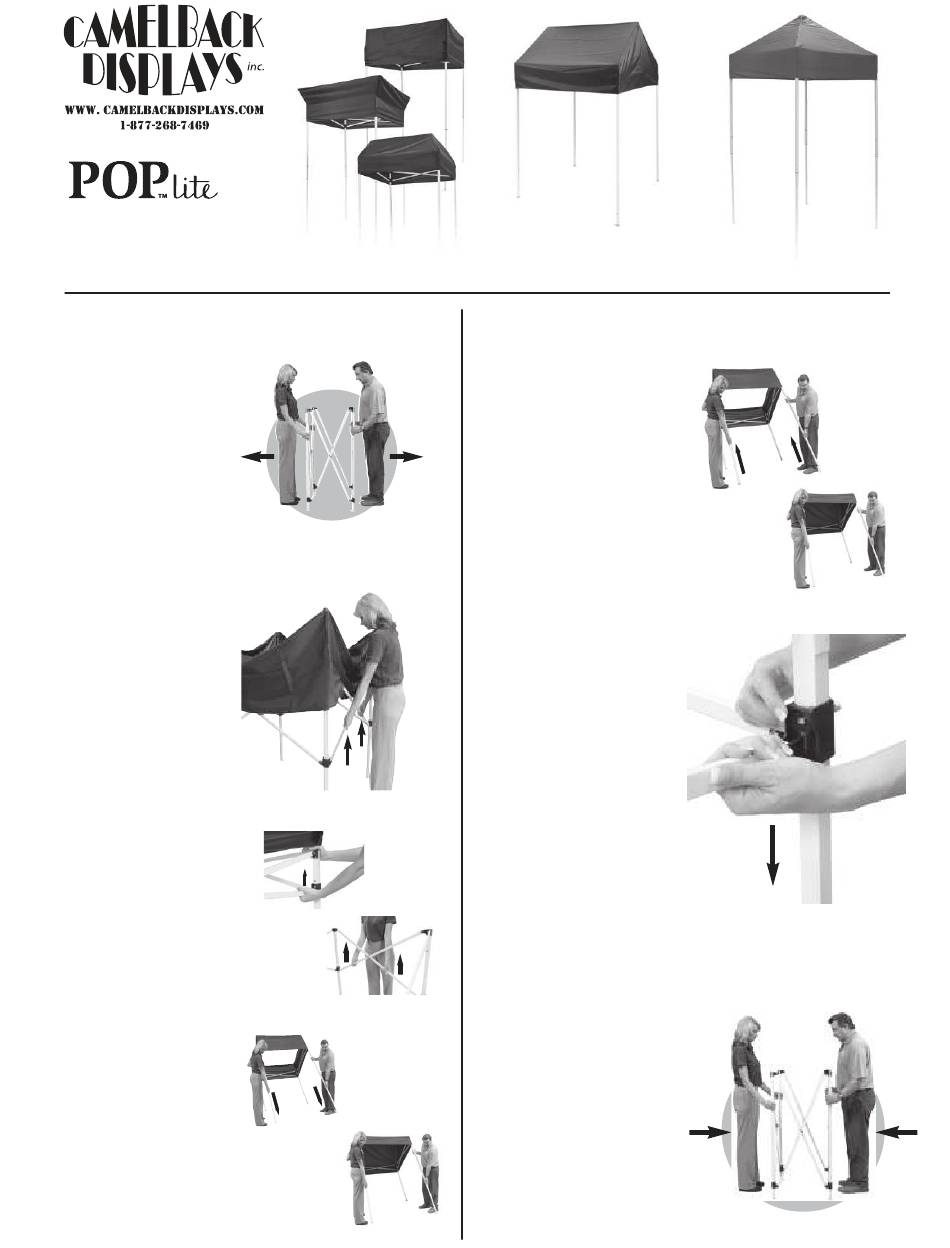

CAMELBACK Displays POP lite Assembly Instructions

Take time to learn how to provide years of
durable and safe use from your E-Z UP
professional product. After reading these
instructions carefully, if you have any need
of assistance, call our POP lite™ Customer
How to set-up frame
1.
Place your frame in the
center of area to be used.
With partner on opposite
side, grasp two outer legs,
slightly lift off the ground,
and step backwards, stop-
ping approximately 1/2 its
total size.
2.
Assemble top according to your POP lite top specifica-
tions. See Top Assembly Instructions.
3.
Grasp the bottom of
the trusses on opposite
sides. Lift up and step
backwar ds until shelter is
fully opened, being care-
ful not to pinch fingers.
( kiosk top shown )
4.
Engage the Auto
Slide r ® at each cor ner.
With one hand hold the
cap on the top of the leg,
push up on the slider with
the other hand. The snap
button will engage in the
hole.
Repeat on all corners.
5.
Lift the two adjacent
outer legs and slide out
the inner legs until the
snap button locks into the
hole in the outer leg.
Repeat on the opposite
legs - make sure to lower
two legs at a time.
( kiosk top shown )
4' x 4'
Kiosk / Marquee / Half-Peak
How to take it down
1.
depress snap buttons
and telescope inner
legs into outer legs.
Repeat on the opposite
legs - making sure to do
two legs at a time.
2.
Slider
With one hand pull
down on the truss near
the slider and depress
the snap button. Repeat
on all corners.
3.
4.
opposite side, grasp
two outer legs, slightly
lift off the ground, and
step forwards. Be care-
ful not to pinch fingers.
4' x 4'
Gable Top Assembly
With a partner,
Disengage the Auto
® at each corner.
Remove top fabric and peak hardware.
W ith partner on
4' x 4'
Peak Top Assembly
