fmGenie Tx & MicroMLxS/MLxS
Fast Track Guide
This Fast Track Guide takes you through the basic steps required to
get an fmGenie transmitter working with a Phonak MLxS receiver.

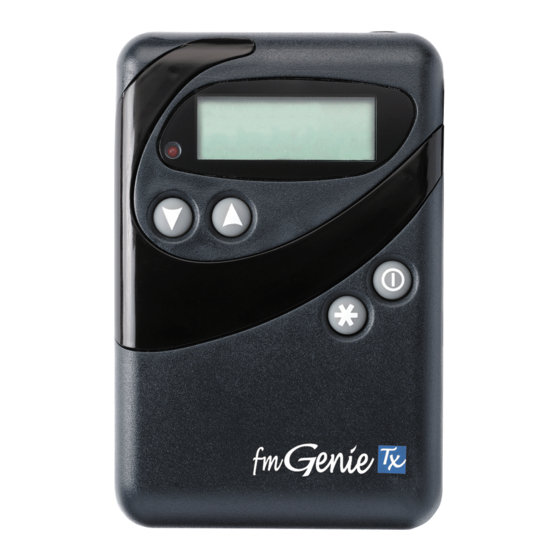

The fmGenie transmitter is worn by the teacher/tutor and their voice is
transmitted to the MicroMLxS/MLxS receiver which attaches to a direct
input shoe and then to the user's own direct input hearing aid.
Part 1
fmGenie batteries
The fmGenie uses standard size AA batteries. Rechargeable batteries are
the recommended option and, once fitted, are charged 'in situ' – just like
a mobile phone.
Rechargeable batteries – nickel metal hydride (NiMH)
New rechargeable batteries require charging before use.
1
To fit the batteries, slide open the battery
cover and insert as shown. The technique is a
combination of 'squeeze, thumb and wiggle'
– you won't break it and the firm fit stops the
battery cover accidentally falling off.
2
Do NOT turn on the fmGenie.
3
Plug one lead from the twin tail charger into the
socket marked 'Chg', rolling battery bars should be
visible on the right of the status display.
The spare lead from the twin tail charger can be left dangling
or neatly coiled and secured with a rubber band.
4
The equipment will be given an initial 4 hour
charge – enough for a few days' use.
5
When display goes blank, fmGenie is ready for use.
After this initial charge, your fmGenie will automatically
take either a full or top up charge as required.
Alkaline batteries
The fmGenie can also be used with alkaline AA batteries
– which can be useful in an emergency – you could even
borrow some from your TV remote controls!
The performance is the same whatever type of AA battery is used.
Page 55 – fmGenie User Guide (3rd Edition)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the fmGenie Tx and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Connevans fmGenie Tx

  • Page 1 Tx & MicroMLxS/MLxS Fast Track Guide This Fast Track Guide takes you through the basic steps required to get an fmGenie transmitter working with a Phonak MLxS receiver. The fmGenie transmitter is worn by the teacher/tutor and their voice is transmitted to the MicroMLxS/MLxS receiver which attaches to a direct input shoe and then to the user’s own direct input hearing aid.
  • Page 2 enie enie enie enie MicroMLxS MLxS MicroMLxS MLxS MicroMLxS MLxS MicroMLxS MLxS Part 2a fmGenie transmitter The fmGenie transmitter and the MLxS receiver MLxS – connecting up and turning on channel both have to use the same frequency channel. number Connect either an aerial or Check the channel number shown on the side lapel microphone into the...
  • Page 3 Note: It should be emphasised that different hearing aids (from different MLxS switch moves Connevans Catalogue – Section 2, manufacturers) will respond differently – we are not aware that this is from front to back Hearing Aid Direct Input Shoes documented so you will need to confirm for yourself exactly how your hearing aid performs.
  • Page 4 If your local service does not have a Phonak the sound heard from the hearing aid MLxS programmer, as a Connevans customer – please return the unit on its own at close range in to the address on the original invoice and we will be pleased to a quiet room.
  • Page 5 Part No. FMG212 conference to external equipment microphone A transmitter input adaptor allows you fmGenie fmGenie stub to connect an fmGenie Tx (or Rx) to Transmitter microphone lead other equipment such as hi-fi or Part No. computer Part No. FMG21M600 FMG110 Page 20 –...
  • Page 6 Turn off fmGenie when making changes to settings. Connevans tip: we advise using the bent out end of a paperclip to change switch settings; we can sell you a magnifying glass too, if you need one! Default channel setting –...
  • Page 7 CONNEVANS ON CD – More than the catalogue and the websites, the Connevans Information Resource CD has Powerpoint presentations, sound-clips of doorbells and telephones and video-clips of fitting direct input shoes. Also includes information sheets and user guides that can be printed on site.
