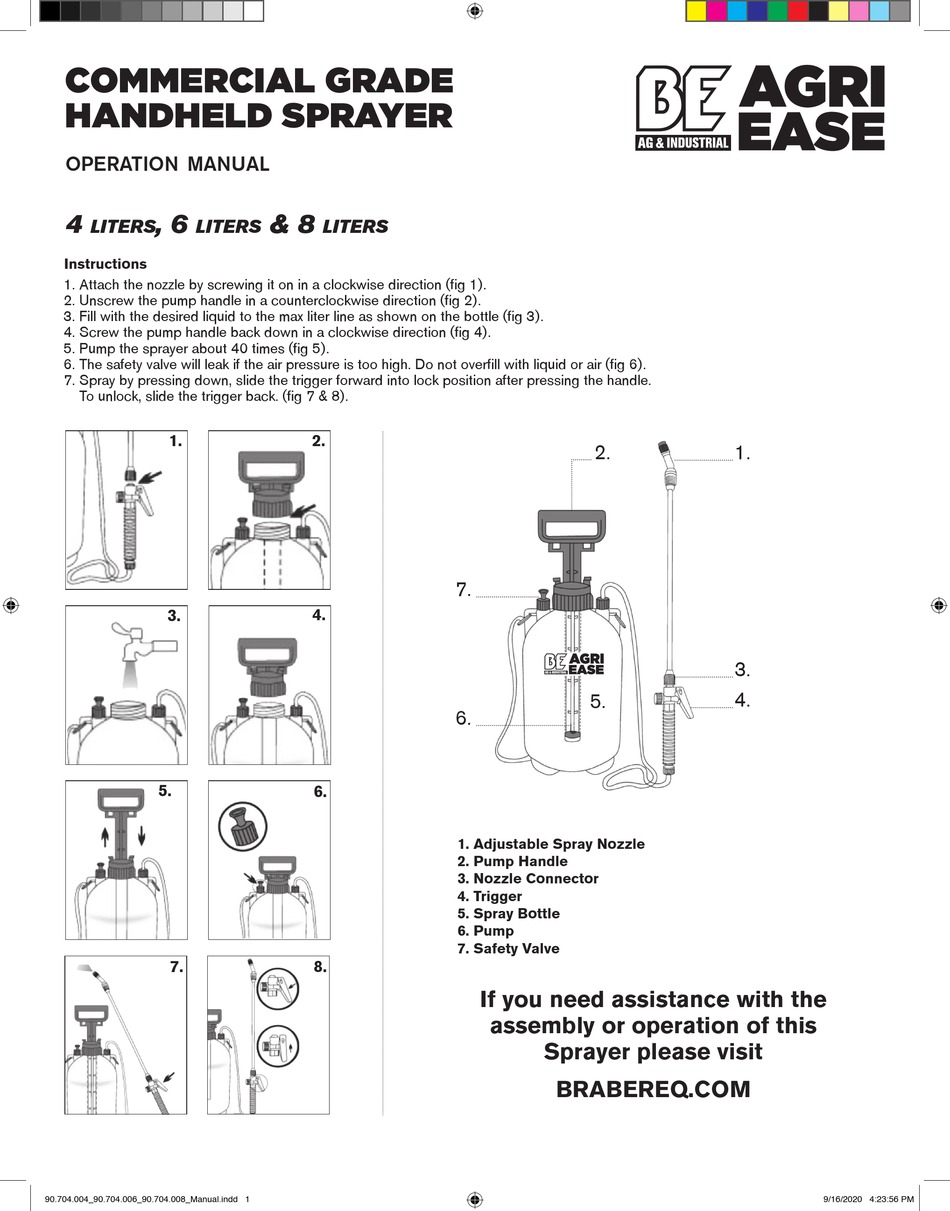

BE Ag & Industrial 90.704.004 Operation Manual

COMMERCIAL GRADE
HANDHELD SPRAYER
operation manual
4 , 6
liters liters
Instructions
1. Attach the nozzle by screwing it on in a clockwise direction (fig 1).
2. Unscrew the pump handle in a counterclockwise direction (fig 2).
3. Fill with the desired liquid to the max liter line as shown on the bottle (fig 3).
4. Screw the pump handle back down in a clockwise direction (fig 4).
5. Pump the sprayer about 40 times (fig 5).
6. The safety valve will leak if the air pressure is too high. Do not overfill with liquid or air (fig 6).
7. Spray by pressing down, slide the trigger forward into lock position after pressing the handle.
To unlock, slide the trigger back. (fig 7 & 8).
1.
3.
5.
7.
90.704.004_90.704.006_90.704.008_Manual.indd 1 90.704.004_90.704.006_90.704.008_Manual.indd 1
& 8
liters
2.
4.
6.
8.
2.
7.
5.
6.
1. Adjustable Spray Nozzle
2. Pump Handle
3. Nozzle Connector
4. Trigger
5. Spray Bottle
6. Pump
7. Safety Valve
If you need assistance with the
assembly or operation of this
Sprayer please visit
BRABEREQ.COM
1.
3.
4.
9/16/2020 4:23:56 PM 9/16/2020 4:23:56 PM
