IR Receiver
HDMI Source
Device
Specifications
Transmission Distance
Input up to 26.25 Ft / Output up to 49.21 Ft
50Hz 576i; 576P; 720P; 1080i; 1080P / 60Hz /59.94Hz / 480P; 720P; 1080P / 30/29.97/24/25Hz 720P; 1080P;
Video Resolutions
4K/3840x2160
640x480, 800x600, 1024x768, 1280x768, 1280x1024, 1680x1050, 1920x1080, 1280x720, 1360x768, 1920x1200, 1280x1024,
VESA Resolutions 60Hz
3840x2180P 30Hz
Audio Format
PCM 2.0
Specifications
Compliance
HDCP 1.4
Certification
CE, FCC
Bandwidth Frequency
6.75Gbps
Power Consumption
8W
Dimensions
7 1/2 x 4 1/2 x 5/8 Inches
Weight
1.06 lb
INSTALLATION & SPECIFICATIONS
OMX-13HMHM0002

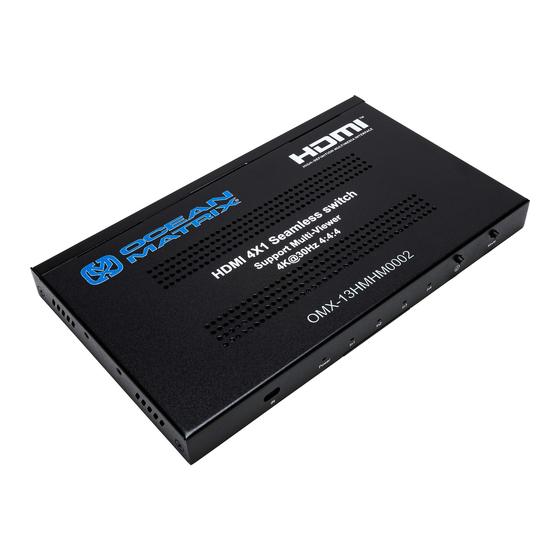

4K HDMI 4X1 Multiviewer with IR Remote Control
LED Power
LEDs Indicate Connection to HDMI Source
Indicator
HDMI Source
HDMI Source
Device
Device
Includes:
1-12VDC/1A Power Supply
2-Mounting Brackets
4-Screws, 4-Rubber Feet
812 Kings Highway • Saugerties, NY 12477
www.oceanmatrix.com
HDMI Source
Device
Ocean Matrix
Audio
Video Mode
Selector
Selector
Connect Supplied
Power Adapter
HDMI Monitor or TV
Rev1a
Advertisement
Table of Contents
Related Manuals for Ocean Matrix OMX-13HMHM0002
Summary of Contents for Ocean Matrix OMX-13HMHM0002
- Page 1 INSTALLATION & SPECIFICATIONS OMX-13HMHM0002 4K HDMI 4X1 Multiviewer with IR Remote Control IR Receiver LED Power LEDs Indicate Connection to HDMI Source Audio Video Mode Indicator Selector Selector Connect Supplied Power Adapter HDMI Source HDMI Source HDMI Source HDMI Source...
- Page 2 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Ocean Matrix 812 Kings Highway • Saugerties, NY 12477 Rev1a...
