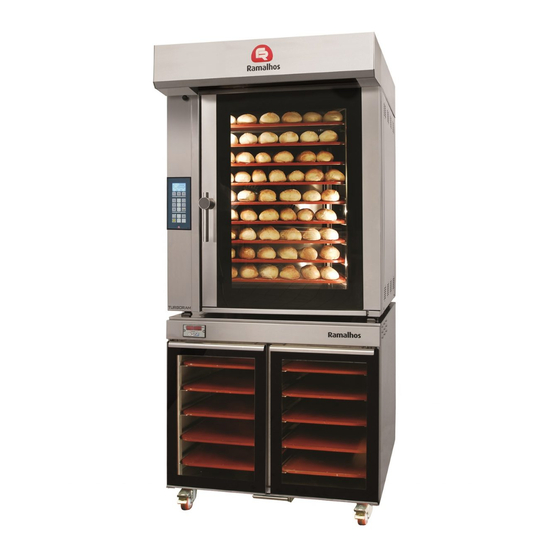

Summary of Contents for Ramalhos TURBORAM
- Page 1 TURBORAM Instruction Manual www.ramalhos.com...
-
Page 2: Table Of Contents
TURBORAM | Edition C - Revision 4 Index 01. Technical data · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 3 1.1 Technical recommendations ·... -
Page 3: Technical Data
· Avoid the use of corrosive products. · It is recommended that children be supervised to ensure · If there are any doubts, contact RAMALHOS. that they do not play with the device. · When this device is positioned near a dividing wall, ·... -
Page 4: Connections To Be Made To The Oven
TURBORAM | Edition C - Revision 4 2 | Connections to be made to the oven 2.1 ELECTRIC CURRENT CONNECTION 5.3 WATER ENTRY AND REGULATOR Fig. 1 Fig. 3.1 Electrical current cable. Water entry at 1/2” with a pressure of 300 to 350kPa. -
Page 5: Heating The Oven For The First Time
When the oven is turned on for the first time it will automati- The whole process will be managed automatically by the cally enter Ramalhos mode and show the message Function control panel. Test and First Heating on the display. -
Page 6: Description Of Control Panel Display
TURBORAM | Edition C - Revision 4 4 | Description of control panel display 4.1 KEY LCD DISPLAY EXHAUST KEY FUNCTION KEYS START/ STOP KEY (MULTIFUNCTIONAL) TEMPERATURE SELECTION KEY ON/ OFF KEY (PANEL) BUTTON TO SELECT BAKING TIME STEAM INJECTION KEY... -
Page 7: Introduction
TURBORAM | Edition C - Revision 4 Operational menu screen of a baking procedure while in progress 4.2 INTRODUCTION The control panel enables the manual and/or automatic baking process (automatic mode features 20 different pro- grammes and 4 baking stages per program). -
Page 8: Oven Operation
TURBORAM | Edition C - Revision 4 2 - To set the speed of the turbine press (OK) once. 4.4 OVEN OPERATION Finally, to exit the programming mode, press the but- ton once. OPERATION MODES From this moment on the oven is ready to operate in manual mode. - Page 9 TURBORAM | Edition C - Revision 4 AUTOMATIC MODE The selection tool will automatically move to the turbine speed: How to run a programme 1 - Use ( ) or ( ) to select the desired speed Proceed as follows: (we recommend using normal speed SPx2).
- Page 10 TURBORAM | Edition C - Revision 4 Baking with a programme EDITING PROGRAMMES DURING THE BAKING CYCLE Proceed as follows to select a programme: 1 - Press (NPROG) once; Proceed as follows to alter the temperature or baking time 2 - Use...
-
Page 11: Electric Panel
TURBORAM | Edition C - Revision 4 5 | Electric panel BUZZER (24V) SECURITY THERMOSTAT (320°C) CURRENT SOURCE - GROUND SOURCE ( ) - BLUE SOURCE (N) - BEIGE SOURCES 3~ (400 V) TRANSFORMER HEATING RELAY SPEED CONTACTOR 2 (fast) 1200 rpm... -
Page 12: Oven Maintenance
TURBORAM | Edition C - Revision 4 6 | Oven maintenance 6.3 LIGHT BULB SUBSTITUTION 6.1 WARNING MESSAGES AND FREQUENCY OF OVEN MAINTENANCE In order to keep the oven in good and safe working condi- tions, it is necessary to take the following maintenance steps. -
Page 13: Maintenance Warning Messages
TURBORAM | Edition C - Revision 4 6.4 MAINTENANCE WARNING MESSAGES Notwithstanding the fulfilment of the aforementioned dead- In order to do so, proceed as follows: lines, the oven has a system that warns the operator of the need 1. Press to access the user menu. -
Page 14: Solutions To Problems
TURBORAM | Edition C - Revision 4 7 | Solutions to problems Possible problems Causes Solution · Exhaust does not start and a · Over heating · Re-set thermometer sound is heard · The display shows (---) · Thermometer probe is ·... -
Page 15: Description Of The Front Panel Of The Prover Control Panel (Option)
TURBORAM | Edition C - Revision 4 8 | Description of the front panel of the prover control panel (option) – EST.D14 TEMPERATURE DISPLAY HUMIDITY BUTTON Digital display for viewing prover temperature. This button features two distinct functions. When pressed once it enables the user to edit the humidity HUMIDITY DISPLAY of the prover between 30 ... -
Page 16: Programming The Control Panel Of The Prover
ON to OFF. When OFF, - yellow/ green (ground) the led light of the button remains on. In this situation, RAMALHOS is not responsible for incorrect wiring or its con- the displays, outputs and buttons are turned off with the sequences. -
Page 17: Possible Breakdowns Of The Prover Control Panel
Reset thermal cutoff or contact Ramalhos technical assistance. Motor thermal cutoff. Allow the motor to cool down until the message disappears. If the message continues to show up contact Ramalhos technical assistance. No water. Open the water inlet or turn the controller off and on again.
