4. Statuses, colours and behaviour of the diode (if the device is properly
connected):
Device is working correctly (power and memory) - GREEN colour
Device is working incorrectly (power and memory) - RED colour
LoRaWAN frame sent - single WHITE flash
Confirmation from server after receiving the frame - single WHITE flash
Frame failed to confirm within specified timeout - single RED flash
LoRaWAN Disconnected - flashing BLUE
Connecting to BLE - flashing BLUE
In case of problems, the device can be reset with the "Reset" button.
Version 2 - December 2021
Analog

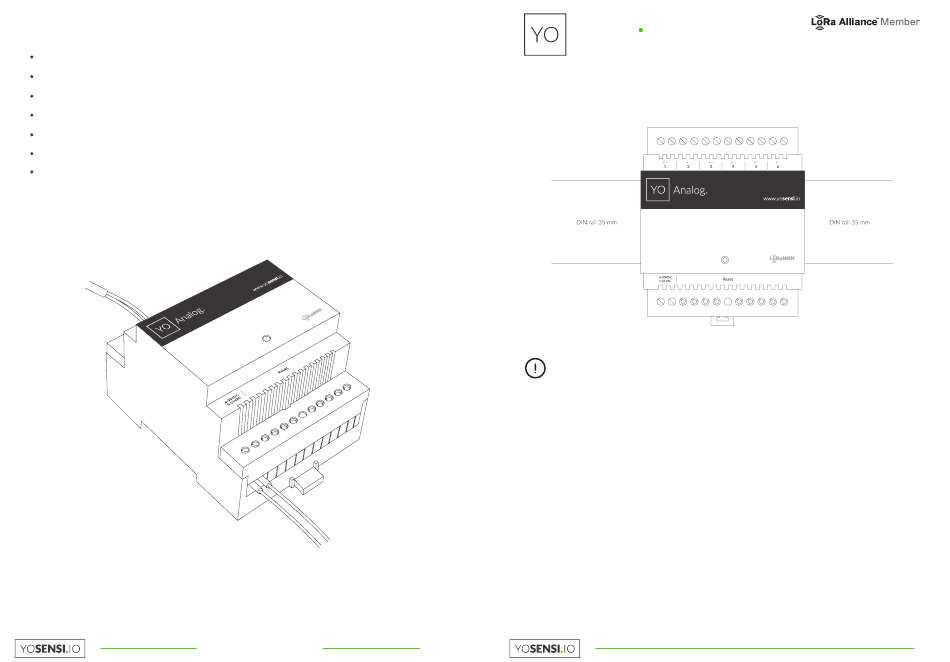

Quick Installation Guide
1. Mount the device on a 35 mm DIN rail.
Important! By default each input is configured as current. If you
want to configure one or more inputs as voltage you have to do it
before connecting sensors. The configuration is possible via BLE.
4
1
Advertisement
Table of Contents
Summary of Contents for LoRa Alliance YO Analog
- Page 1 4. Statuses, colours and behaviour of the diode (if the device is properly Analog connected): Quick Installation Guide Device is working correctly (power and memory) - GREEN colour Device is working incorrectly (power and memory) - RED colour 1. Mount the device on a 35 mm DIN rail. LoRaWAN frame sent - single WHITE flash Confirmation from server after receiving the frame - single WHITE flash Frame failed to confirm within specified timeout - single RED flash...
- Page 2 2. Connect a 4-20 mA signal source and/or a 0-10 V voltage 3. Screw the power supply wires to the device regardless of polarity measuring cable to the individual inputs of the device according (6 - 30 V DC, 5 - 21 V AC). to the polarity shown on the enclosure label.
