Summary of Contents for WorkPro BELBROOK

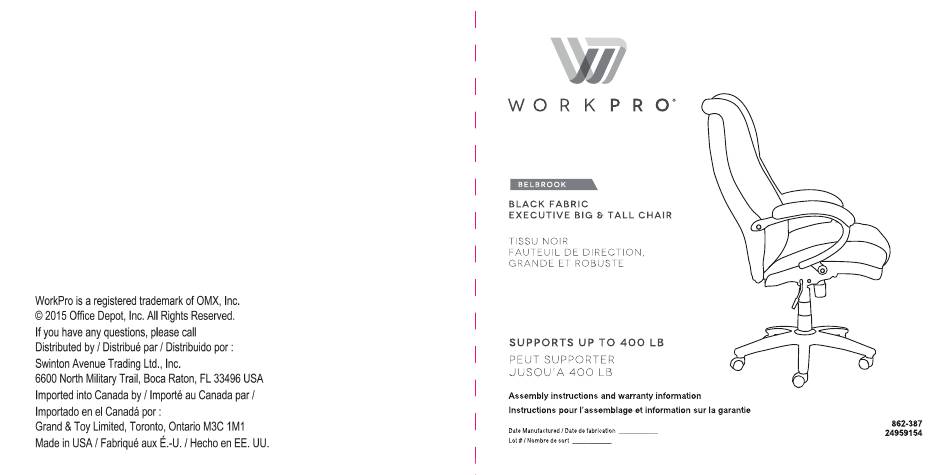

- Page 1 1-800-379-9773. Version 1016...
-
Page 2: Seat Cushion
Parts / Pièces / Piezas Seat Cushion Armrests Back Cushion Assise Accoudoir Dossier Cojín del asiento Descansabrazos Cojín del respaldo Step 1 Quantity/Quantité/cantidad: 1 Quantity/Quantité/cantidad: 1 Quantity/Quantité/cantidad: 2 Select a smooth surface in order not to scratch the parts. Turn the Star Base (F) upside down. Press the Casters (G) into holes at the end of each leg. - Page 3 Step 2 Place the Seat Cushion (B) on top of the box prior to assembly. Align Seat Plate (D) over pre-drilled holes on the underside of Seat Cushion (B) with black Step 3 tension knob facing the front of the seat. Attach Seat Attach the Seat Plate(D) mounted Seat Cushion (B) Plate (D) to Seat Cushion (B) using 2 Bolts (H2) for to the Back Cushion (A) at a right angle.
- Page 4 Step 4 Attach the Armrests (C) to the sides of Back Cushion (A) and Seat Cushion (B) with four Bolts Step 5 (H4). Tighten all the bolts fully and securely with Turn assembled seat upright and locate central Allen Key (J). Remember to tighten the back hole of Seat Plate (D) over Gas Lift (C).
- Page 5 Step 6 Step 7 Press the Plastic Flat Caps (I) into Armrest holes Before using your Chair, ensure that all the bolts to cover bolts and sit down on Seat Cushion. are tightened fully for safety. You can now enjoy Sitting on the Seat Cushion applies even the comfort of your new Chair! pressure on the Gas lift and Base and secures...
- Page 6 TO OPERATE TILT LOCKOUT Reach underneath the right side of chair and locate the handle. Slide the handle all the way out (away from the seat). When the handle is in this position, leaning back will cause the chair to tilt backwards. To lock the chair TO ADJUST SEAT HEIGHT in the upright or vertical position, sit upright and push While seated, lean forward, lifting your body weight from...
- Page 7 360˚ SWIVEL 360˚ Seat swivel. TO ADJUST TILT TENSION Reach under the front center of chair seat and ROTATION DE grasp the round black knob. To loosen the tilt mechanism, turn the knob clockwise. This lessens 360 DEGRÉS the effort required to rock back and forth. Rotate Rotation du siège de the knob until desired resistance is reached.
- Page 8 True Innovations seating products. Limited 10 Year Product Warranty True Innovations seating products. Garantie limitée de 10 ans This limited warranty covers the original purchase of new product used for normal commercial, personal or household use. True Cette garantie limitée couvre les produits neufs utilisés dans le cadre d'applications commerciales ou domestiques normales. Innovations seating products warrants its products will be free from defects in materials and workmanship (normal wear and tear True Innovations seating products garantit ses produits contre les défauts de matériel et de main-d'oeuvre (à...
- Page 9 True Innovations seating products Garantía limitada de 10 años para el producto Esta garantía limitada cubre la adquisición original de un producto nuevo utilizado con fines comerciales, personales o domésticos normales. True Innovations seating products garantiza que sus productos estarán exentos de defectos materiales y de fabricación (a excepción de los derivados de un uso y desgaste normal) durante 10 años a partir de la fecha de compra del producto, con la salvedad de lo dispuesto a continuación.
