Summary of Contents for Boyel Living MG426

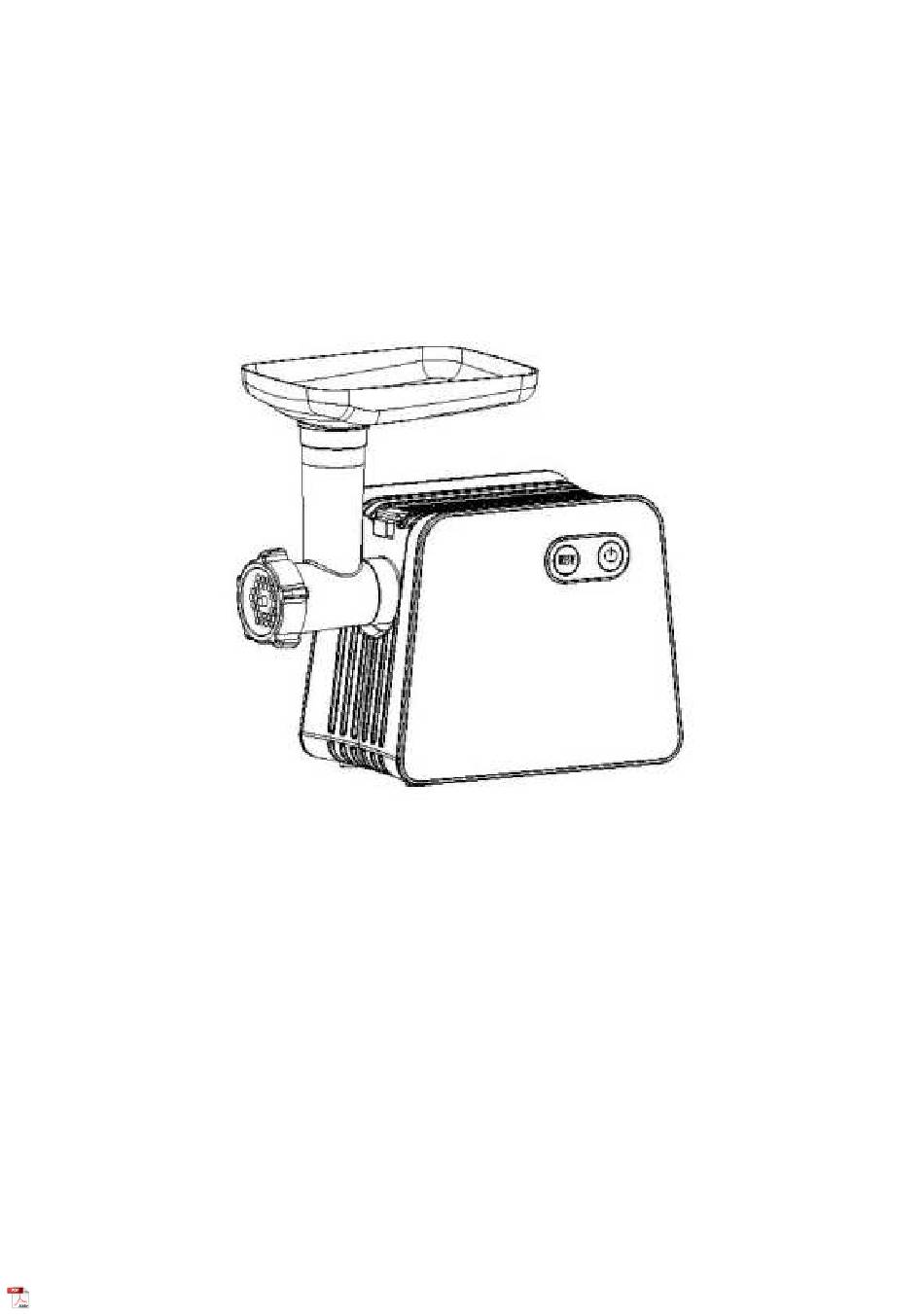

- Page 1 INSTRUCTION MANUAL MEAT GRINDER Model ：MG426 （120V/60Hz，450W，Locked power 2000W，KB=5min）...
-
Page 2: Table Of Contents
Catalog DESCRIPTION....................................3 IMPORTANT SAFEGUARDS................................4 FOR THE FIRST TIME................................... 5 INSTRUCTION FOR USE................................6 ASSEMBLING....................................6 MINCING MEAT....................................8 REVERSE FUNCTION................................8 MAKING KEBBE...................................9 MAKING SAUSAGE................................... 10 SALAD MAKER FUNCTION..............................11 INSERT / REMOVE THE SALAD MAKER........................11 MAKING COOKIES..................................12 DISASSEMBLING..................................13 CLEANING....................................14 CORRECT DISPOSAL OF THIS PRODUCT..........................14... -
Page 3: Description
DESCRIPTION 1. Food pusher 11-12.Sausage attachment 2. Hopper plate 13.Locking knob 3. Tube 14.Motor housing 4. Feed screw 15. ON/R switch 5.Cutting blade 16-17. Cookie maker set 6. Cutting plate(Coarse) 18.Pusher 7.Fixing ring 19.Tube 8.Cutting plate(Medium) 20.Slicer 9.Cutting plate(Fine) 21.French frier cutter 10.Kibbe attachment 22.Masher... -
Page 4: Important Safeguards
IMPORTANT SAFEGUARDS Household use only. Do not use for industrial purpose. Unplug from outlet when assembling and disassembling the unit. Close supervision is necessary Children should be supervised to ensure that they do not play with the appliance. ... -
Page 5: For The First Time
FOR THE FIRST TIME Check that voltage indicated on the rating label corresponds the mains voltage in your home. Wash all parts (except body) in warm soapy water. Before plugging in, ensure the “ON/ OFF” switch is turned to “OFF” position. -
Page 6: Instruction For Use
INSTRUCTION FOR USE ASSEMBLING Holding the head and insert it in the inlet with one hand, revolves toward left(fig.1,fig.2). Place the feed screw into the head, long end first, by turning the feed screw slightly until it is set into the motor housing(fig.3). ... - Page 7 Place the hopper plate on the head and fix into position. Locate the unit on a firm place. The air passage at the bottom and the side of the motor housing should be kept free and not blocked...
-
Page 8: Mincing Meat
MINCING MEAT Cut all foods into pieces (Sinewless, boneless and fatless meat is recommended, approximate size :20 mm x 20 mm x 60 mm) so that they fit easily into the hopper opening. Plug in and Press the “ON/OFF” button to operate the machine. ... -
Page 9: Making Kebbe
MAKING KEBBE Insert the worm shaft into the cutter housing, the plastic end first.(fig.8) Place the cone in the cutter housing. Place the former on the cutter housing and screw the ring on the cutter housing.(fig.9) Attach the cutter housing to the motor unit. Place the tray on the upright part of the cutter housing. -
Page 10: Making Sausage
MAKING SAUSAGE 1. Mince the meat. Insert the worm shaft into the cutter housing , the plastic end first.(fig.11) Place the separator in the cutter housing. Place the sausage horn on the cutter housing and screw the ring on the cutter housing.(Make sure the notches of the separator fit onto the projections of the mincer head.) 2. -
Page 11: Salad Maker Function
SALAD MAKER FUNCTION 1. Pusher 2. Salad maker tube 3. Cutting roll - Slicing 4. Cutting roll - Shredding 5. Cutting roll - Mashing INSERT / REMOVE THE SALAD MAKER 1. Hold the salad tube tilted slightly to the right and insert it into the motor unit, rotate the salad tube turn to left in a quarter until the tube locked on product. -
Page 12: Making Cookies
MAKING COOKIES Before making cookies, knead the dough as your favor Assemble the cookie maker attachment as per following fig. Choose the shape that you want. Put the dough on food tray, use pusher to push the dough into feeding tube. -
Page 13: Disassembling
DISASSEMBLING Make sure that the motor has stopped completely. Disconnect the plug from the power outlet. Disassemble by reversing the steps from 6-1 pictures. If the fixing ring is not easily removed by hands, please use tools（fig.12）. ... -
Page 14: Cleaning
CLEANING Remove meat, etc. Wash each part in warm soapy water. A bleaching solution containing chlorine will discolor aluminum surfaces. Do not immerse the motor housing in water, but only wipe it with a damp cloth. Thinners and petrol will crack or change the color of the unit. Wipe all the cutting parts by vegetable oil -wet cloth.
