SHO-ME 30.2400 Quick Manual

100 WATT FULL FEATURE PLUS SIREN
WITH 7-OUTPUT SWITCH BOX
H O
R N
P H
S H
O - S R
M E
T A
R A
D IO
FULL FEATURE PLUS SIREN

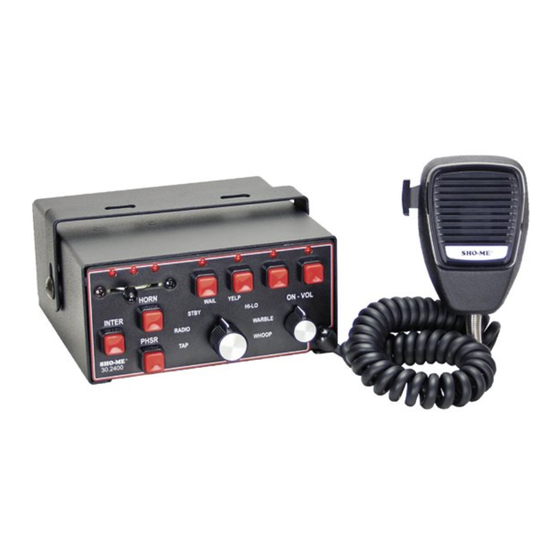

The 30.2400 Siren has 12 operational modes
including: Wail, Yelp, Phaser, Warble, Whoop, Hi-Lo,
Air Horn, Tap, Standby, PA, Radio Rebroadcast and
Intersection Mode. Park function is also available.
The siren has a rotary switch for mode selection,
three pushbutton momentary switches and an on-vol
dial. A hard-wired noise-canceling PA microphone is
also included. Use only one 100 watt speaker with
an 11 ohm impedance.

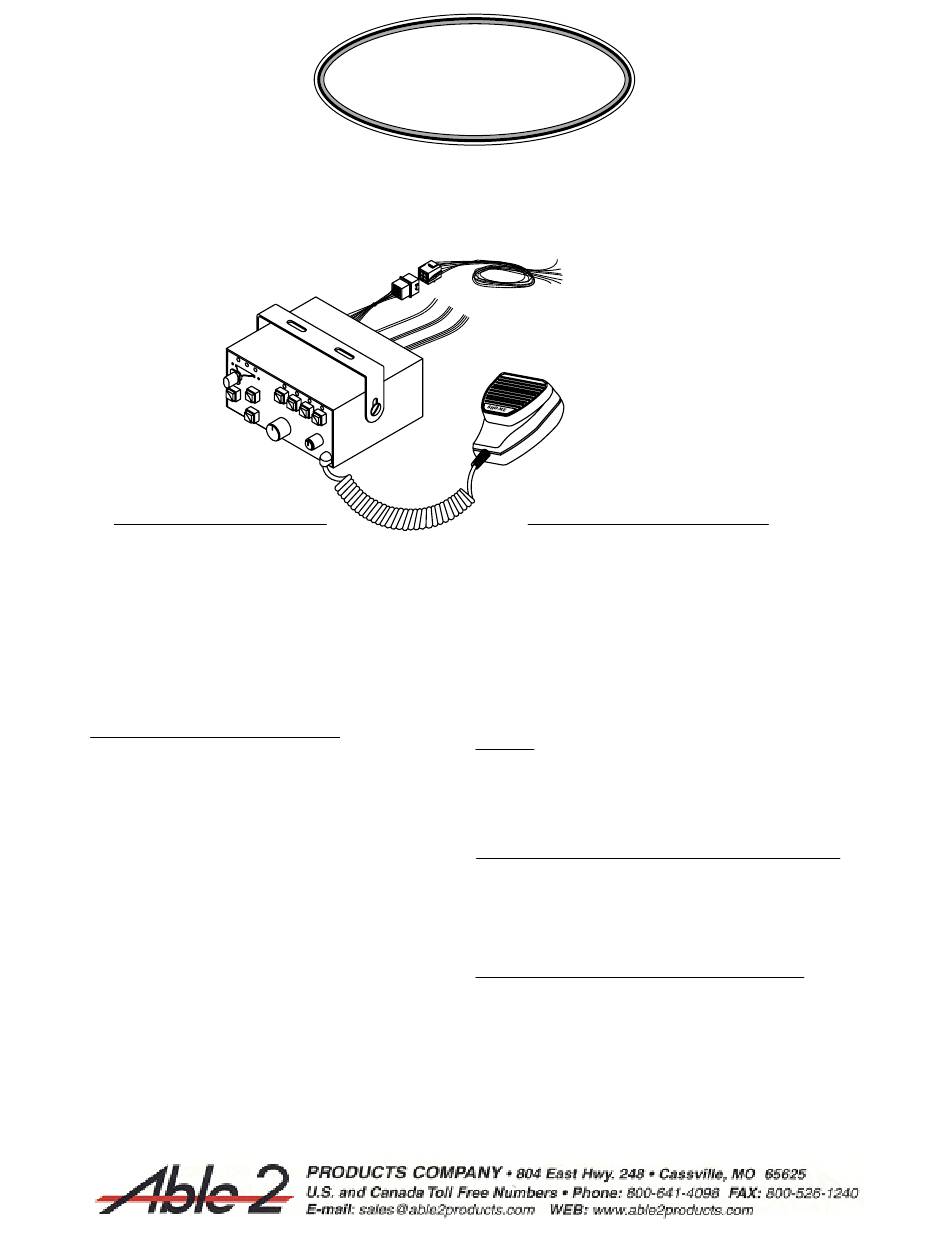

SIREN WIRING - 9 Wire Connector

Red Wire (Siren Power) Connect to Positive 12VDC.
Black Wire (Siren Ground) Connect to Ground.
Brown Wires (speaker)- Route 16-gauge speaker
wire from the siren to the speaker. Be certain to
protect the wire from abrasion and cuts as it passes
through the fire wall and other potential problem
areas. Cut off any excess wire then connect to the
speaker terminals. Polarity is not a factor.
White (optional)- Connect to vehicle park switch or
door switch. This function is ground activated. If this
function is not used, shorten the white wire and
insulate it to prevent accidental grounding .
Orange (optional)- Connect to 12 volt activated horn.
Yellow (optional)- Connect to ground-activated horn.
Blue Wires- Route one wire to one side of a two-way
radio speaker and the second wire to the other side of
the two-way radio speaker. Note: If a garbling
of radio rebroadcast is noticed while testing after
installation, reverse the wires at the two-way radio
speaker.
SHO-ME
MODEL NO. 30.2400
S T W A
B Y I L
Y E
P L P
H I-
L O
O N
- V
W A
R B O L
L E
W H
O O
P
®

7-OUTPUT SWITCH BOX WIRING

The 30.2400 7-output switch box has a 3-position
progressive slide switch rated at 10 amps each, and
four pushbutton on/off switches rated at 10 amps each.
NOTE: Each switch must be fused at a maximum of 10
amps. Total for all switches not to exceed 30 amps.
NOTE: By default, when the slide switch is in position 3,
the Wail sound will be turned on. If this feature is not
wanted, remove the four cover screws then slide the top
cover toward the rear. Locate the wire labeled
"Auto Siren", cut and tape the ends.
POWER
Red Wire (Sw. Box Power) Connect to Positive 12VDC.
Black Wire (Sw. Box Ground) Connect to Negative
Ground.
SLIDE SWITCH (3 wires- each output must be fused)
Yellow Wire - #1 Position - Positive 12V
Green Wire - #2 Position - Positive 12V
Purple Wire - #3 Position - Positive 12V
BUTTONS (4 wires- each output must be fused)
Orange Wire - #1 Switch - Positive 12V
Blue Wire -
#2 Switch - Positive 12V
White Wire - #3 Switch - Positive 12V
Brown Wire - #4 Switch - Positive 12V
8-17
