Summary of Contents for Wassermann Dental-Maschinen SG-1

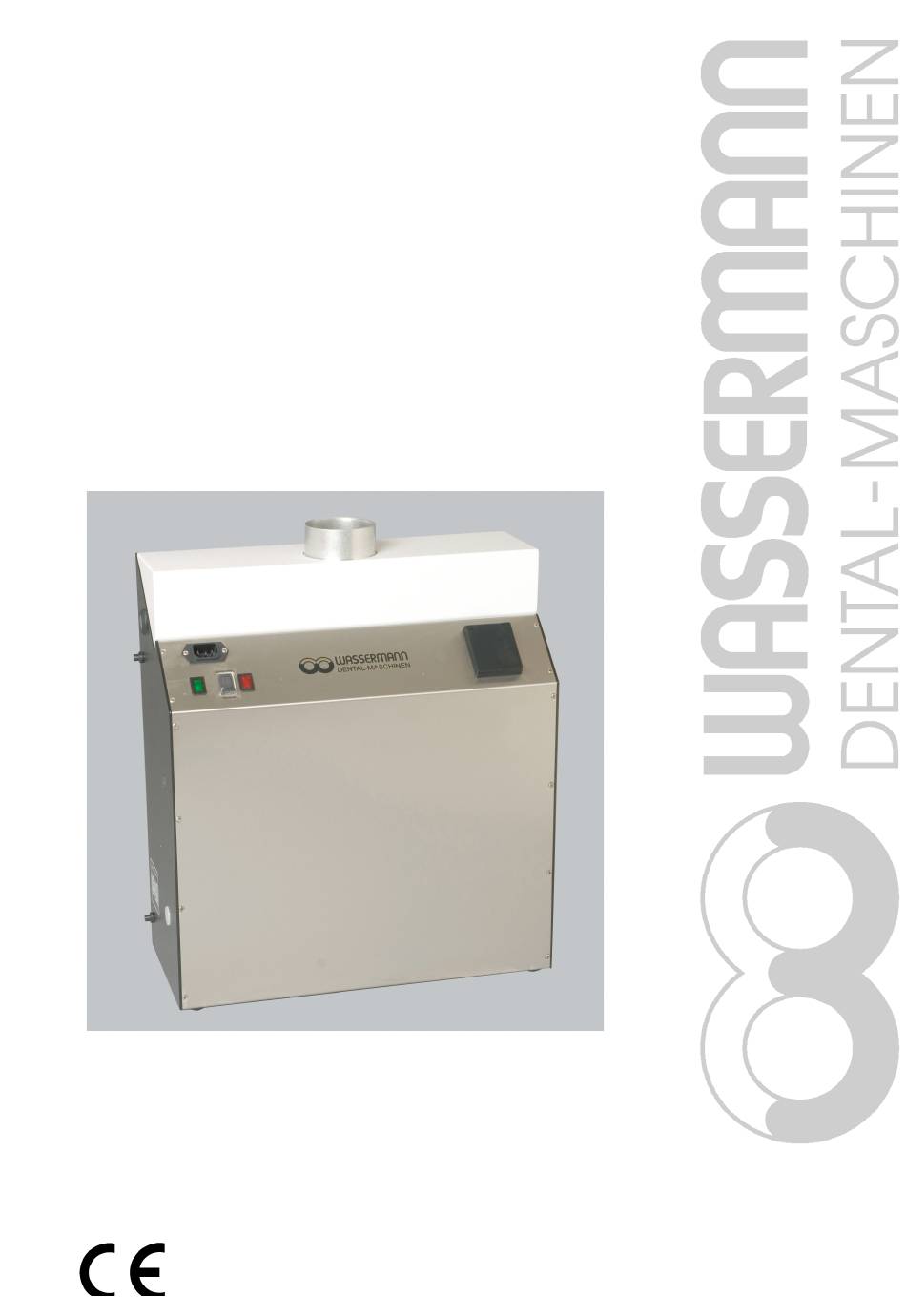

- Page 1 User manual SG-1 / 2 D Universal extractor units WASSERMANN DENTAL-MASCHINEN GMBH...
- Page 2 Please ensure that all persons operating the equipment have read and understood this user manual. Keep this user manual on hand for ready reference. Company address: Wassermann Dental-Maschinen GmbH Rudorffweg 15-17 D-21031 Hamburg Germany Tel.: +49 (0)40/ 730 926 - 0 Fax.: +49 (0)40/ 730 37 24 e-mail: info@wassermann-dental.com...
-
Page 3: Table Of Contents
- 2 - Contents Contents ........................2 For your safety....................... 3 ................3 ORRECT USE OF THIS PRODUCT ..............3 AFETY SYMBOLS USED IN THIS MANUAL .................... 4 AFETY GUIDELINES ............4 ESPONSIBILITY FOR OPERATION AND DAMAGE .................... 5 UTHORIZED USERS Care and maintenance................... -
Page 4: For Your Safety
1 For your safety 1.1 Correct use of this product The SG-1/2 D has an automatic level monitor, which cuts the motor when the filter is full, while simultaneously turning on a red warning light. If this happens, you will need to change the filter. -
Page 5: Safety Guidelines
The unit must be maintained and operated in accordance with this user manual. Wassermann Dental-Maschinen GmbH is not responsible for damage arising from the non-observance of these instructions. -
Page 6: Authorized Users
- 5 - 1.5 Authorized users The owner of the equipment must ensure that any users have been provided with the user manual and that they have read and understood its contents before operating the equipment. Ensure that this user manual is accessible at all times and has been read and understood. -
Page 7: Use/ Application
- 6 - 3 Use/ Application The SG-1/2 D suction unit is a technically proven and solid piece of equipment made entirely of metal. It is intended primarily for use with the Cemat-NT range as it has an additional socket for that purpose. Its automatic cut-out feature, when the filter is full, provides additional protection. -
Page 8: Contents
- 7 - 4.2 Contents Supply line with switchable shock proof plug 140022 Conductance sheet 140108 Micro fine dust filterbag - - - 5 Start-up The unit must be at room temperature before you start it. 1. Connect the extractor unit to the mains. 2. -
Page 9: Technical Data
- 8 - 6.1 Technical data Voltage* 220–240 V / 50/60 Hz Output 105 W Power consumption 0.5 A Power consumption connection unit max. 2 A W x H x D 410 x 460 x 185 mm Weight 12.7 kg Sound level 61 dB(A) Suction capacity... -
Page 10: Repairs
- 9 - 6.3 Repairs Servicing or repairs to the unit must only be carried out by trained technicians. Only original spares are to be used. Responsibility for the product is voided if altered by unauthorized persons or if inappropriate components are installed. 7 Warranty The warranty period for our equipment is 12 months. -
Page 11: Ec Conformity Certificate
Product description: Univeral suction Dental-Maschinen GmbH unit dental Rudorffweg 15 - 17 applications D-21031 Hamburg Model: SG-1/2 D universal suction unit 140997 Applicable DIN EN 61010-1:2004 standards: DIN EN 61000-6-3:2005 DIN EN 61000-6-1:2002 DIN 45635-1:1984 DIN EN 60335-1:2007 Hiermit wird bestätigt, dass die oben bezeichnete Maschine den genannten EG- Richtlinien entspricht. - Page 12 WASSERMANN Dental-Maschinen GmbH Rudorffweg 15 – 17, D-21031 Hamburg Tel.: + 49 (0)40 / 730 926 – 0 Fax: +49 (0)40 / 730 37 24 e-mail: info@wassermann-dental.com Internet: http://www.wassermann-dental.com...
