ARMA EC131 Assembly And Installation Manual
Aluminum ornamental panel
Hide thumbs
Also See for EC131:
- Assembly and installation manual (12 pages) ,
- Assembly (18 pages) ,
- Quick start manual (17 pages)
Related Manuals for ARMA EC131
Summary of Contents for ARMA EC131
- Page 1 EC131 Aluminum Ornamental Panel Quick Start Guide Rev001 ARMA Gate EC131 Aluminum Ornamental Panel Assembly and Installation Customer Support 1 800 371 0735 Page | 1 A Division Of Countermeasures Security Solutions Inc.
-
Page 2: Conventions Used In This Manual
EC131 Aluminum Ornamental Panel Quick Start Guide Rev001 Caution! Serious injury can occur. Wear appropriate safety equipment, such as safety glasses, at all times. Read this manual before beginning to assemble your product. Failure to read this manual could result in damaged components or an improperly functioning product. -
Page 3: Parts Included

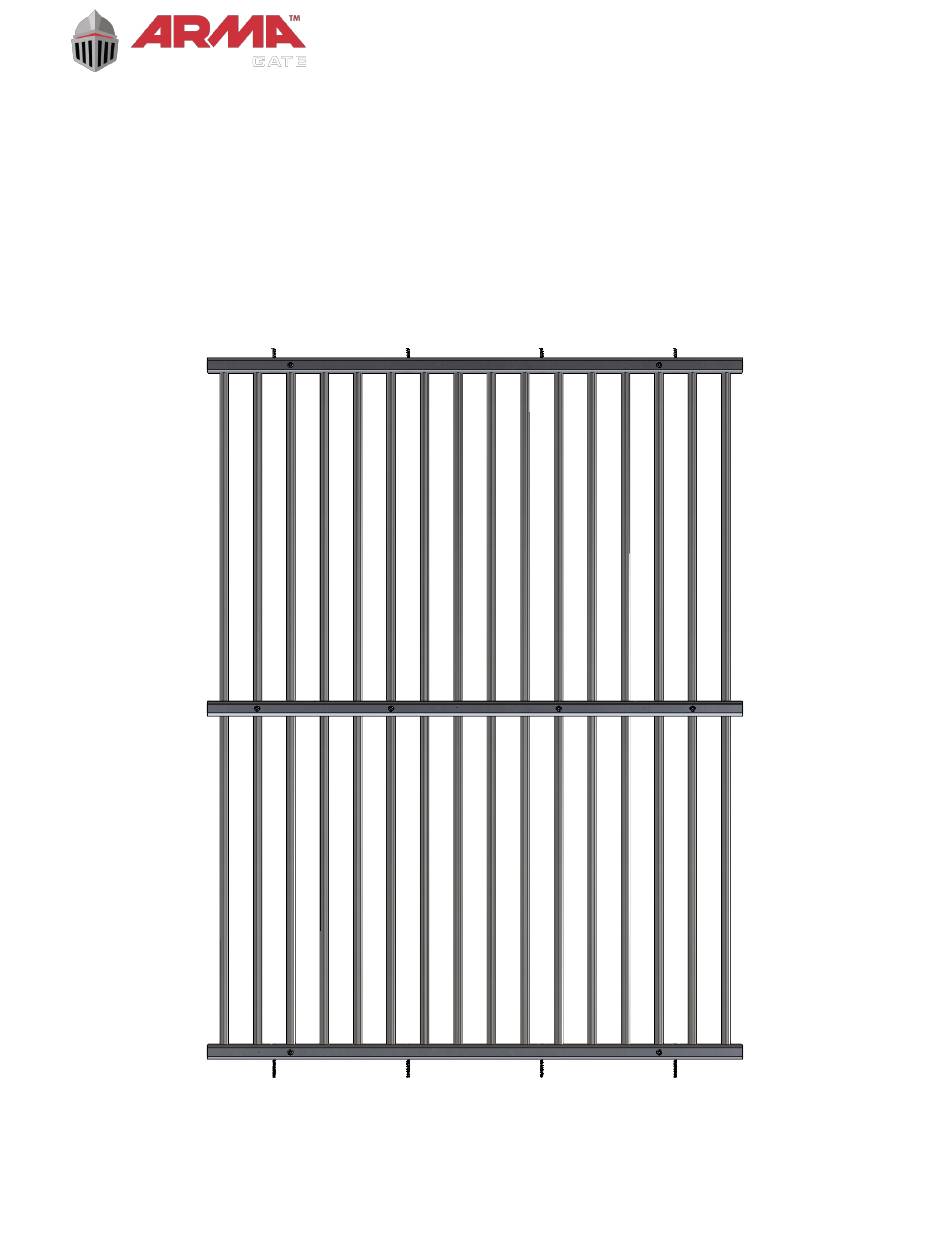

EC131 Aluminum Ornamental Panel Quick Start Guide Rev001 Parts Included Top / Bottom Rail Mid Rail Picket 16 x 1” Screw (1/4 – 20 UNC Hex Drive Button Head) 12 x 1.75” Screw (1/4 – 20 UNC Hex Drive Button Head) 4 x Tools Required Hex Key (5/32”) - Page 4 EC131 Aluminum Ornamental Panel Quick Start Guide Rev001 Top Rail Mid Rail �� Customer Support 1 800 371 0735 Page | 4 A Division Of Countermeasures Security Solutions Inc.
- Page 5 EC131 Aluminum Ornamental Panel Quick Start Guide Rev001 Picket x 16 Customer Support 1 800 371 0735 Page | 5 A Division Of Countermeasures Security Solutions Inc.
- Page 6 EC131 Aluminum Ornamental Panel Quick Start Guide Rev001 Bottom Rail �� Customer Support 1 800 371 0735 Page | 6 A Division Of Countermeasures Security Solutions Inc.
- Page 7 EC131 Aluminum Ornamental Panel Quick Start Guide Rev001 4 4) Customer Support 1 800 371 0735 Page | 7 A Division Of Countermeasures Security Solutions Inc.
- Page 8 EC131 Aluminum Ornamental Panel Quick Start Guide Rev001 1” Screw x 4 �� �� Customer Support 1 800 371 0735 Page | 8 A Division Of Countermeasures Security Solutions Inc.
- Page 9 EC131 Aluminum Ornamental Panel Quick Start Guide Rev001 �� �� 1” Screw x 4 Customer Support 1 800 371 0735 Page | 9 A Division Of Countermeasures Security Solutions Inc.
- Page 10 EC131 Aluminum Ornamental Panel Quick Start Guide Rev001 Gate Panel Ornamental Panel �� Customer Support 1 800 371 0735 Page | 10 A Division Of Countermeasures Security Solutions Inc.
- Page 11 EC131 Aluminum Ornamental Panel Quick Start Guide Rev001 �� 1.75” Mount Screw x 4 1” Mount Screw x 4 Customer Support 1 800 371 0735 Page | 11 A Division Of Countermeasures Security Solutions Inc.
- Page 12 EC131 Aluminum Ornamental Panel Quick Start Guide Rev001 Repeat Steps 7) and 8) for each Ornamental Panel Customer Support 1 800 371 0735 Page | 12 A Division Of Countermeasures Security Solutions Inc.
- Page 13 EC131 Aluminum Ornamental Panel Quick Start Guide Rev001 ARMA EC131 Ornamental Aluminum Panel Assembly Instructions Please refer the following details to Steps 1) through 9) above. 1) Align Top Rail and Mid Rail a) Open the boxes and unwrap and set the components aside ensuring they are not dinged or damaged in the process.
- Page 14 EC131 Aluminum Ornamental Panel Quick Start Guide Rev001 d) Repeat for the second Top Rail Mount hole and the two Bottom Rail Mount holes. Do not over tighten. e) This process will lock the panel together making the remainder of the assembly process easier.
