Portable Multifunctional Power Station Manual
S SERIES
1. Keep S series and the accessories dry and do not
expose them to high heat.
2.Never disassemble, puncture, shock, crash, or incinerate
the product.
3. Recycle and dispose of S series in accordance with
the local regulations.
4. Pay attention to safety when handling the S series.
5. People with disabilities or children should use the
product under the protection of the supervisor.
Advertisement
Related Manuals for Eastar S Series
Summary of Contents for Eastar S Series
- Page 1 Portable Multifunctional Power Station Manual S SERIES 1. Keep S series and the accessories dry and do not expose them to high heat. 2.Never disassemble, puncture, shock, crash, or incinerate the product. 3. Recycle and dispose of S series in accordance with the local regulations.
- Page 2 3. Never install or remove other modules from the S series when it is turned on. Do Not plug or unplug other modules when the power of the product is turned on, otherwise the power interface may be damaged.
- Page 3 3 . Fully charge and discharge the battery at least once every 3 months to keep the battery healthy. S series Use Care and Safety Guide It is forbidden to carry lithium batteries and equipment with a capacity greater than 160Wh on airplane due to the regulation;...
- Page 4 NOTICE To turn S series on or off, you need to PRESS and HOLD the ON/OFF system Power Button. To turn on the AC power outlet, you need to PRESS and HOLD the AC Button after turning on S series. Please follow this introduction step-by-step to be familiar with each of S series’s ports, buttons, display screens and more.
-
Page 5: Table Of Contents
CONTENTS S serise User Guide............1.2.3.4 Page retrieval.................5 S series product introduction..........6 Function declaration.............7 User Interface Introduction............8 Solar Panel Connection............9 Charge..................1 1 Technical Specifications...........12/13 FAQs ..................14 What’s in the Box...............14... -
Page 6: S Series Product Introduction

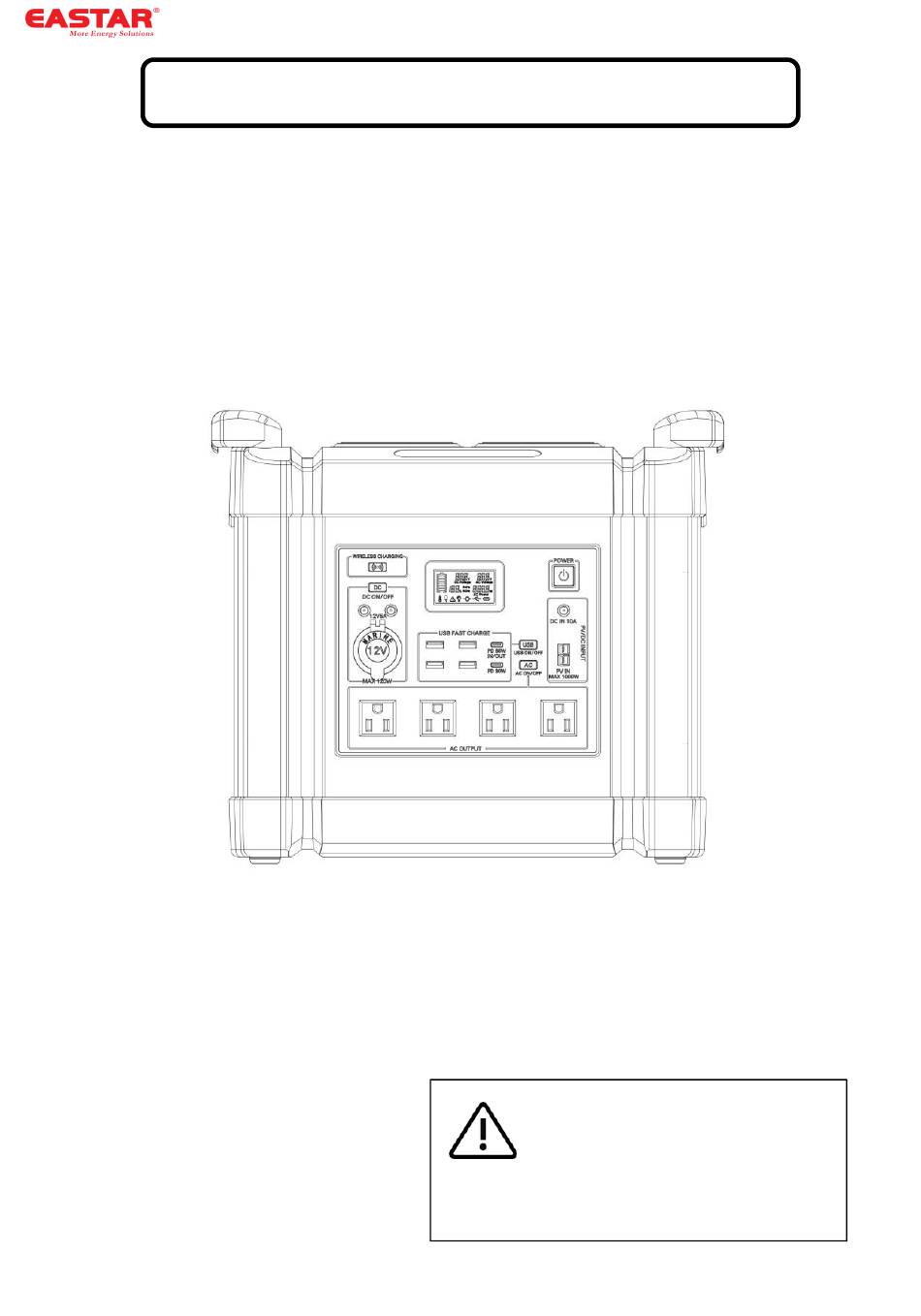

S series product introduction 1. DC charge ports 2. PV charge Ports 3. ON/OFF Button of Power 4. LCD display 5. ON/OFF Button of USB and Type-c 6. QC3.0 USB and Type-c output ports 7. ON/OFF Button of AC output 8. -
Page 7: Function Declaration
Function declaration 1. DC charge ports A. S series has a limit input of 294W, can use 29.4V10A DC charger B. which supports 12V/24V car charge up to 8A (remember to start the engine, otherwise, the car battery may be drained). -
Page 8: User Interface Introduction
User Interface Introduction 1, Battery status display A , remaining battery is shown at 20%,40%, 65%, 80%,100% B , the battery status bar will increase when charging, discharge work, the battery status bar will slowly reduce C , low voltage alarm, the battery frame line will flash,Please charge it in time 2, Percentage of battery capacity current remaining capacity can estimate the time the load can work 3, DC voltage (battery voltage ) -
Page 9: Solar Panel Connection
If you need to know more about the connection of solar panel, please refer to the Solar Panel User Guide. Here we focus on demonstrate how one to four solar panel in parallel. The S series can support a 30-50V DC in- put. - Page 10 . 36V solar panels can be allowed in parallel, up to a maximum of 1000 watts If you have two or four 36 volt solar panel output connectors of MC4, please refer to the following connection.
- Page 11 4 . Recharge at home using the included charger The charger presented randomly is a special charger （ 29.4V4.5A-29.4V10A） , this product does not accept any other charger whose parameters do not match for charging.Please read carefully and follow the rules. This product can be charged with a portable quick charger.
- Page 12 Choose the appropriate load according to the product model Note: If the load power used is too large, it will cause the machine to heat too fast, and start protection shutdown.At this time should reduce the load to use. If you stubbornly use high power load, resulting in damage to the product, will not be within the scope of warranty.
-
Page 13: Charge
Technical Specifications MODEL S1000 S1500 S2000 S2600 S3100 S4000 S5200 Inverter output 1000W 1500W 2000W 2000W 2000W 2000W 2000W Peak power 2000W 3000W 4000W 4000W 4000W 4000W 4000W AC output 220V±10% 50HZ 110V±10% 60HZ Waveform Pure sine wave Frequency Range 50HZ / 60HZ Lithium battey 1036Wh... -
Page 14: Faqs
How do I store S series? Please store S series in a dry and cool place. DO NOT place it near water. If you need to store S series for a long time, please charge the battery to around 85%, in order to extend battery life. Then turn off the main switch and store at room temperature.
