Summary of Contents for HaptX Gloves DK2

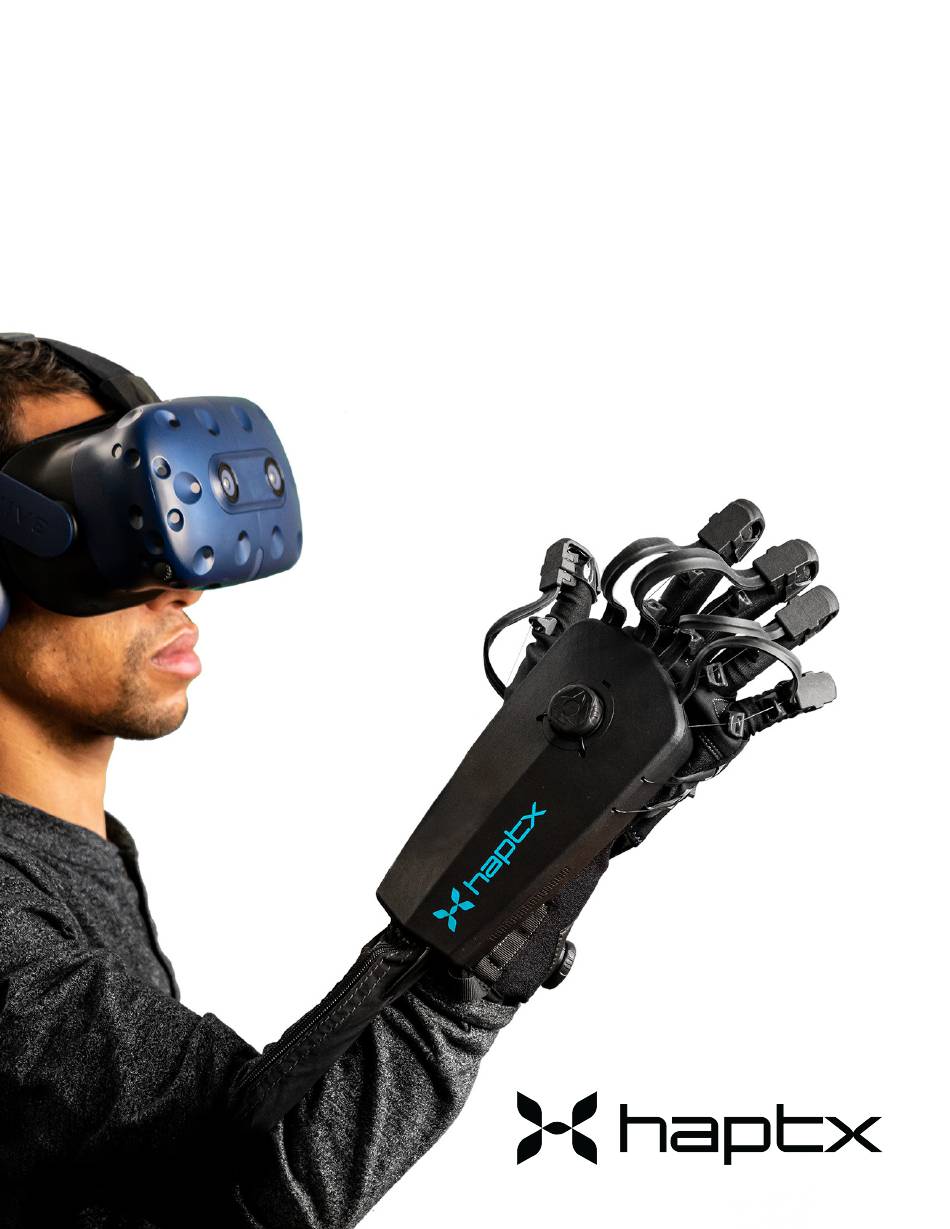

- Page 1 HaptX Gloves DK2 User Manual...
-
Page 2: Table Of Contents
4 6 Power on the Smart Compressor and Air Controller 4 7 HTC Vive Setup 4 8 Software Setup 4 9 How To Don a HaptX Glove 4 10 Doffing the HaptX Glove 5 Tear Down 6 Troubleshooting and Common Error Codes... -
Page 3: Safety Notices
High Voltage Warning: The Air Controller and Smart Compressor contain high voltage electronics Do not disassem- ble, expose to liquids, or use any power supply other than those provided with your HaptX Gloves Development Kit 2 (the “DK2” or ”Product”) - Page 4 électroniques sous haute tension Assurez-vous de ne pas désassembler, exposer à des liquides ou utiliser une source d’alimentation autre que celle fournie avec votre Ensemble de développement des gants HaptX 2 (le « DK2 » ou le « Produit ») Mise en garde d’air comprimé...
-
Page 5: Case Content
4 Air Controller Power Supply Case 3: Backpack Accessories Case 2: Smart Compressor Backpack Accessory 10 Smart Compressor Tether Smart Compressor Power Supply (not pictured) 12 Hygiene Gloves (not pictured) DK2 User Manual - © HaptX Inc. 2022 Page 5... -
Page 6: Pc Requirements
3 PC Requirements To use the HaptX Gloves DK2, your computer must meet the following system requirements: Recommend system Minimum system Component requirements requirements Intel or AMD 3 5 GHz quad core Intel Core i5-4590/AMD FX 8350 Processor processor or better... -
Page 7: Quick Start
Product use area If you are using the HaptX Gloves DK2 for standing-only use, we recommend using a table that is shorter than the user’s waist The following figure shows the usable workspace in the stationary configuration DK2 User Manual - ©... -
Page 8: 2 Haptx Gloves Dk2 Overview
VR experience area or near the table used for the station- ary configuration The Air Controller regulates the pressurized air supplied to the HaptX Gloves DK2 To prevent overheating, do not obstruct any of the vents or place in a confined space with limited air... -
Page 9: 3 Attach Gloves To Air Controller
Line up the pins to the Glove tether and attach it to the Air Controller Tighten the Glove onto the Air Controller by hand Then tighten an additional quarter turn with the Connector Wrench Attach the USB cable DK2 User Manual - © HaptX Inc. 2022 Page 9... -
Page 10: 4 Attach Backpack Accessory (If Room Scale Configuration)
4. Handle the Air Controller with care when in the room scale configuration Gently set the system down when doffing the backpack Do not step or trip on the tether when in VR DK2 User Manual - © HaptX Inc. 2022 Page 10... -
Page 11: 5 Attach Air Controller To Smart Compressor
4. The compressor and fans will start up and the green LED will flash while the compressor warms up 5. After 2 5 minutes, the green LED will turn solid, indicating the system is ready to be used DK2 User Manual - © HaptX Inc. 2022 Page 11... -
Page 12: 7 Htc Vive Setup
4.8 Software Setup 1. Download and install the latest version of the HaptX SDK, by logging into the HaptX support portal, using the credentials provided by HaptX Support support haptx com/docs/sdk/index html 2. -
Page 13: 9 How To Don A Haptx Glove
4.9 How To Don a HaptX Glove: 1. Don a hygiene glove 2. Pull on the HaptX Glove using the pull tab on the wrist and the back of hand casing 3. Seat each fingertip on your fingers by pulling down on the Glove fabric 4. -
Page 14: 10 Doffing The Haptx Glove
Warning: do not pull only on the fingertips, you may damage the Gloves. 5 Shutdown process When you are done using HaptX Gloves DK2 or are looking to move the system to a new location: 1. On the back of the Air Controller, toggle the power switch off 2. -
Page 15: Troubleshooting And Common Error Codes
Power is ON, Smart Compressor system is OFF Start-up sequence (lasts two minutes) flashing Normal operation Hard Fault (compressor system shuts down) flashing Soft Fault (compressor system continues to run) DK2 User Manual - © HaptX Inc. 2022 Page 15... -
Page 16: Still Need Help
8 Product Maintenance To protect your health, you should clean the HaptX Gloves and your HMD before a new user dons them Follow the manufacturer’s guidelines for cleaning an HMD To clean the HaptX Gloves: 1. Wipe down the exterior plastic surfaces with an ethyl alcohol-based wipe NOTE: Using isopropyl alcohol will cause discoloraton and cracking over time 2. - Page 18 DK2 User Manual - © HaptX Inc. 2021...
