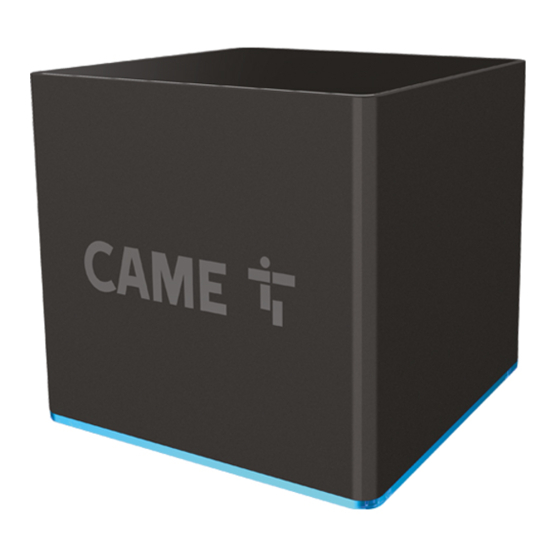

- Page 1 Gateway per Automazioni FA01328M4A IT Italiano EN English FR Français QBEMFSB2 PL Рolski MANUALE DI INSTALLAZIONE E CONFIGURAZIONE...
- Page 2 78,5...
-
Page 4: General Precautions
LAN or Wi-Fi connection. The installation, programming, commissioning and maintenance Devices connected to QBEMFSB2, once registered with CAME of the product must only be carried out by qualified technicians, Cloud, can be remotely controlled through a Smartphone or properly trained in compliance with the regulations in force, Tablet by a specific application. -
Page 5: Technical Data
Red - radio frequency. If the LED flashes regularly (once per Models QBEMFSB2 second) it means that there are problems with radio frequency Power supply DC (V) 5 series communication. Consumption (mA) 200 series G The blue light on the button indicates that the device is being Radio signal power at 869.5MHz (dBm) -
Page 6: Limits To Use
Limits to use Access to configuration pages through Wi-Fi connection Maximum number of devices that can be controlled The device generates its own Wi-Fi network. Type Quantity Connect the power supply to the device and to the mains. RSLV001 Modules 5 series Search on your PC (tablet, smartphone) the Wi-Fi network Operators... - Page 7 Configuration Select the “INSTALLER” access option and enter the password, which is set to “112233” by default, to access the settings Authorization requested windows. Please enter your username and password. Access with "User" credentials (default password 123456) allows access to the pages described below in a simplified Language manner.
- Page 8 [Status] Status System Network General Options Exit Summary [Summary] This screen show technical information that is useful to identify System the device’s characteristics and the network status. Model [System log] Serial number The section lets you generate file that contain data useful for Hardware version technical servicing aimed at finding any system malfunctions.
- Page 9 [System] Status System Network General Options Exit [Properties] Properties [Date setting] A Select from the list, the Continent - State/City where the Date setting system is installed. B Synchronize date and time with the browser. Time zone Europe/Rome C With NTP client active, in this space provide the NTP server Local time address/addresses through which the device will synchronize the Synchronize...
-
Page 10: Maintenance
[Maintenance] Status System Network General Options Exit [Software Update] Maintenance A Select the file containing the software update on your computer, and start the update. Software Update Configuration Software Update Select a compatible update file to update the current firmware. Choose file No file selected Image:... - Page 11 [Restart] Status System Network General Options Exit C Press the button to restart the device. Reboot Restart the operating system of your device Perform a restart operation [Network] Status System Network General Options Exit [Interfaces] Interfaces The screen is used to view the active network interfaces. A Press the button to change the LAN (Ethernet) connection Network Status...
-
Page 12: Interfaces - Lan
Interfaces configuration Status System Network General Options Exit The WWAN interface (Wi-Fi) configuration is similar to the Interfaces - LAN LAN (Ethernet) interface. Network interface configuration D Choose the type of addressing between Static and DHCP. Interface configuration [Static Address] General Settings The device's IP address is manually assigned. - Page 13 [Wi-Fi] Status System Network General Options Exit The device can operate in two modes. Wireless Master mode (Access Point) The device generates its own Wi-Fi network. Scan A Characteristics of the Wi-Fi network generated by the device. B Press the button to disable the Wi-Fi network. C Press the button to change the characteristics of the Wi-Fi Disable Edit...
- Page 14 Wi-Fi networks scan Status System Network General Options Exit The screen displays the networks detected. Add Network: Wi-Fi scan Select a network to connect to. Add Network Add Network Back Repeat scan Wi-Fi network association Status System Network General Options Exit If the network is protected, enter the password for the WiFi network to get access.
- Page 15 Modification of the characteristics of the Wi-Fi network Status System Network General Options Exit generated by the device F If necessary, change the transmission frequency and power Wireless network: Master "QBE" (wlan0) The Configuration section of the device manages the physical settings of the G Assign a name (SSID) to the device.
- Page 16 [Network utility] Status System Network General Options Exit [Diagnostics] Network utility The screen is used to check the connection status. Diagnostics [General Options] Status System Network General Options Exit [Cameconnect] Cameconnect The screen is used to enable/disable the connection to In this section it is possible to manage the connection to the Cloud.
-
Page 17: Log Setting
Programming, configuring and managing a system Once the network configuration of the device is completed, it is possible to configure, program and control devices connected to QBEMFSB2, using the applications available for Android and iOS devices. APP SETUP = Application for system programming and configuration... - Page 18 Pertinent Regulations. CAME SpA, the manufacturer, declares that the products described in this manual conforms to Directive 2014/53/EU. The complete wording of the EU declaration of conformity is available at the following Internet address: www.came.com Decommissioning and disposal. Dispose of the packaging and the device at the end of its life cycle responsibly, in compliance with the laws in force in the country where the product is used.
