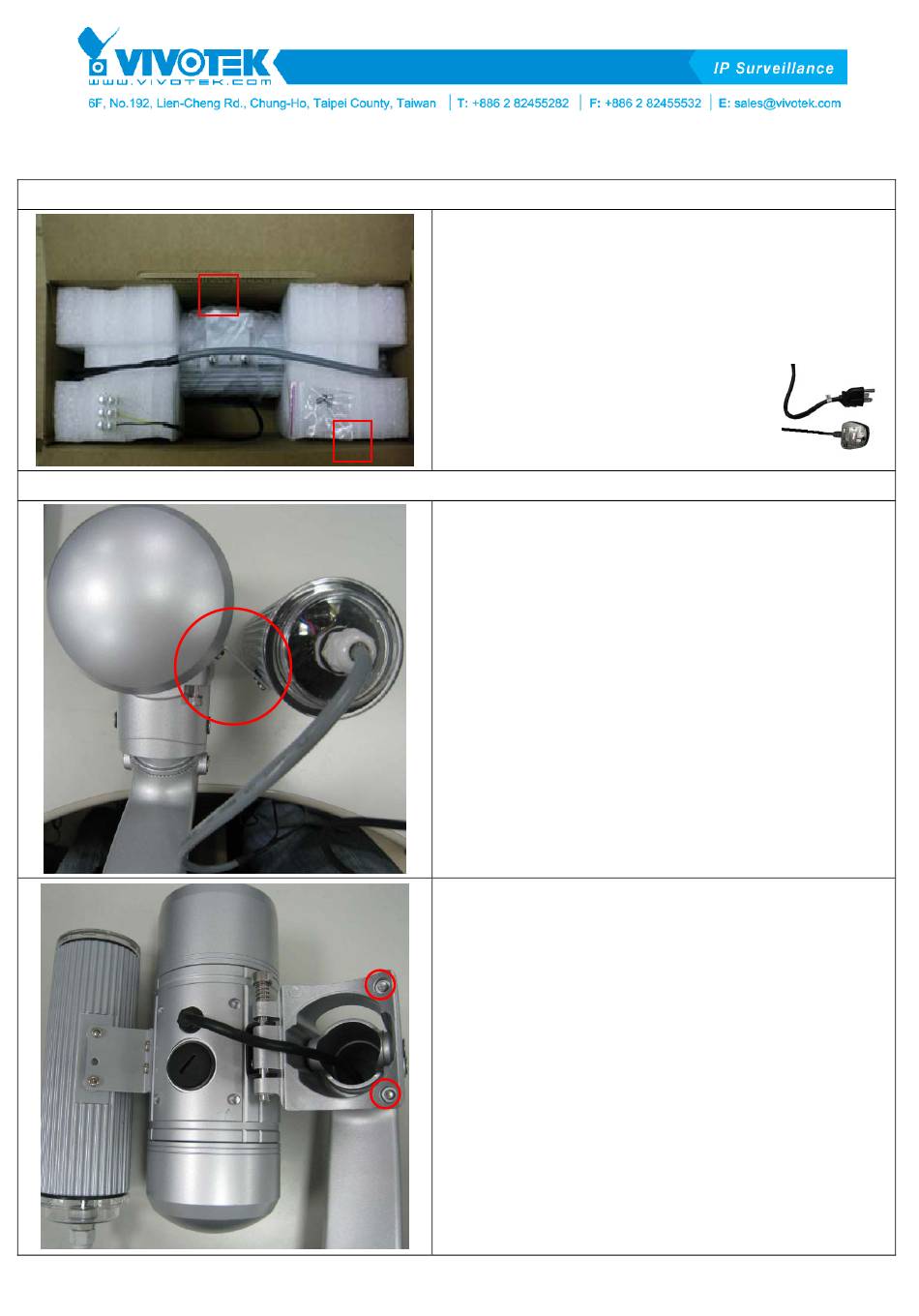

IR illuminator (AI-101) Quick Installation Guide
1. Product Introduction
2. Installation
A
B
Package Contents:
A. IR illuminator (AI-101) * 1 pcs (including stand
plate and power plug)
B. Screw * 2 pcs
※ You should purchase power cable
suitable for your local plug with
enough cable length, as shown on
the right:
Step 1:
a. Take Network Camera (including the stand).
b. Attach the AI-101 (including locking screws) to
the side of the Network Camera.
Step 2:
a. As shown on the left, loosen the fixing screws of
the stand and the Network Camera. Open the
Network Camera.
1
2012/04/05
V1.0
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vivotek AI-101
Summary of Contents for Vivotek AI-101
- Page 1 IR illuminator (AI-101) Quick Installation Guide 2012/04/05 1. Product Introduction Package Contents: A. IR illuminator (AI-101) * 1 pcs (including stand plate and power plug) B. Screw * 2 pcs ※ You should purchase power cable suitable for your local plug with...
- Page 2 Loosen the fixing screw of the stand (A, as shown on the left). Adjust the angle and lean the stand joint forward to its maximum. b. Pass the AI-101 control cable and power cable into the opening of the stand, as shown on the left.
- Page 3 IR illuminator (AI-101) Quick Installation Guide 2012/04/05 Step 6: a. Open the waterproof connector seal of the Network Camera. b. Secure the bottom of the waterproof connector seal. ※ Make sure that the waterproof connector to the Network Camera is secured tightly.
- Page 4 IR illuminator (AI-101) Quick Installation Guide 2012/04/05 Step 9: a. Tuck the remaining part of the control cable into the case as much as possible. ※ The back cover of the Network Camera can be opened so that control cable can be pulled out.
- Page 5 IR illuminator (AI-101) Quick Installation Guide 2012/04/05 Step 11: a. Secure the fixing screws of the stand and the Network Camera tightly. b. Open the back cover of the camera. c. Step 12: d. Connect the control cable as shown in the ”General I/O Terminal Block”...
- Page 6 As shown in the QIG (User’s Manual), log on to the homepage. b. Enter ”Configuration”, then click “Advanced mode.” c. Enter ”Audio and video” setting page. d. Unfold ”Day/Night settings:”, check and save the setting, then in the night mode, the AI-101 should be activated. V1.0...
- Page 7 IR illuminator (AI-101) Quick Installation Guide 2012/04/05 Note: a. There is only one DO connector on this Network Camera. If the external IR illuminator is used, no other DO devices can be connected. b. When you check the “Turn on external IR illuminator”...
