Parking Facilities PF6000X Installation, Operation & Maintenance Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
PF6000X
Automatic Barrier
Rev 1.0
Installation,
Operation & Maintenance
Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PF6000X and is the answer not in the manual?

Questions and answers

Related Manuals for Parking Facilities PF6000X

Summary of Contents for Parking Facilities PF6000X

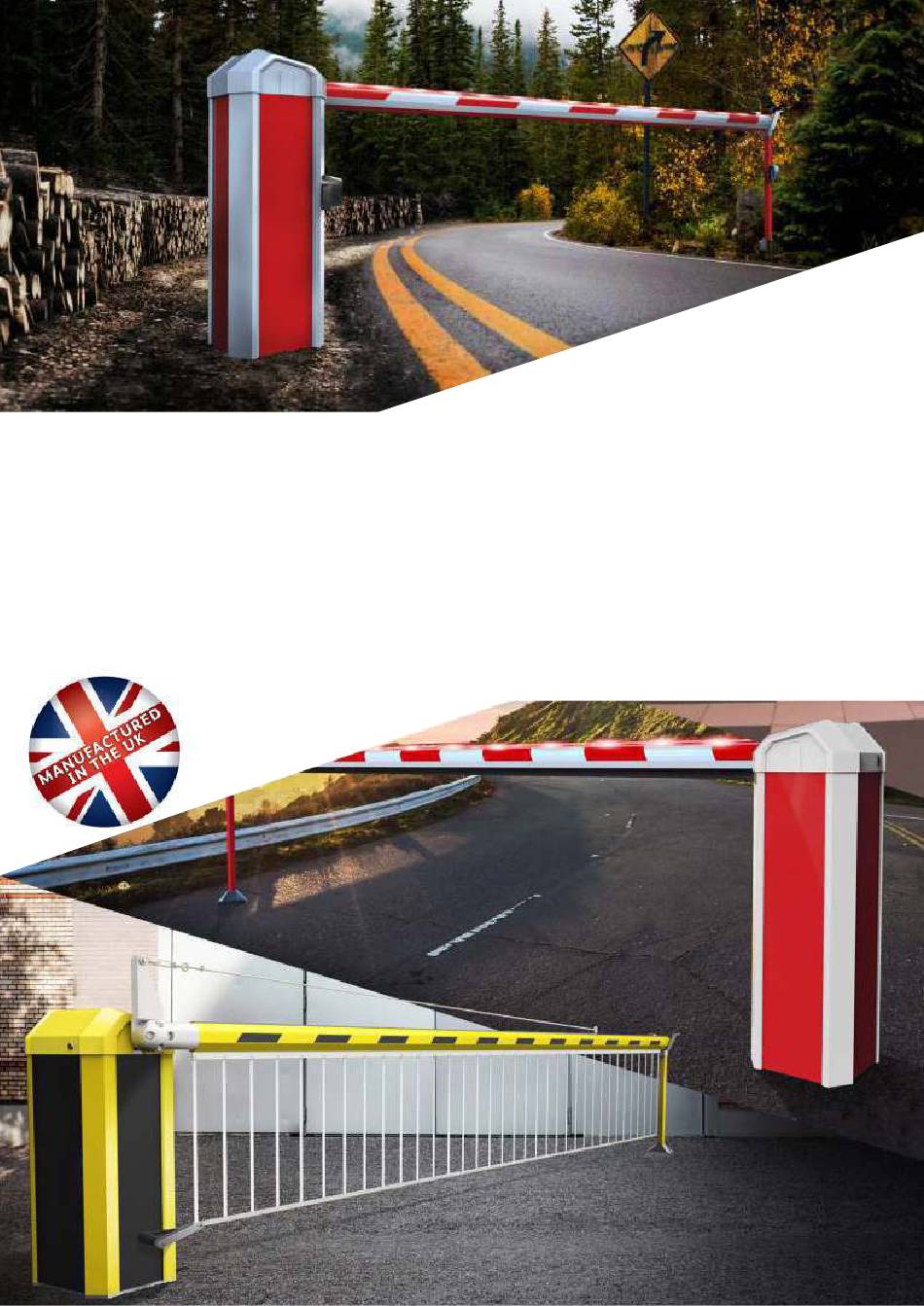

  • Page 1 PF6000X Automatic Barrier Rev 1.0 Installation, Operation & Maintenance Manual...

  • Page 2: Table Of Contents

    PF6000X Contents INDEX PAGE NO INTRODUCTION & WARNINGS WARRANTY & LIMITATIONS DELIVERY, MOVEMENT & TRANSPORT BARRIER SETUP BARRIER SEQUENCES EXPLAINED GENERAL SPECIFICATION COMPONENT IDENTIFICATION POLE ARM ADAPTOR BARRIER HANDING 11 - 13 MANUAL RELEASE GUIDE STRAINING WIRE ASSEMBLY FIRST OPERATION MANOEUVRES...

  • Page 3: Introduction & Warnings

    PF6000X Introduction & Warnings This equipment is part of a large range of traffic flow products. They are designed to be easy to install, as all settings and internal wiring have been completed in our factory. Any of the instructions in this manual should only be carried out by a qualified service engineer or a competent person.
  • Page 4 PF6000X Warranty & Limitations Warranty and Limitations of Liability WARRANTY Our exclusive warranty is that the products are free from defects in materials and workmanship for a period of one year (or other period if specified) from date of sale by PFL.

  • Page 5: Delivery, Movement & Transport

    PF6000X Delivery, Movement & Transport The barrier should ALWAYS be moved with care and attention. The products are very heavy individually as well as a whole. You should not attempt to move this or any other products by unapproved handling methods.

  • Page 6: Barrier Setup

    PF6000X Barrier Setup Access Control Pedestal ENTRY Mains Power Safety Road Loop Loop Detector Input EXIT Mains Power Safety Road Loop Loop Detector Input...

  • Page 7: Barrier Sequences Explained

    PF6000X Barrier Sequences Explained Standard Barrier Entry “One Way“ Operation Barrier raise requested (keypad/swipe card etc). Barrier Raised. Barrier “No Passage” timer started. Car moves onto safety loop (free exit loop inhibited, no passage timer cancelled). Car moves o ffof safety loop.
  • Page 8 PF6000X Barrier Specification Specification: CE Approved (Confirms to BS6571) Maximum Boom Length: 4 - 9 Metres (Dependant on Barrier Model) Boom Diameter: 86mm x 60mm Oval Opening/Closing Time: 3.0 - 12.0 Seconds (Dependant on Barrier Model) Drive Unit: 3 Phase Motor & Wormed Gearbox Power Supply: Single Phase 230v, 50Hz, 10 Amps Finish: Chromate Wash &...

  • Page 9: Component Identification

    PF6000X Component Identification You should check that you have received the following in your order as they are referred to throughout this manual (note this can change per barrier spec i.e. manual components are different from automatic): Straining wire kit Barrier Cabinet O&M Manual 1 No.

  • Page 10: Pole Arm Adaptor

    PF6000X Pole Arm Adaptor Installation 60 5 45 mins 5/6. Picture shown is without pole for illustration purposes Picture shown is without pole for illustration purposes Picture shown is now with a pole 7/8. 60mm 60mm Note! YOU CAN DRILL THROUGH BOTH THE...
  • Page 11 PF6000X Handing Change Procedure...
  • Page 12 PF6000X Handing Change Procedure...
  • Page 13 PF6000X Handing Change Procedure...
  • Page 14 PF6000X Barrier Manual Release Procedure...
  • Page 15 PF6000X Straining Wire Assembly...

  • Page 16: First Operation Manoeuvres

    PF6000X First Operation Manoeuvres 1.Before attempting the steps outlined below, please obey common sense and make sure that you have closed the passage the barrier will inhibit, provided a diversion and informed site inc pedestrians. 2.Follow the manual release guide in this manual and make sure the barrier moves un-hindered by inserting the winding handle and turning to make the barrier open and then close.

  • Page 17: Limit Switch Adjustment

    PF6000X Limit Switch Adjustment To adjust Upper limit switch trigger position. -Set barrier to closed position. -Loosen limit striker. -Move striker to desired position. -Re-tighten limit striker. Striker Limit switch Use a rubber mallet to advance the striker in small increments to fine tune the position of the pole arm.

  • Page 18: Uploading A Program

    PF6000X Uploading a Program Power Inputs Inputs I1 I2 I3 I4 IB I1 I2 I3 I4 IB 24VDC Inputs I1...I4 IB..IE 24VDC Inputs I1...I4 IB..IE 24VDC Analog or 24VDC 24VDC Analog or 24VDC Memory card slot SR2 B121BD SR2 B121BD...

  • Page 19: Plc Logic

    PF6000X PLC Logic The table (bottom) relates to the diagram directly below to help you trouble shoot electrical component errors Showing program in “run mode” Showing program in “Stop mode” I1 I2 I3 I4 IB I1 I2 I3 I4 IB...

  • Page 20: Altering Barrier Speed

    PF6000X Altering Barrier Speed Inputs LCD Display Escape Key Enter Key & Scroll Key Outputs How to change Barrier speed Please be aware limit switch strikers may have to be moved!! The display will show “ ” Press the Dial buton...
  • Page 21 PF6000X Example Loop Installation...
  • Page 22 PF6000X Loop Detector Guide Indicators Power Indicator: This LED indicator illuminates when power is present. Detect Indicator: This LED indicator is illuminated when there is a vehicle over the loop or the loop is faulty. This LED can also be used to determine the loop frequence.
  • Page 23 PF6000X Loop Detector Guide Relay Functionality Diagnostics...
  • Page 24 PF6000X Wiring Diagram...
  • Page 25 PF6000X Wiring Diagram STOP (COM) STOP RAISE (COM) RAISE LOWER (COM) LOWER RAISE LIMIT (COM) RAISE LIMIT LOWER LIMIT (COM) LOWER LIMIT PHOTOCELL FLASHING LIGHT/ TRAFFIC LIGHT SAFETY EDGE SWITCH -24V +24V SAFETY - LOOP SAFETY - LOOP FREE EXIT -...

  • Page 26: Wiring Diagram

    PF6000X Wiring Diagram Master/Slave Wiring (open) if push buttons I1 I2 I3 I4 IB I1 I2 I3 I4 IB Inputs I1...I4 IB..IE Inputs I1...I4 IB..IE 24VDC 24VDC 24VDC Analog or 24VDC 24VDC Analog or 24VDC SR2 B121BD SR2 B121BD Menu/Ok...
  • Page 27 PF6000X Wiring Diagram LED and Safey edge Wiring When you receive your barrier you need to connect the safety edge and LED lights.
  • Page 28 PF6000X Safety Edge Setup...
  • Page 29 PF6000X Safety Edge Setup...

  • Page 30: Troubleshooting

    PF6000X Troubleshooting Guide ELECTRICAL ERRORS CAUSE CORRECTION Door switch circuit not making Press door switch in and check PLC screen Blank screen on PLC but power to other PLC has developed an electrical fault or had a Change PLC devices in the control panel...
  • Page 31 PF6000X Troubleshooting Guide MECHANICAL ERRORS CAUSE CORRECTION Barrier arm keeps going up and down Limit switch fault check and reset limit switches Barrier creaking when moving Check turn buckle Oil or grease turn buckle Barrier motor not running Loss of voltage...

  • Page 32: Barrier Maintenance

    PF6000X Barrier Maintenance As stated at the beginning of this manual we recommend a bi-annual service, but at a bare minimum, it is imperative that you get a service done once every 12 months. This is not a sales tactic in disguise, there is a very serious health and safety issue/risk associated with not complying to this.

  • Page 33: Potential System Hazards

    PF6000X Potential System Hazards Please note these are things that you should look out for with the equipment that has been installed on your/your customers site. This is in no way a health and safety guide just a few key areas for you to be aware of and possibly make future changes to.
  • Page 34 PF6000X Installation Check List Barrier Maintenance System Operation - The user FULLY understands How to operate the system with all control devices How to isolate the power to the automation system How to manually release the system in event of power failure The safety rules and issues associated with your system Safety devices on the system have been verified and checked...
  • Page 35 PF6000X Service Log This Manual must be completed in accordance with the guidelines below, at any point service/repair work is carried out on the product. This is to achieve two things; 1. To keep a history of the product for yourself and your supplier/manufacturer.
  • Page 36 PF6000X Commissioning Certificate We certify that the system covered by this certificate has been commissioned satisfactorily. Contract Reference Completion Contract Title Engineers Installing Installation Commenced Commissioning Works Description Part/Whole Certificate Handover Date Part 3.The system(s) designed and installed in accordance with the following documents:...
  • Page 37 We hereby certify that the machinery stipulated below complies with all relevant provisions of the EC Machinery Directive and National Laws and Regulations adopting this Directive. Manufacturer Parking Facilities Ltd & European Unit 1 Kingsbury Link Industrial Estate Agent: Trinity Road Tamworth Staffs...
  • Page 38 EUROPEAN MARK CERTIFYING CONFORMITY TO THE ESSENTIAL REQUIREMENTS OF THE STANDARDS 2006/42/EC Proudly Made Proudly Made in the UK 2003/108/CE Directive for waste electrical and Made using electronic Equipments recycled DISPOSE OF PROPERLY paper ENVIRONMENT - NOXIOUS MATERIALS The manufacturer reserves the right to make amendments to this manual without prior notice and declines all responsibility for any errors, personal injury or damage to property.
