Summary of Contents for RED ROOSTER RRI-BS6H2

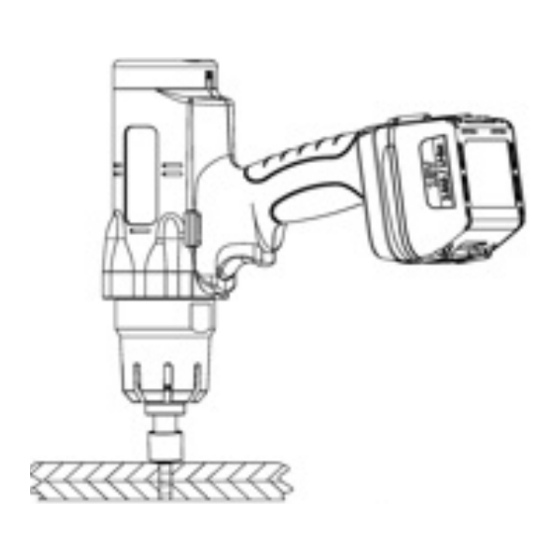

- Page 1 RRI-BS6H2 MANUAL EN www.rami-yokota.com...
- Page 2 Brand : RED ROOSTER Industrial Safety standard : EN ISO 11148-6 Drive : 1/4" Hex Bolt capacity (mm) : 300 - 1000 Torque (Nm) : 1,5 - 6 Weight w/o battery (kg) : 1,0 mm A : 203 mm B : 238 Vibration level (m/s²)
- Page 3 R emoving the battery:...
- Page 4 B attery charger Lamp Indication: Do not ignore safety precautions! Safety Do not modify this tool in any way, this can cause danger for the operator. Make sure that this manual is accessible at all times for any relevant person, in case of loss of this manual ask your dealer for a new copy or refer to our website.
-
Page 5: Electrical Safety
Make sure that the inserted tool or accessory is mounted correctly, if not it may cause high speed projectiles. Make sure that no dangerous circumstances can occur for other persons in the work area. Always wear safety glasses during operation of the tool. The grade of protection must be in relation to the risk of the operation. Rotating mounted accessories can be easily entangled by rubber coated or metal reinforced gloves. -
Page 6: Using The Tool
Do not carry or store the battery pack with metal object such as nail. Doing so may result in smoking, ignition, or rupture. If the battery pack gets hot during its use, stop using it immediately and contact your sales outlet or sales agent. ... - Page 7 How to test the torque Test method 1: Static measurement, either on a test joint or actual application. Measure the move on torque with a torque wrench. T est method 2: dynamic measurement with a rotary torque transducer on a test joint.
-
Page 8: Maintenance
Test method 3: dynamic measurement with a rotary torque transducer on the actual application. LED indicator and beeper on the tool shows the following status: S tatus of the LED indicator and S tatus of the tool A ction to be taken beeper ... -
Page 9: Intended Use
The tool should be maintained regularly to minimize the noise emission and occurring vibration. Intended use: The user or the user's employer shall assess the specific use that can be present as a result of each use. Never use the tool otherwise than the tool is designed for and as explained in this manual. Damages as a consequence of not following this manual, or caused by incorrect use or incorrect repairs, will never be covered by our warranty and we will have no responsibility for it. -
Page 10: Warranty
Warranty covers material or construction mistakes of the manufacturer, which are clearly definable. Replacement of parts or repair by an official Yokota/Red Rooster service workshop is free of charge, when the tool is covered by warranty. Freight or postage is for the account of the buyer. - Page 11 www.rami-yokota.com...
