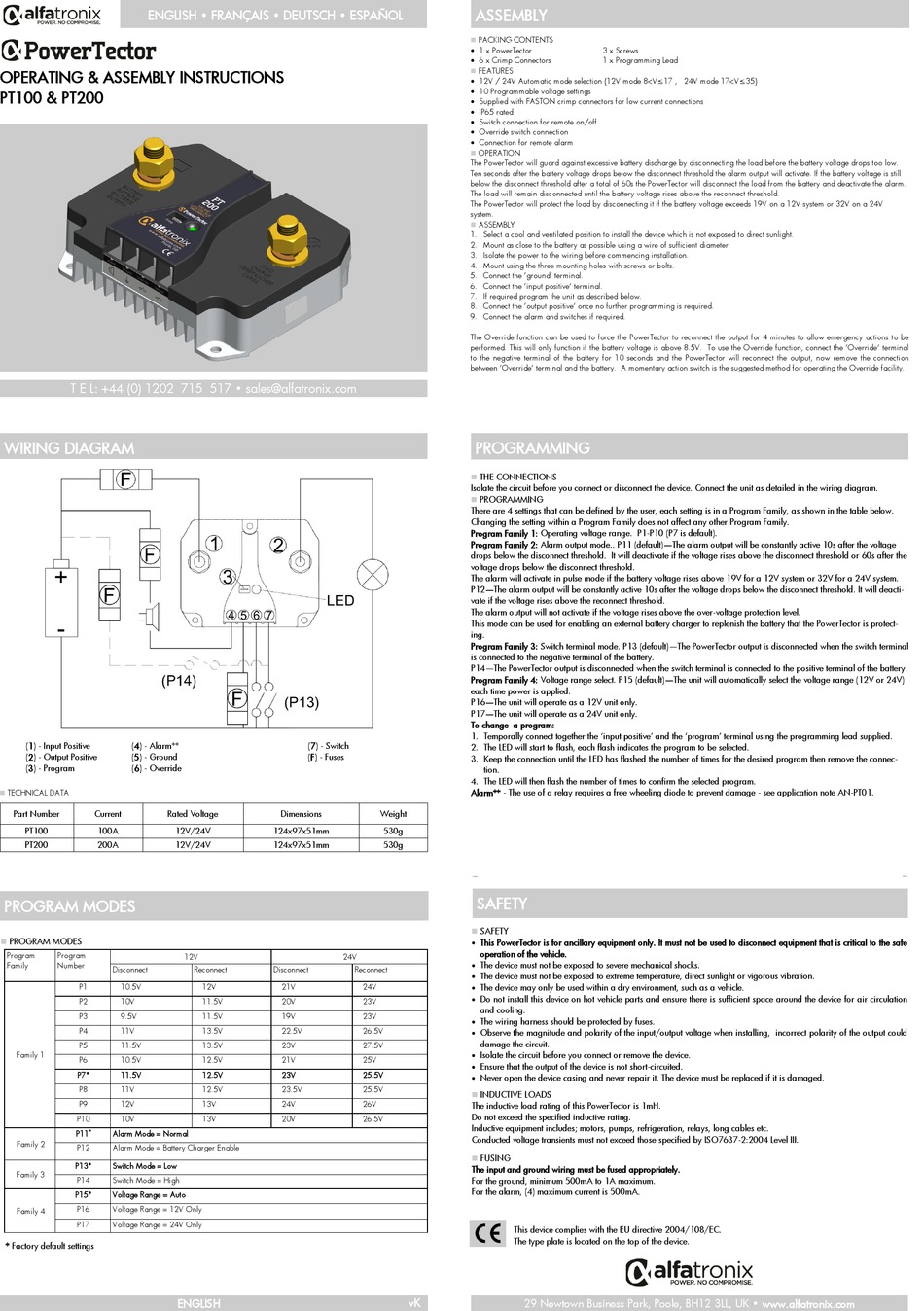

alfatronix PowerTector PT100 Operating & Assembly Instructions

ENGLISH • FRANÇAIS • DEUTSCH • ESPAÑOL
OPERATING & ASSEMBLY INSTRUCTIONS
PT100 & PT200
T E L: +44 (0) 1202 715 517 • sales@alfatronix.com
WIRING DIAGRAM
(1) - Input Positive (4) - Alarm**
(2) - Output Positive (5) - Ground
(3) - Program (6) - Override
Technical Data

Part Number Current Rated Voltage
PT100 100A 12V/24V
PT200 200A 12V/24V
Program Modes

PROGRAM MODES


Program Program
Family Number
Disconnect
P1 10.5V
P2 10V
P3 9.5V
P4 11V
P5 11.5V
Family 1
P6 10.5V
P7* 11.5V
P8 11V
P9 12V
P10 10V
P11 Alarm Mode = Normal
*
Family 2
P12 Alarm Mode = Battery Charger Enable
P13* Switch Mode = Low
Family 3
P14 Switch Mode = High
P15* Voltage Range = Auto
P16 Voltage Range = 12V Only
Family 4
P17 Voltage Range = 24V Only
* Factory default settings
(7) - Switch
(F) - Fuses
Dimensions
124x97x51mm
124x97x51mm
12V 24V
Reconnect Disconnect
12V 21V
11.5V 20V
11.5V 19V
13.5V 22.5V
13.5V 23V
12.5V 21V
12.5V 23V
12.5V 23.5V
13V 24V
13V 20V
ENGLISH
Assembly
Packing Contents

 1 x PowerTector
 6 x Crimp Connectors
Features

 12V / 24V Automatic mode selection (12V mode 8<V≤17 , 24V mode 17<V≤35)
 10 Programmable voltage settings
 Supplied with FASTON crimp connectors for low current connections
 IP65 rated
 Switch connection for remote on/off
 Override switch connection
 Connection for remote alarm
Operation

The PowerTector will guard against excessive battery discharge by disconnecting the load before the battery voltage drops too low.
Ten seconds after the battery voltage drops below the disconnect threshold the alarm output will activate. If the battery voltage is still
below the disconnect threshold after a total of 60s the PowerTector will disconnect the load from the battery and deactivate the alarm.
The load will remain disconnected until the battery voltage rises above the reconnect threshold.
The PowerTector will protect the load by disconnecting it if the battery voltage exceeds 19V on a 12V system or 32V on a 24V
system.

ASSEMBLY


1. Select a cool and ventilated position to install the device which is not exposed to direct sunlight.
2. Mount as close to the battery as possible using a wire of sufficient diameter.
3. Isolate the power to the wiring before commencing installation.
4. Mount using the three mounting holes with screws or bolts.
5. Connect the 'ground' terminal.
6. Connect the 'input positive' terminal.
7. If required program the unit as described below.
8. Connect the 'output positive' once no further programming is required.
9. Connect the alarm and switches if required.
The Override function can be used to force the PowerTector to reconnect the output for 4 minutes to allow emergency actions to be
performed. This will only function if the battery voltage is above 8.5V. To use the Override function, connect the 'Override' terminal
to the negative terminal of the battery for 10 seconds and the PowerTector will reconnect the output, now remove the connection
between 'Override' terminal and the battery. A momentary action switch is the suggested method for operating the Override facility.
Programming
The Connections

Isolate the circuit before you connect or disconnect the device. Connect the unit as detailed in the wiring diagram.

PROGRAMMING


There are 4 settings that can be defined by the user, each setting is in a Program Family, as shown in the table below.
Changing the setting within a Program Family does not affect any other Program Family.
Program Family 1: Operating voltage range. P1-P10 (P7 is default).
Program Family 2: Alarm output mode.. P11 (default)—The alarm output will be constantly active 10s after the voltage
drops below the disconnect threshold. It will deactivate if the voltage rises above the disconnect threshold or 60s after the
voltage drops below the disconnect threshold.
The alarm will activate in pulse mode if the battery voltage rises above 19V for a 12V system or 32V for a 24V system.
P12—The alarm output will be constantly active 10s after the voltage drops below the disconnect threshold. It will deacti-
vate if the voltage rises above the reconnect threshold.
The alarm output will not activate if the voltage rises above the over-voltage protection level.
This mode can be used for enabling an external battery charger to replenish the battery that the PowerTector is protect-
ing.
Program Family 3: Switch terminal mode. P13 (default)—The PowerTector output is disconnected when the switch terminal
is connected to the negative terminal of the battery.
P14—The PowerTector output is disconnected when the switch terminal is connected to the positive terminal of the battery.
Program Family 4: Voltage range select. P15 (default)—The unit will automatically select the voltage range (12V or 24V)
each time power is applied.
P16—The unit will operate as a 12V unit only.
P17—The unit will operate as a 24V unit only.
To change a program:
1. Temporally connect together the 'input positive' and the 'program' terminal using the programming lead supplied.
2. The LED will start to flash, each flash indicates the program to be selected.
3. Keep the connection until the LED has flashed the number of times for the desired program then remove the connec-
tion.
4. The LED will then flash the number of times to confirm the selected program.
Alarm** - The use of a relay requires a free wheeling diode to prevent damage - see application note AN-PT01.
Weight
530g
530g
Safety

SAFETY


This PowerTector is for ancillary equipment only. It must not be used to disconnect equipment that is critical to the safe

operation of the vehicle.
The device must not be exposed to severe mechanical shocks.

Reconnect
The device must not be exposed to extreme temperature, direct sunlight or vigorous vibration.

24V The device may only be used within a dry environment, such as a vehicle.

Do not install this device on hot vehicle parts and ensure there is sufficient space around the device for air circulation

23V
and cooling.
23V
The wiring harness should be protected by fuses.

26.5V
Observe the magnitude and polarity of the input/output voltage when installing, incorrect polarity of the output could

damage the circuit.
27.5V
Isolate the circuit before you connect or remove the device.

25V
Ensure that the output of the device is not short-circuited.

25.5V
Never open the device casing and never repair it. The device must be replaced if it is damaged.

25.5V
Inductive Loads

26V
The inductive load rating of this PowerTector is 1mH.
Do not exceed the specified inductive rating.
26.5V
Inductive equipment includes; motors, pumps, refrigeration, relays, long cables etc.
Conducted voltage transients must not exceed those specified by ISO7637-2:2004 Level III.
Fusing

The input and ground wiring must be fused appropriately.
For the ground, minimum 500mA to 1A maximum.
For the alarm, (4) maximum current is 500mA.
This device complies with the EU directive 2004/108/EC.
The type plate is located on the top of the device.
vK
29 Newtown Business Park, Poole, BH12 3LL, UK • www.alfatronix.com
3 x Screws
1 x Programming Lead
