AirOne ANT 076 Wi-Fi Car Dash Cam 2.4" LCD Color Screen FHD 1080p 170 Degree Wide Angle
Dashboard Camera Recorder with Sony Exmor Video Sensor, G-Sensor, WDR,
Loop Recording,Included 8G Memory Card
User Manual -EN.

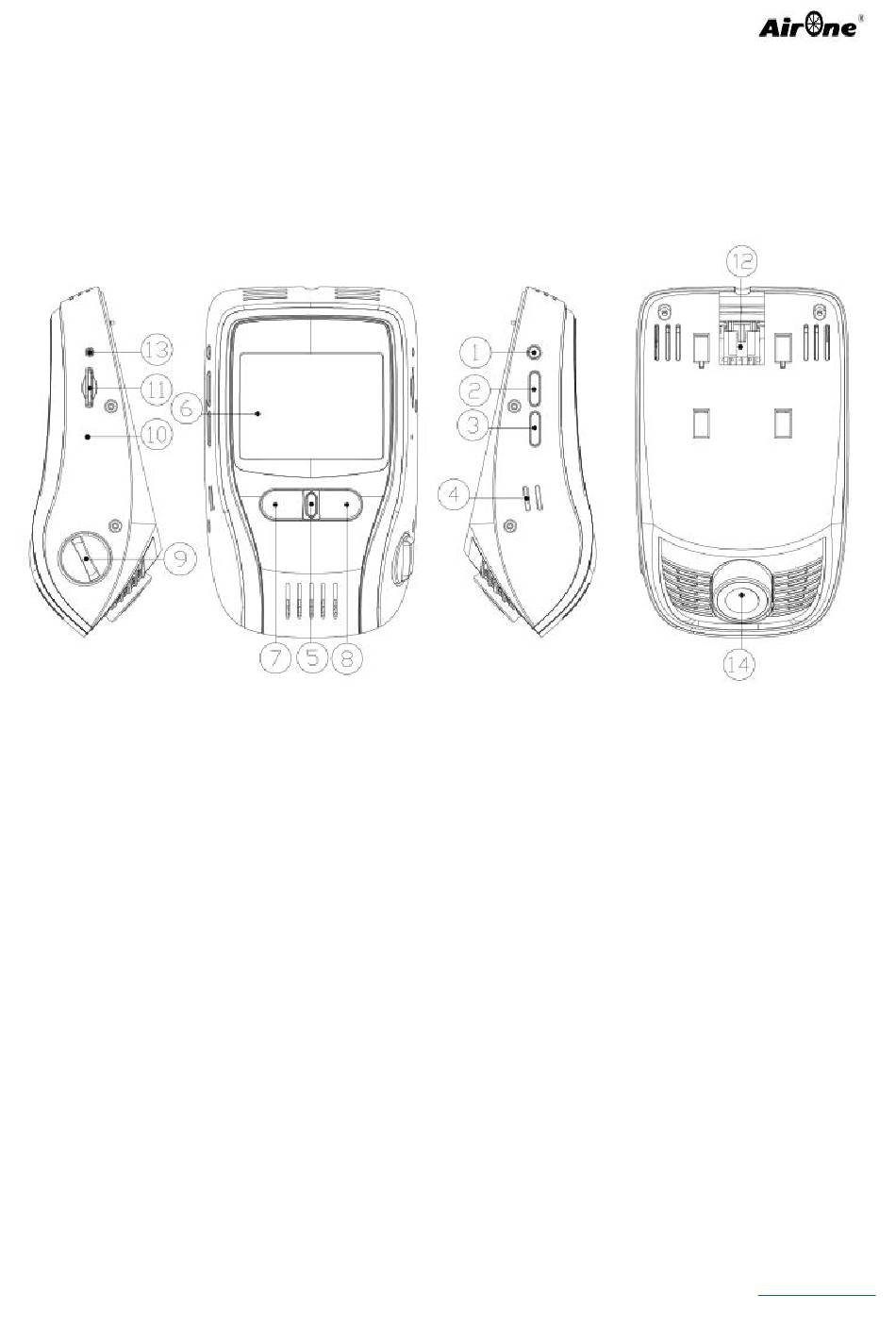

I.Product Introduction ：
01. Power: Short press: power on / Long press: power off
02.UP Key
03. Down Key
04. Speaker
05. Light Indicator
06.Screen 2.4 inch
07. Recording / OK Key
08. M / MODE KEY: On Main Menu, Short Press: Mode / Long Press: Menu; During recording: Short press: Lock the
video / Long press: Open the mute function (Note: The short press all means menu function if there is no special
version in the below.)
09. Lens buckle
10. MIC hole
11. TF card
12.Power Socket (12V)
13. Reset
14. Lens
II．Driving shooting operation
Preparatory Work: Set the car DVR to a suitable place on the car windscreen, then adjust it to the best angle, insert
the TF card and connect with the car charger.
Plug in the DVR charger to the car cigar lighter port(12V-24V), it will automatically start and default into the camera
Add:10605 Concord Street Suite 440,Kensington MD.20895
Hot Line:+1.800.895.5280;
www.bigerstone.com
Page 1 of 9
Advertisement
Related Manuals for Airone ANT 076
Summary of Contents for Airone ANT 076
- Page 1 AirOne ANT 076 Wi-Fi Car Dash Cam 2.4" LCD Color Screen FHD 1080p 170 Degree Wide Angle Dashboard Camera Recorder with Sony Exmor Video Sensor, G-Sensor, WDR, Loop Recording,Included 8G Memory Card User Manual -EN. I.Product Introduction ： 01. Power: Short press: power on / Long press: power off 02.UP Key...
- Page 2 mode to record, so as to prevent missing recording due to forget to boot. When the car is turned off, the unit will automatically shut down, and save the image data. Suggestion: In order to use this device to make the perfect recording, we recommend the following settings: 1.After inserting TF card, format the TF card at first, which can improve the compatibility of the TF card.
- Page 3 Setting of the camera MENU (in camera mode (pause video) press MENU button to enter the camera MENU Settings) : 1. Resolution: there are 1080PFHD1920×1080 / 720P 1280×720 / WVGA 848×480 / VGA 640×480 (step: press the MENU button one time - - press ◁ / ▷ the key selection resolution - - press OK to enter - - press ◁ / ▷ selection resolution parameter - - press OK key to confirm) 2.
- Page 4 Enter the setting of smart phone → open Wi-Fi → search the name of dash camera → enter password “12345678” → Connected. 4. Click on the “AirOne Dashcam”, enter APP, the UI will show as below. Add:10605 Concord Street Suite 440,Kensington MD.20895 Hot Line:+1.800.895.5280;...
- Page 5 5. Enter “DASHCAM” , the UI is as below: Note: Click Camera, it will switch to “Photo” mode. It will show “Take Photo success”. 6. Enter “CAMERA” , the UI is as below: Click camera to take photo, it will show “Take photo success” 7.
- Page 6 8. Enter “SETTING” , the UI is as below: Add:10605 Concord Street Suite 440,Kensington MD.20895 Hot Line:+1.800.895.5280; www.bigerstone.com Page 6 of 9...
- Page 7 A. Default Setting: Reset the software B. Quality Setting: Set the Definition of the image V.Precautions 9. Please insert TF card before recording, first use TF card, please first format the TF card on the machine, please Add:10605 Concord Street Suite 440,Kensington MD.20895 Hot Line:+1.800.895.5280;...
- Page 8 refer to the formatting option. Please set the time before recording. Because the system will detect the time to record, if not set the time,it may not appear video. 10. This car DVR recording mode allows you to select cyclic recording. When the storage capacity is full, the car DVR will automatically restarts recording from the original storage video and overwrites the oldest file.
- Page 9 Deutsch / Italiano / 简体中文 / 繁体中文 / Pусский / Japanese Manufacturer's Warranty - Parts 1 Year Warranty Manufacturer's Warranty - Labor 1 Year Product Name Wifi Dash camera Other Brand AirOne 680270750784 Add:10605 Concord Street Suite 440,Kensington MD.20895 Hot Line:+1.800.895.5280; www.bigerstone.com Page 9 of 9...
