Summary of Contents for Master cook SRPGT19002

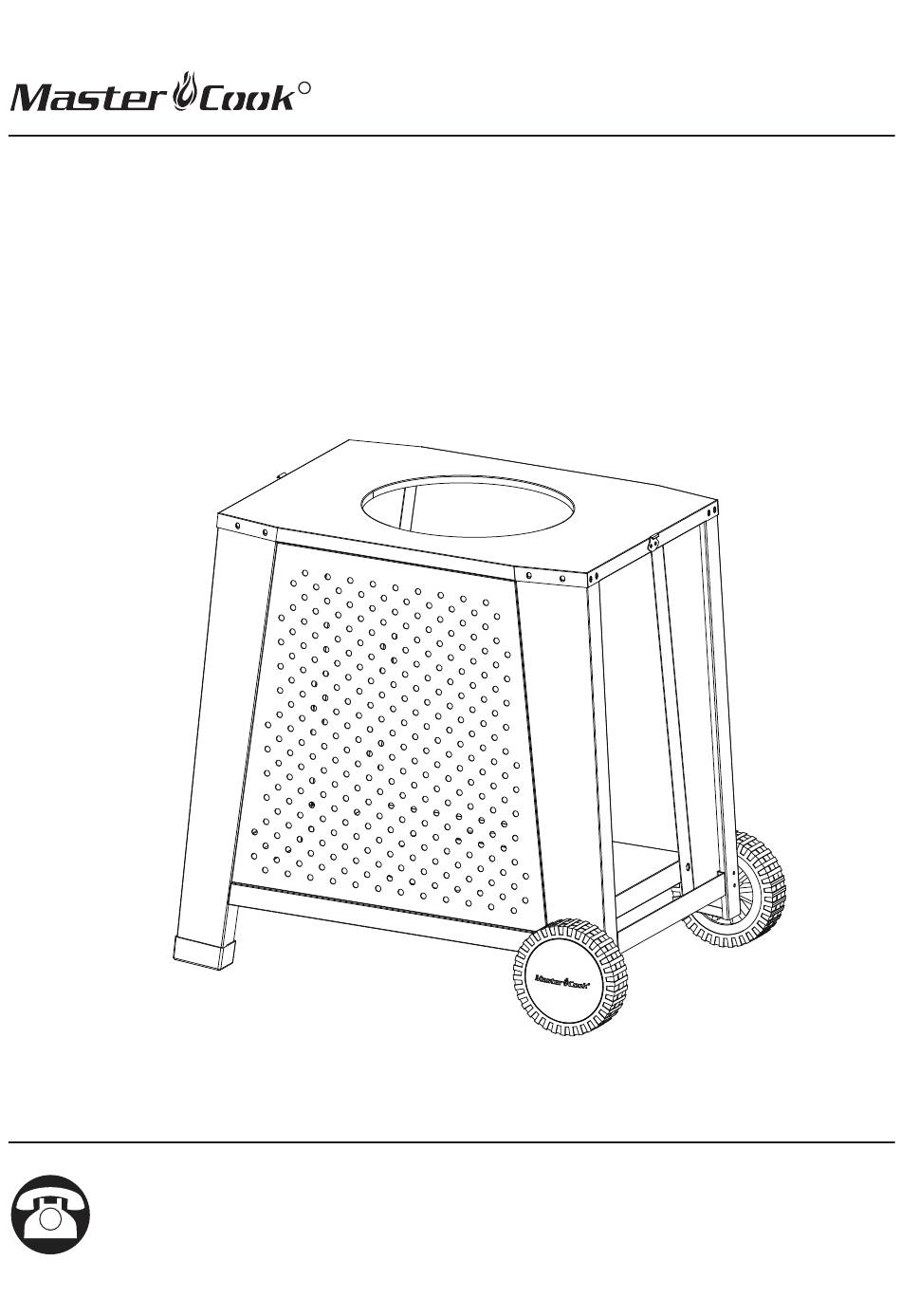

- Page 1 USER MANUAL Cart Assembly Model#: SRPGT19002 SKU# : LGG09-0019 Questions, problems, missing parts? Please call our customer service department at 1-888-909-3888, 7:30AM - 4:30PM PST, Mon. - Fri., or e-mail to cs@shinerchgroup.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Exploded View ..........................2 Part List ............................3 Assembly Instructions........................4 Connecting The Gas Grill To The Cart..................7 Connecting 20LB Gas Cylinder....................8 Gas Hook Up..........................9 Leak Testing..........................11 Warranty............................12 Read this User Manual carefully and completely before using your grill to reduce the risk of fire, burn hazard or other injury. -
Page 3: Exploded View
EXPLODED VIEW... -
Page 4: Part List
PARTS LIST Part No Quantity Part No Description Picture Quantity Description Picture Cylinder Fixing Cart Upper Panel Cart Bottom Cart Left Panel Rear Leg Cart Left Wheel Axle Front Leg Cart Front Wheel Panel Cart Right Wheel Cap Front Leg Cart Right Fixing Bar Rear Leg... -
Page 5: Assembly Instructions
ASSEMB BLY INSTRUCTIONS BBx16 Install four cart legs to the cart upper panel (H) with 16pcs bolts (BB). BBx 16: AA x4 Flip over the cart assembly, install the cart bottom panel (N) with 4pcs bolts (AA). AA x 4:... - Page 6 ASSEMB BLY INSTRUCTIONS Install 2pcs fixing bar (T) to four legs as illustrated with 8pcs bolts (BB). BB x8 BBx 8: Flip over the cart assembly Install cart front panel (K) with 4pcs bolts (AA). AA x 4 AAx 4:...
- Page 7 ASSEMB BLY INSTRUCTIONS Insert the wheel axle (P) as illustrated. Install two wheels (Q) to the wheel CCx2 axle (P) with 2pcs nuts(CC). Place two wheel caps (R) to the wheels (Q). P x1 Q x2 CCx 2: R x2 Insert the cylinder fixing rod (O) to the cart bottom panel (N).
-
Page 8: Connecting The Gas Grill To The Cart
CONNECTING 1. Make sure the burner control knob of the gas grill is in the OFF position. Install the gas grill to the cart by connecting the hasp parts which preinstalled on the cart and the gas grill. -
Page 9: Connecting 20Lb Gas Cylinder
CONNECTING 20LB GAS CYLINDER (NOT INCLUDED) TO THE GAS GRILL ASSEMBLY 1. Make sure the burner control knob of the gas grill is in the OFF position. 2. Disconnect gas canister (not included) from canister holder if there is a gas canister on the gas grill. 3. -

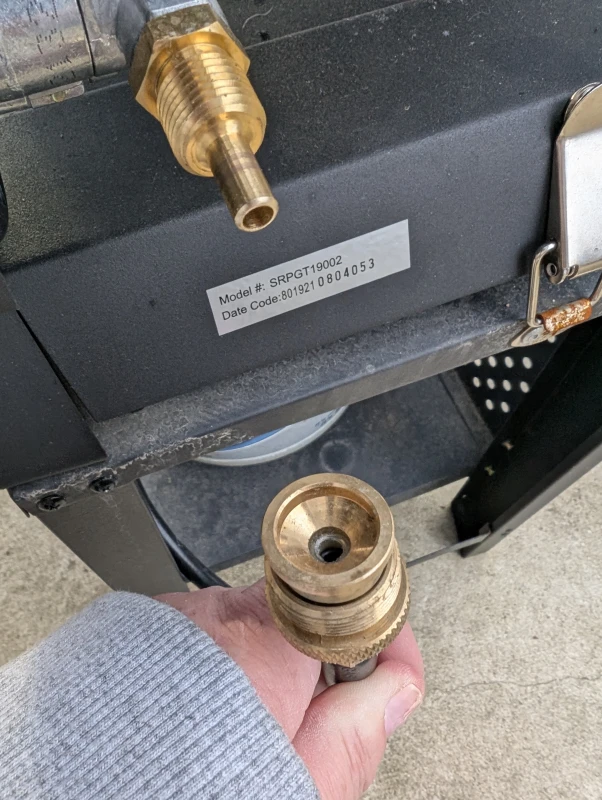

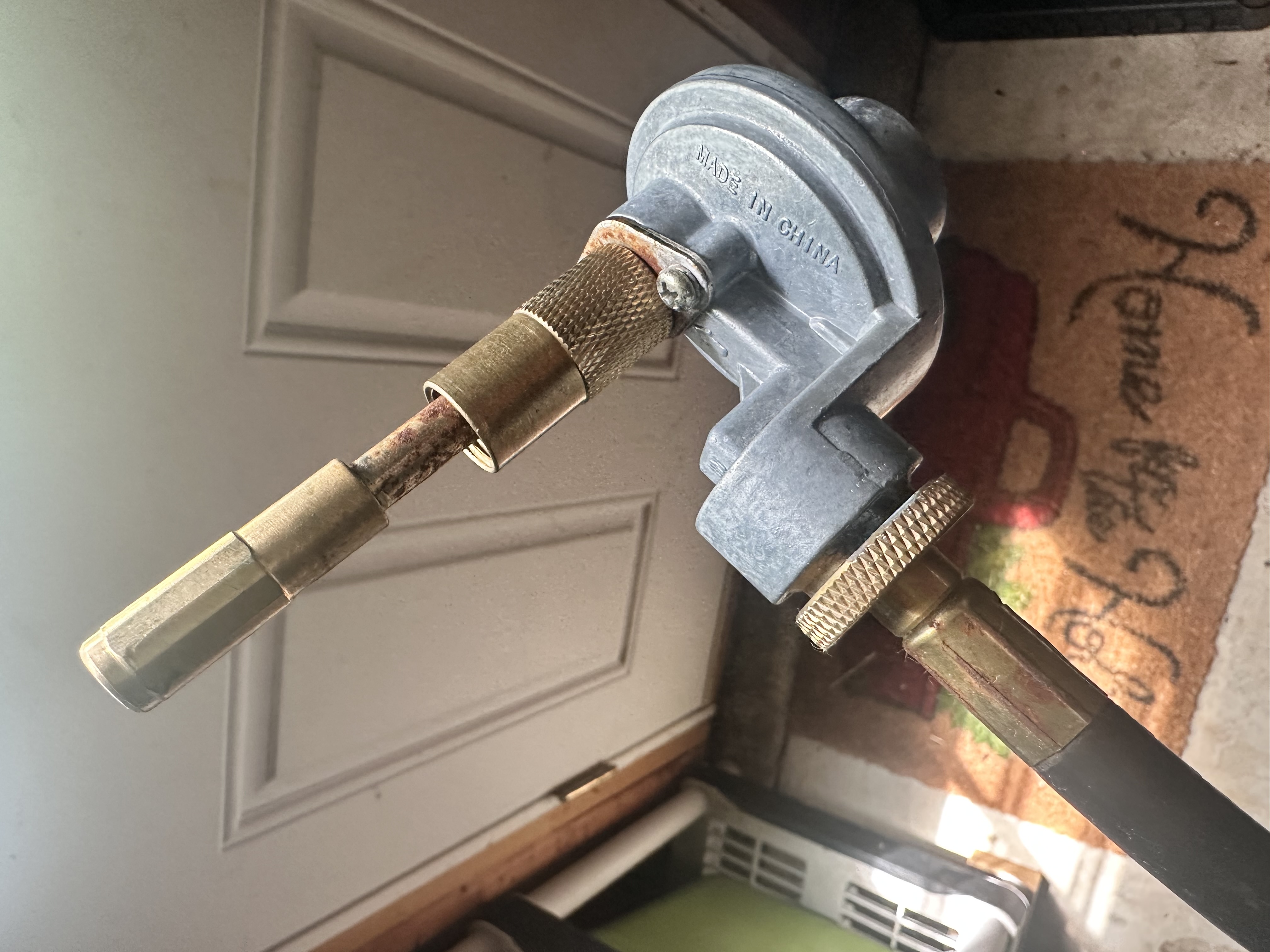

Page 10: Gas Hook Up
GAS HOOK-UP Only the hose assembly supplied with the grill should be Main Man ifold operating pressure: 11” water column used. Any hose assembly must be specified by the grill (W.C.)/2.74kPa. manufacturer. LP Gas Cylinder must be fitted with Overfill Prevention Device (OPD). - Page 11 GAS HOOK-UP To disconnect LP gas cylinder: * When your gas grill is not in use, the gas must be turned off at the LP gas cylinder.Storage of an outdoor cooking 1.Turn the burner valves off. gas appliance indoors is permissible only if the cylinder 2.Turn the cylinder valve off fully (turn clockwise to stop).
-
Page 12: Leak Testing
LEAK TESTING GENERAL GAS FLOW CHECK Although all gas connections on the grill are leak tested at Each grill burner is tested and adjusted at the factory prior the factory prior to shipment, a complete gas tightness to shipment; however, variations in the local gas supply check must be performed at the installation site due to may make it necessary to adjust the burners, the flames possible mishandling in shipment, or excessive pressure... -
Page 13: Warranty
ONE-YEAR LIMITED WARRANTY Shinerich Industrial Ltd. warrants your gas grill to be free from manufacturer’s defects in workmanship or material under normal operating conditions for one (1) year from the original date of purchase. This warranty applies if the item is available to the original purchaser only. This warranty applies only to products sold at retail.
