Summary of Contents for trimm ROLLIN

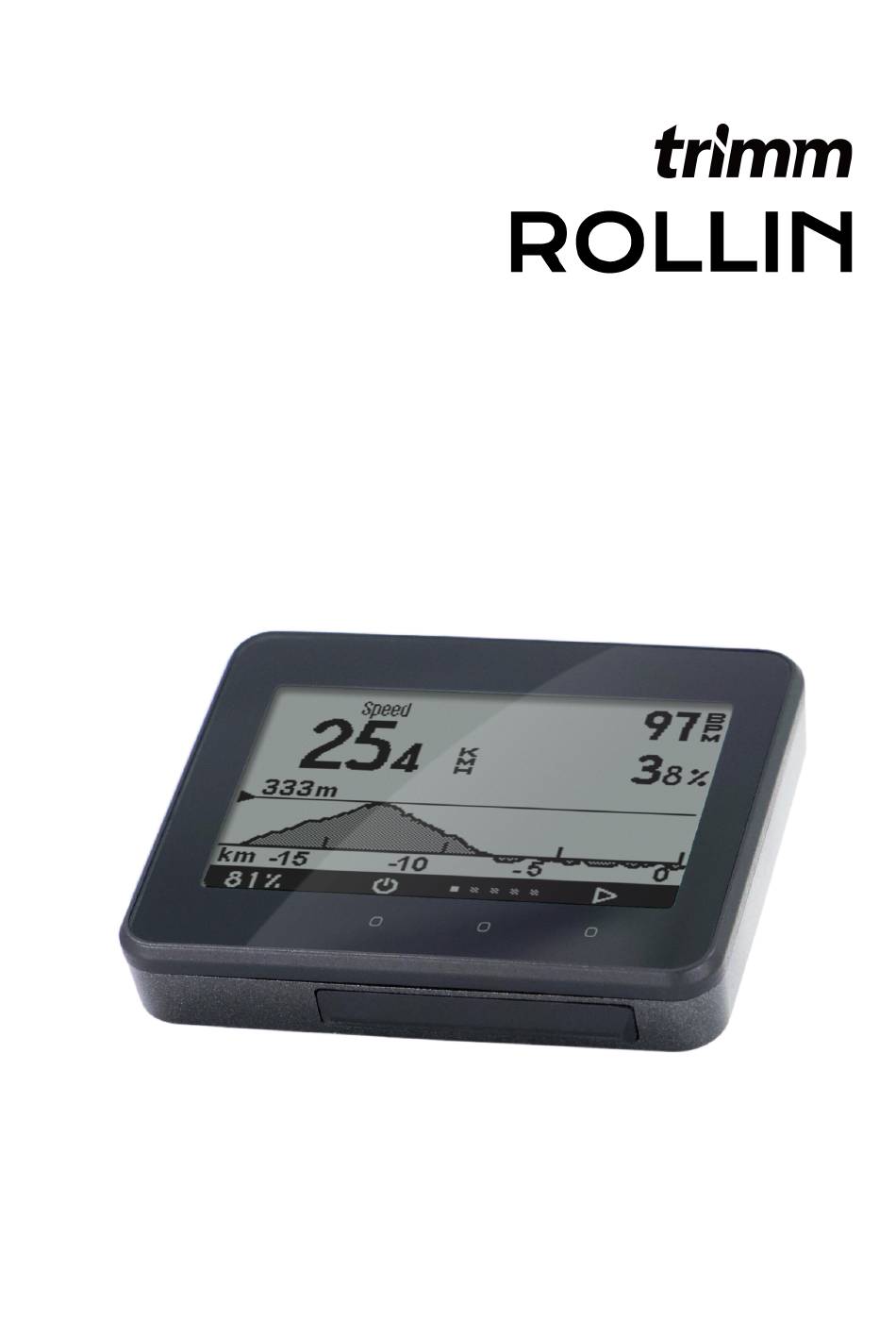

  • Page 1 User Manual...

  • Page 2: Video Guide

    ROLLIN User Manual Caution Please refer to the user manual for precautions and information on the product. Specifications are subject to change without notice for performance improvement. Video guide The link below is the video guide page. https://trimm.bike/ko/support/guideRollin Components If any items are missing, please contact the store you purchased.
  • Page 3 Speed sensor and mounting rubber bands Charge Open the rubber cover on the back of the product and charge it with the charging cable (5-pin micro). ✽This product cannot be charged with solar power. 페이지 | 2...
  • Page 4 Mounting Mounting the mount 2. Select an appropriate size rubber band and place it Prepare the mount and rubber bands on the handle. 3. After fitting the mount to the groove of the rubber band, use a 2.5mm screw and a hexagon wrench to tighten the mount.
  • Page 5 5. After inserting the device into the mount horizontally, turn it 90 degrees to affix it. Speed sensor mounting Place the rubber holder on the back of the speed sensor. 2. Hang an appropriate size rubber ring on the hook on one side of the speed sensor and place it at the wheel hub. The sensor may tilt when mounted on an asymmetric hub, but this will not affect its function.

  • Page 6: Device Connection

    3. With the rubber holder in contact with the wheel hub, attach the rubber ring on the opposite side to affix it. Pairing Download the trimm Cycling Center app Search and download ‘trimm Cycling Center’ in the App Store or Google Play Store. Simply scan the QR code below to go to the app download page. https://trimm.bike/app...

  • Page 7: Speed Sensor Connection

    Speed sensor connection 1. Connect the device and the app 2. Tap the Sensors button at the bottom or the More ▶ 3. Turn it so the speed sensor starts working. The sensor Sensors button. is also detected when rolling a wheel equipped with a sensor.

  • Page 8: Device Description

    5. When the sensor is connected, the speed sensor icon will be displayed on the status bar at the top of the device. Compatible sensors All Bluetooth and ANT+ sensors using standard protocols are compatible with this product. If you have an incompatible sensor, please contact customer center. Pairing method Sensor type Speed sensor...
  • Page 9 Power on ○●○ Center button App pairing ●○● Left button + right button Hold left button + center button Rebooting(reset) ●●○ at the same time for 10 seconds Before riding During riding Left button Center button Right button Left button Center button Right button Lap recording...
  • Page 10 Synchronization of ride recording • After riding, sync your records with your smartphone. • Unsynchronized records are compressed and saved for the next ride. • You can check and share your riding records in the trimm Cycling Center app. 페이지 | 9...

  • Page 11: Status Icon

    • There is no need to download a separate program or connect to a PC for firmware update. • The trimm Cycling Center app automatically checks for new firmware and updates. • Firmware update takes only about 2 minutes.

  • Page 12: Profile Settings

    Settings You can easily switch settings in the trimm Cycling Center app. Profile settings Bottom of the app More ▶ Profile Enter user information and customized calorie and power analysis is provided. 페이지 | 11...
  • Page 13 Data field settings 1. Connect your device and the app. 3. You can customize up to 8 pages by pressing the Edit 2. Tap More ▶ Device data fields. button. After clicking the Edit button on the page you want to delete, you can delete the page by clicking the ‘Delete’...
  • Page 14 Data field items Category Item Description Speed Current speed Maximum speed Maximum speed of the current record Speed Average speed Average speed of the current record Average lap speed Average speed of the current lap Today’s average speed Average speed for a day Distance Distance of the current record Distance...

  • Page 15: Device Settings

    Current time Current time Smartphone Battery level of connected smartphone General Temperature Temperature measured by internal sensor *Items may be added through updates. Device settings 1. Connect your device and the app. 2. Tap More ▶ Device management 페이지 | 14...
  • Page 16 Notification settings 1. Set the notification by activating the alarm. 2. Select Call, SMS, etc. to set notifications for your preference. If your phone asks for access, please allow it. * The selected notifications works in various situations including navigation. Backlight settings You can enable backlight mode.

  • Page 17: General Settings

    2. Notification time : You can set the notification display time to Long/Default/Short. 3. Battery optimization: Battery saving mode. (This feature is not available on Rollin) 4. Recording interval : You can set the recording interval to 1 sec/ 2sec/ 4sec.

  • Page 18: Language Settings

    RWGPS (Ride With GPS). Language settings The language setting of trimm Cycling Center is the same as the smartphone language setting. If you want to set a different language between the smartphone and the app, refer to the following instructions. Languages not available inside the app are displayed in English.
  • Page 19 1. Tap the Settings button at the bottom of the screen under More. 2. Tap Language at the bottom of the list. 3. Select the language. 페이지 | 18...
  • Page 20 Route plan and navigation Smartphone pairing and map function This product provides excellent map and navigation functions that were previously only available with expensive bicycle computers using your smartphone. By connecting the device to a smartphone via Bluetooth, it performs various complex tasks, such as receiving the latest map data in real time or backing up riding records in real time.
  • Page 21 Limit of responsibility for route guidance Route guidance is for reference only. Please remember that you are wholly responsible for your own route. The route may contain incorrect directions. trimm takes no responsibility for the route plans and guidance. OpenStreetMap trimm Cycling Center guides routes based on OpenStreetMap (hereinafter OSM).

  • Page 22: Plan Route

    Plan route Create a new route 1. Tap Plan in the menu at the bottom. Tap the New button at the top of the Plan screen. Please check the Limit of responsibility for route Move the map or search for a location. guidance.

  • Page 23: Edit Route

    7. You can easily plan a bike path for a return trip by pressing Change start/destination button. 8. Tap the Save button to automatically save the route to your account. 9. You can check and edit the saved route at any time, and you can edit each route title as well. Edit route Edit marker (Start, waypoint, and destination can all be changed in the same way.)
  • Page 24 4. After moving to the desired location, press the +button to change it. 5. After selecting the pin you want to delete, you can delete it by clicking the delete button created at the bottom right. Edit list 1. Tap the down arrow to open the list 2.
  • Page 25 a. You can change the order by pressing and holding the b. Click the checkbox to the left of the place you want to drag button on the right. delete to change it to delete ,and then click the Done button at the top right to delete the selected location.
  • Page 26 Priority on bicycle roads Plan the route with priority on bike roads. Shortest distance Plan the route with the fastest route in general roads. Mountain bike roads Plan the route with mountain trails. Examples of bike road options 페이지 | 25...
  • Page 27 Priority on bicycle roads Shortest distance Mountain bike roads Route check and navigation 1. Add to bookmark. 2. Edit the name. 3. Start navigation. • If the starting point is far away, you can add route guidance from your current location to the starting point. (Internet connection required) 4.

  • Page 28: Delete Route

    Import route 1. Tap the Import button in the upper right corner of the screen. 2. Import a saved GPX, TCX, FIT file. Imported route check and navigation 1. Add to bookmark. 2. Display the extension of the imported route. 3.
  • Page 29 1. Tap the Delete button at the top right of the list 2. Select the item you want to delete and tap the Delete button once more. 3. Deleted routes automatically synchronized and cannot be recovered. 페이지 | 28...
  • Page 30 Offline map Offline map download If you download the map before riding, you can use the map even when there is no internet. This is useful in places where Wi-Fi and data reception are not sufficient. 1. Tap Offline map cache under More. 2.
  • Page 31 HOME（Statistics） In ‘Home’ in the center of the menu at the bottom, check weekly/monthly/yearly statistics for your riding record. 페이지 | 30...
  • Page 32 History History check 1. Under History, tap the record to view details. 2. On the first page, you can see a summary of the record. 3. It displays information such as speed, altitude, cadence, heart rate, power, and calories in a graph. a.
  • Page 33 5. Tap the clock button at the bottom of the graph to convert the x-axis of the graph to time. 6. If you have a lap record, you can check it on the last page. If you select a lap, you can check the history of that lap in detail Share history (export to file) 1.

  • Page 34: Delete History

    Navigation with history 1. Tap the menu button in the upper right corner of the history, and then press the start riding button. 2. Navigates to the previously traveled route. No turn-by-turn information. Delete history 1. Select one record, tap the Delete button in the menu at the top right 2.
  • Page 35 Sync with Strava Sync with Strava and automatic upload settings 1. More ▶ Setting ▶ Sync with Tap the Strava button 2. Follow the instructions to log in. If you do not allow some permissions, you may not be able to sync. 3.
  • Page 36 Strava upload 1. In the History, tap the Upload to Strava button in the menu in the upper right corner 2. Tap the Upload to Strava button once more to upload your record to Strava. (Records that have already been uploaded will not be uploaded.) 페이지...
  • Page 37 Sync with Komoot 1. More ▶ Setting ▶ Sync with Tap the Komoot button. Log in to Komoot and log in to your accounts. 2. Routes in unlocked areas in Komoot are automatically synced. You can check the synchronized route on the route plan screen.
  • Page 38 Sync with TrainingPeaks 1. More ▶ Setting ▶ Sync with Tap the TrainingPeaks button. 2. Log in to TrainingPeaks and connect your account. 3. It is automatically synced in the History screen. 페이지 | 37...
  • Page 39 PC version (Web App) The trimm Cycling Center is also available on the web. This is a web application where you can plan a riding route and upload various files, as well as analyze the history in detail. Work done on the PC version is synchronized in real time, so you can check it directly on your smartphone without any extra work.

  • Page 40: Frequently Asked Questions

    Android user A. Subscription services are managed by the Google Play Store, so they are billed separately regardless of trimm ROLLIN connection. If you no longer want the service, please 'Cancel Subscription' in 'Google Play Store > Menu > Subscription'.

  • Page 41: Troubleshooting

    Navigation does not work the way I want. Can I edit it? A. If you edit the map in OpenStreetMap, you can navigate with the edited route in the trimm Cycling Center after a certain period of time.
  • Page 42 When backlight is not working. • After connecting the device and the trimm app, set the backlight to 'On' in the device settings to see if the backlight works. When water penetrates the screen.

  • Page 43: Speed Sensor

    • If there is no proof, please dry it in direct sunlight. The plastic may be damaged if dried with a fire or excessive heat When the buzzer is not working. • After connecting the device and the trimm app, turn the notification setting off and on in the device settings to check whether the buzzer works normally.

  • Page 44: Safety Guide

    • Do not use power or data cables that are not approved or supplied by the manufacturer. • When using an external battery charger, use only trimm ROLLIN accessories approved for that product. • If you use damaged cables or chargers, or charge when it's wet, it may cause fire, electric shock, injury, or damage to the device and other property.

  • Page 45: Health Warning

    Contact your local waste disposal agency and dispose of the device/battery in accordance with local laws and regulations. - When cleaning the exterior or parts of the device, first turn off the trimm ROLLIN and disconnect the power adapter. Then wipe the exterior of the trimm ROLLIN with a clean, soft, lint-free cloth dampened with water. Be careful not to let water get inside the device.

  • Page 46: Software License Agreement

    Map data information trimm ROLLIN uses both government and private data sources. Any data source has the potential to contain inaccurate or partial data. Accurate and complete map information may not be available in some countries. Limited warranty Ratio's non-aeronautical products are warranted to be free from defects in material and technology for one year from the date of purchase.
  • Page 47 action plans are exclusive and in lieu of all other warranties, explicitly, implicitly, or statutory, including any statutory or other warranties of merchantability or fitness for a particular purpose. This warranty gives the user specific legal rights that may vary by country or region. Ratio shall not be liable for any incidental, special, indirect, or consequential damages such as any traffic fines or traffic tickets arising out of its use, misuse, or inability to use this product or any defect in the device.
