LIBRA MSD-DRY-204-B Assembly/Installation Instructions

MSD-DRY-204-B

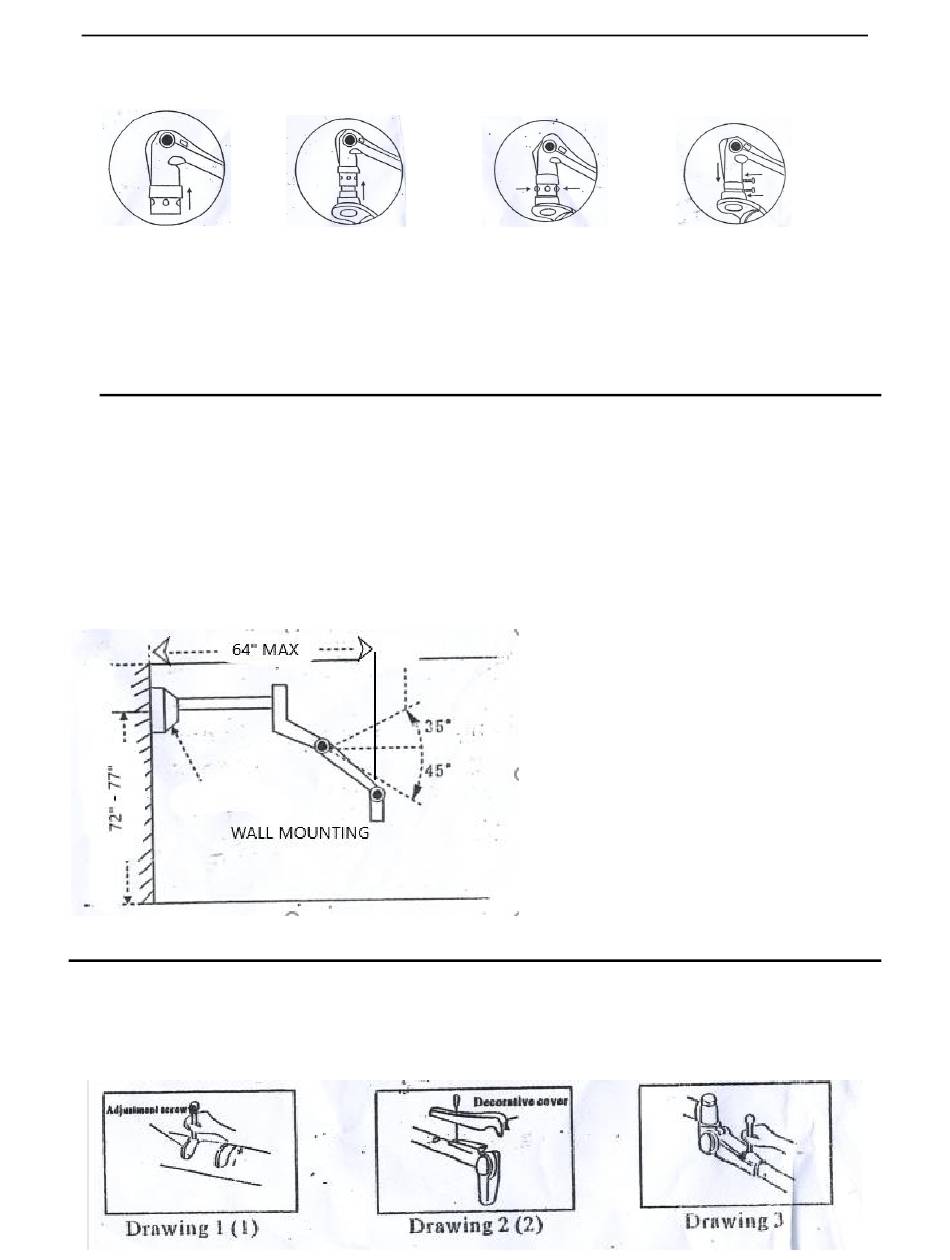

STEP 1

1) Loosen fixing screw(s) on metal locking ring, slide the ring up and expose the small holes
underneath.
2) Insert the dryer's post into the hole of movable arm support boom completely and hold in place.
3) Insert small beads into the small holes, holding all in place carefully then slide metal locking ring
down to cover the holes/beads.
4) Secure and tighten the metal locking ring using the 2 screws provided.
INSTALLING TO CONCRETE: Use concrete expansion bolts (included) to mount to concrete wall ONLY.
INSTALLING TO DRY WALL: ** NOTES **
•
You will need to purchase 1/4" toggle or molley bolts that are about 2 ½"- 3 ½" in length.
•
Be sure to install on a stud strong enough to withhold the weight of the dryer/arm support
assembly
•
Install the dryer mounting bracket on the wall at desired location with the following
recommended dimensions below.

ADJUSTING THE ARM

1) Remove the decorative cover from arm as shown in Drawing 2
2) Use tool provided to tighten or loosen as needed. (Side to side! Not like a screwdriver.)
Libra Hair Dryer Wall Arm Assembly installation Instruction

STEP 2

STEP 3

STEP 4
