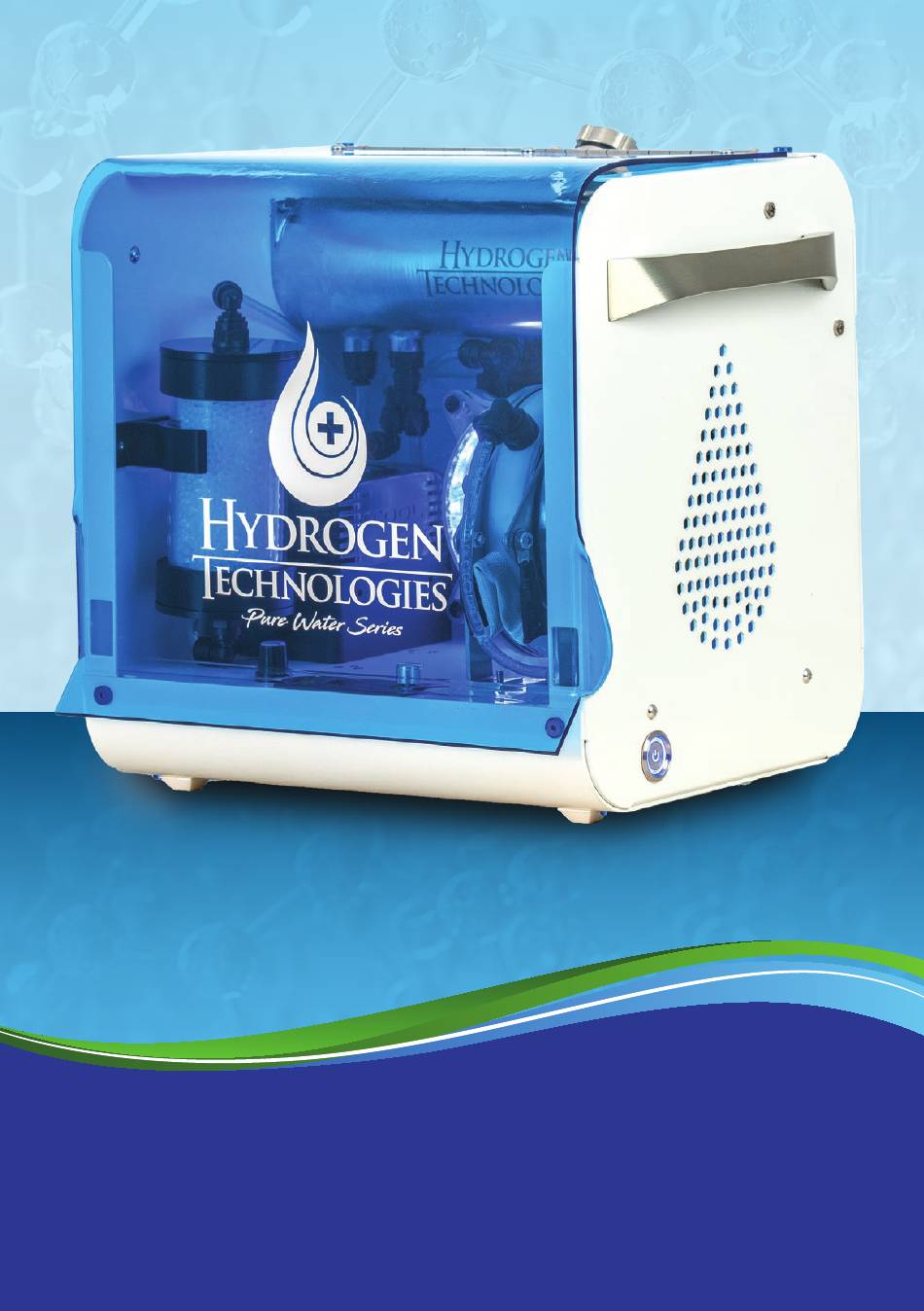

- Page 1 QB5 Hydro-Qube Operator Manual...
- Page 3 Important Notice The information contained in this manual is subject to change without notice. The producer of this manual, Hydrogen Technologies Holdings (hereafter Hydrogen Technologies), makes no warranty of any kind with regards to it, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose.
-
Page 4: Table Of Contents
Contents Introduction ..........6 General description . - Page 5 Troubleshooting ..........24 Spare Accessories .
-
Page 6: Introduction
66.6% hydrogen (in molecular form: H ) and 33.3% oxygen (in molecular form: O The gases produced can be used for various purposes. Hydrogen and oxygen have been found to have significant application in the treatment of many diseases and ailments across many species of aerobic organism. -
Page 7: Caveat
Caveat This manual, or a later version of it, may be available from the Hydrogen Technologies website. The online version may be updated from time to time and thus may not exactly match any printed version of the manual. It is recommended that before installation and first-time use of the QB5, you check the Hydrogen Technologies website to see if a later version than the manual you are now reading is available. -
Page 8: Safety
It is therefore important that the following material is read and understood before operating the QB5. If you have any concerns, do not operate the QB5 until you have discussed your concerns with Hydrogen Technologies or an authorised service agent. - Page 9 Do not use any accessories or attachments that have not been provided or authorised by Hydrogen Technologies. Do not use the QB5 outdoors. The QB5 has been designed for indoor use only. Do not let the power cord hang over a readily accessible edge of a table or counter, as this might pose a trip hazard.
-
Page 10: Parts And Accessories Supplied
Parts and Accessories Supplied The following parts and accessories were shipped with the QB5. If any are missing, contact Hydrogen Technologies. See page 30 for contact details. Auxiliary hose Diffusion stone hose Tee piece hose Silica Gel Power supply Dehumidifier sealed bag... -
Page 11: Unpacking
If it is likely that the QB5 will need to be shipped elsewhere in the future, save all the packaging. Store it beyond the reach of children and in a place where it will not deteriorate. © Hydrogen Technologies 2021... -
Page 12: Components
Components QB5 view The components are described in detail in section 5.2 on page 13. 13 12 Figure 1: Main components of the QB5 Main power button Dehumidifier canister Display, power control & ON/OFF button Dehumidifier canister housing bracket Internal light control switch Drainage port Power supply connection point Condensation drainage valve button... -
Page 13: Rear View
Gas discharge port Port where the generated gas is discharged. Electrolysis cell Tank where the electrolysis occurs. Uses a proton-exchange membrane (PEM). Dehumidifier canister Collects excess condensation. Dehumidifier canister Bracket for attaching the dehumidifier canister. housing bracket © Hydrogen Technologies 2021... - Page 14 Components in detail (cont.) Drainage port For removing condensation fluid. Condensation When pressed, drains any condensation that has collected in the gas discharge line and dehumidifier canister. drainage valve button Condensation should be drained regularly and the volume that collects will depend on the environment where the QB5 is used (see section 8.3 on page 23).
-
Page 15: Commissioning
[17] and is locked in place. You will hear a click as the fitting is locked in place. 8. Connect the gas delivery line [16] to the top of the dehumidifier canister. 9. Close the front panel. © Hydrogen Technologies 2021... - Page 16 10. Connect the DC power cable to the power supply connection point [4] on the back of the QB5. Note that the flat surface of the plug must be facing upwards (as in Figure 2 below). Figure 2: Connecting the DC power cable 11.
-
Page 17: Operation
Remove the cap from the water tank 2. Check the water level and add water if necessary. The recommended maximum volume of water is 1 litre. Do not over-fill the water tank. 3. Refit the cap. © Hydrogen Technologies 2021... -
Page 18: Attach Hose
7.1.2 Attach a hose Three hoses are supplied with the QB5: • a diffusion stone hose • an auxiliary general hose for transferring gas to an auxiliary device of the user’s choosing. • a tee piece hose. Attach the appropriate hose to the gas discharge port (Figure 3). Figure 3: Connecting a hose to the gas discharge port QB5: Operation Manual... -
Page 19: Gas Production
During gas production, the actual values for voltage (green), current (yellow) and power (purple) are shown on the next three rows of the display. Figure 5 (page 20) shows sample values during a gas production run. © Hydrogen Technologies 2021... - Page 20 Figure 5: Sample display during gas production 3. If you want to change the maximum current: Press the button. Labelled B in Figure 6 below. Turn the power dial—labelled E—clockwise to increase the maximum current or anticlockwise to decrease the maximum current. To set a more precise value, push the power dial in.
-
Page 21: Enriching Water
To turn the QB5 off completely, press the main power button. Item 1 on Figure 1 on page 12. Enriching water To enrich water with molecular hydrogen and oxygen: Connect the diffusion stone hose to the gas discharge port (see section 7.1.2 page 18). -
Page 22: Maintenance
Maintenance WARNING: Before conducting any maintenance tasks on the QB5: • depressurise it by removing the water tank cap and • electrically isolate it by switching off the main power and removing the power cord from the mains power supply. Described in Task How Often... -
Page 23: Draining Condensation
This same procedure should be followed if the QB5 has been tipped or has fallen over, or if a tank has been over-filled. The procedure will clear any spillage that has occurred internally. © Hydrogen Technologies 2021... -
Page 24: Troubleshooting
The display may go or fan not working white or blank during If mains power is available, contact Hydrogen prolonged or Technologies. (see page 30 for details) extensive use of the condensation control... -
Page 25: Spare Accessories
Spare parts and accessories Contact Hydrogen Technologies should you need any of the following spare accessories. See page 30 for contact details. • Dehumidifier canister • Dehumidifier beads • Auxiliary hose • Diffusion stone hose • Tee-adapter hose • Power supply (external DC 24V) •... -
Page 26: Technical Specifications
Stainless steel: 316L (components); Aluminium (body) Environmental Operating temperature 5˚C to +45˚C Storage temperature 0˚C to +50˚C Cell operating temperature 30˚C to 40˚C Gas production Hydrogen 66.6% Oxygen 33.3% Productivity Capability 250ml to 500 ml per minute Recommended 450 ml Regulatory and approvals Regulatory •... - Page 27 © Hydrogen Technologies 2021...
- Page 28 QB5: Operation Manual...
- Page 29 © Hydrogen Technologies 2021...
-
Page 30: Legals
12 months from date of purchase back to base. This warranty extends to the original buyer only. Within the period of this warranty, Hydrogen Technologies will repair or replace, free of charge, any part proving defective in material and workmanship. All warranty repairs and service must be performed by an authorised Hydrogen Technologies technician, or at an authorised Hydrogen Technologies service facility. - Page 31 Other products from Hydrogen Technologies HYVO-TECH Combo Series Moleculizer 810 (HVC 5,000) (M810) © Hydrogen Technologies 2021...
