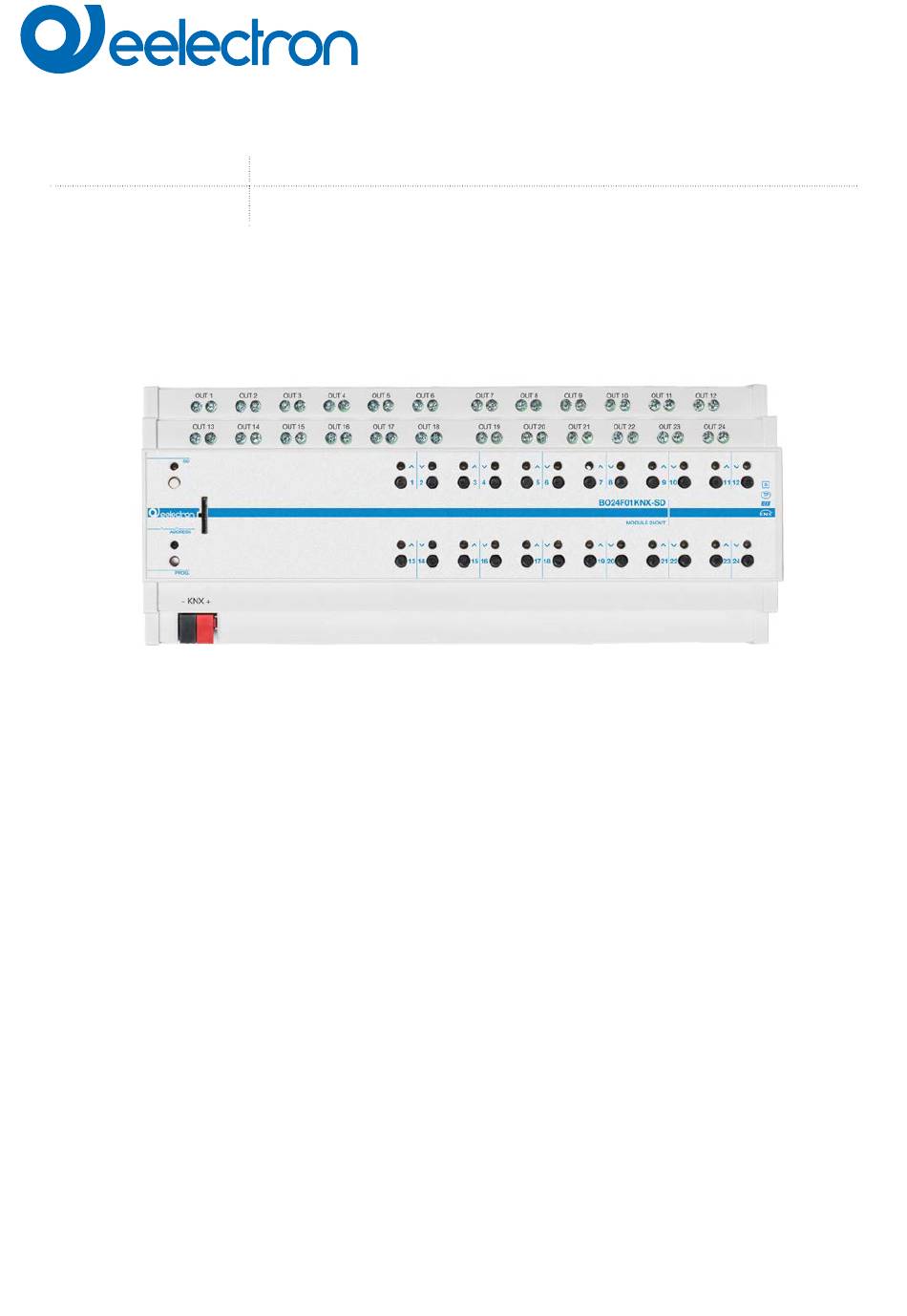

- Page 1 BO24F01KNX Universal Actuator 24 Outputs Plus BO24F01KNX- SD Universal Actuator 24 Outputs Plus with SD-CARD USER MANUAL Translation of the original instructions Version: 1.0 Date: 28/06/2022...
- Page 2 BO24F0KNX | BO24F01KNX-SD Index General introduction .................................. 4 Product overview ..................................4 Installation instructions ................................4 SD CARD ....................................4 General parameters .................................. 5 Outputs ..................................... 5 Block A – 1 Relay ..................................5 Block B – 2 Relays ..................................5 Block C –...
- Page 3 BO24F0KNX | BO24F01KNX-SD Any information inside this manual can be changed without ad- vice. This handbook can be download freely from the website: www.eelectron.com Exclusion of liability: Despite checking that the contents of this document match the hardware and software, deviations cannot be completely exclu- ded.
-
Page 4: General Introduction
2. Product overview For further information please visit: www.eelectron.com BO24F01KNX is designed to be installed in Home and Building 4. SD CARD installations (for ex. offices, hotels, private houses, etc...). Main functions of outputs... -
Page 5: General Parameters
BO24F0KNX | BO24F01KNX-SD The microSD card must be inserted into the d e v i c e Functional blocks description before any update or modification with ETS to save the new downloaded configuration. Relays can be used individually or in combination with other re- lays to obtain more functions, the blocks are called A - B - C - D - E - F , each block can perform one of the following functions>. -
Page 6: Global Objects
BO24F0KNX | BO24F01KNX-SD OBJECTS RELATED TO ALL OUTPUTS Block C – 3 Relays “<Global All> All Valve Closed” 1 bit It is an object connected to the outputs that manage the valves and Block C identifies the functions related to 3 coupled relays that...
