INSTALLATION MANUAL FOR PRODUCT CODE OD-5932
PRODUCT NAME : MINI SONIC GEAR-ARM
: MINI SONIC ARM LED
Applicable lamp
No.
1.
220-240V 50-60Hz QR-CB51 50W
2.
220-240V 50-60Hz QT12 50W
3.
220-240V 50-60Hz QT12 50W
4.
220-240V 50-60Hz HIPAR51-CE-P 20W
5.
220-240V 50-60Hz LED 13W 3000K
6.
220-240V 50-60Hz LED 13W 3000K
7.
220-240V 50-60Hz LED 13W 3000K
8.
220-240V 50-60Hz LED 13W 4000K
9.
220-240V 50-60Hz LED 13W 4000K
10.
220-240V 50-60Hz LED 13W 4000K
1
2
FOR LED LAMP/สํ า หรั บ หลอด LED
จุ ด
4 Point/
Last Revised On : 09/06/2014 REV.01
Ordering Code
5932-0-3-281-XX
5932-5-3-295-XX
5932-6-3-295-XX
5932-0-3-747-XX
5932-5-3-901-XX
5932-6-3-901-XX
5932-7-3-901-XX
5932-5-3-904-XX
5932-6-3-904-XX
5932-7-3-904-XX
60°
90°
101
171
1
2
IP65
IK08
BODY
1
Tungsten Halogen
GU5.3
4
Metal Halide
GX10
2
1
4 Point/จุ ด
จุ ด
4 Point/
1/4
2 3
,
Tungsten Halogen
GY6.35
5
6
, 7 8 ,
,
Light Emitting Diodes
(LED)
3
2
4
5
FR-DM-17 REV.01 EFF 08/05/12
, 9 10
,
Advertisement
Related Manuals for Unilamp Mini SONIC OD-5932
Summary of Contents for Unilamp Mini SONIC OD-5932

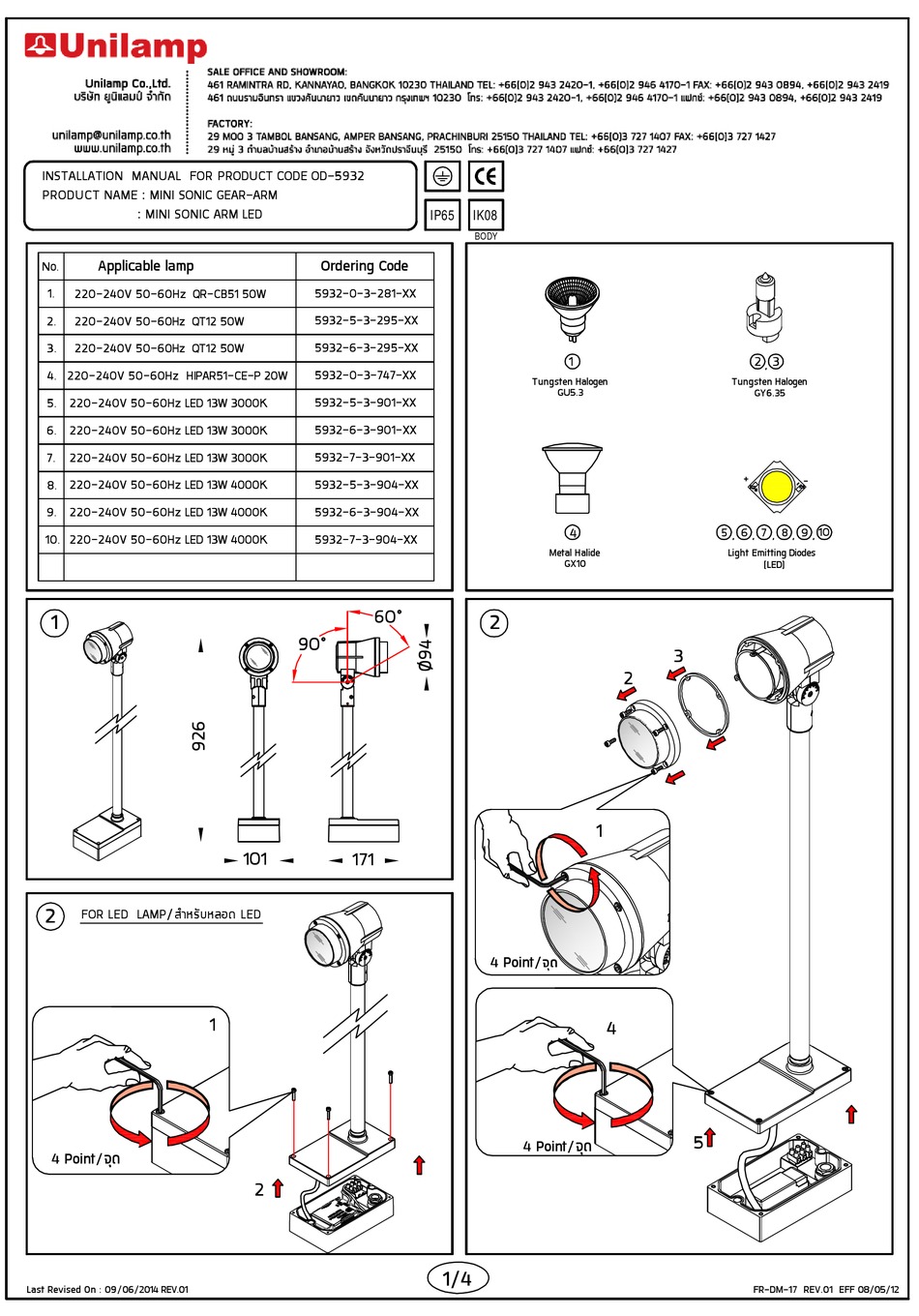

- Page 1 INSTALLATION MANUAL FOR PRODUCT CODE OD-5932 PRODUCT NAME : MINI SONIC GEAR-ARM IP65 IK08 : MINI SONIC ARM LED BODY Applicable lamp Ordering Code 220-240V 50-60Hz QR-CB51 50W 5932-0-3-281-XX 5932-5-3-295-XX 220-240V 50-60Hz QT12 50W 5932-6-3-295-XX 220-240V 50-60Hz QT12 50W 220-240V 50-60Hz HIPAR51-CE-P 20W 5932-0-3-747-XX Tungsten Halogen Tungsten Halogen...
- Page 2 SCREW SIZE WALL PLUG ANCHOR SIZE ขนาดสกรู เ กลี ย วปล อ ย ขนาดพลุ ก ฝ ง ผนั ง ∅ ∅ 7 mm./มม. 4 mm./มม. 37 mm./มม. 38 mm./มม. Use the rubber seal according to the size of the cable. เลื...
- Page 3 REMARK : WARNING : หมายเหตุ ข อ ควรระวั ง INSTALLATION SHOULD BE CARRIED OUT BY A QUALIFIED THE MANUFACTURER WILL NOT BE LIABLE OR HELD ELECTRICIAN IN ACCORDANCE WITH APPROPRIATE RESPONSIDLE FOR ANY INCORRECT INSTALLATION , MISUSE NATIONAL WIRING REGULATION. OR IMPROPER USE AND UNAUTHORISE MODIFICATION ON THE FITTINGS.
- Page 4 A damaged safety glass cover must be replaced only with the original spare part. เมื ่ อ กระจกเกิ ด ความเสี ย หาย เพื ่ อ ความปลอดภั ย ควรสั ่ ง อะไหล แ ท จ ากผู ผ ลิ ต เท า นั ้ น Environmental protection: Waste electrical products should not be disposed of with household waste.
