- Page 1 User Manual Laser Level PR-81...

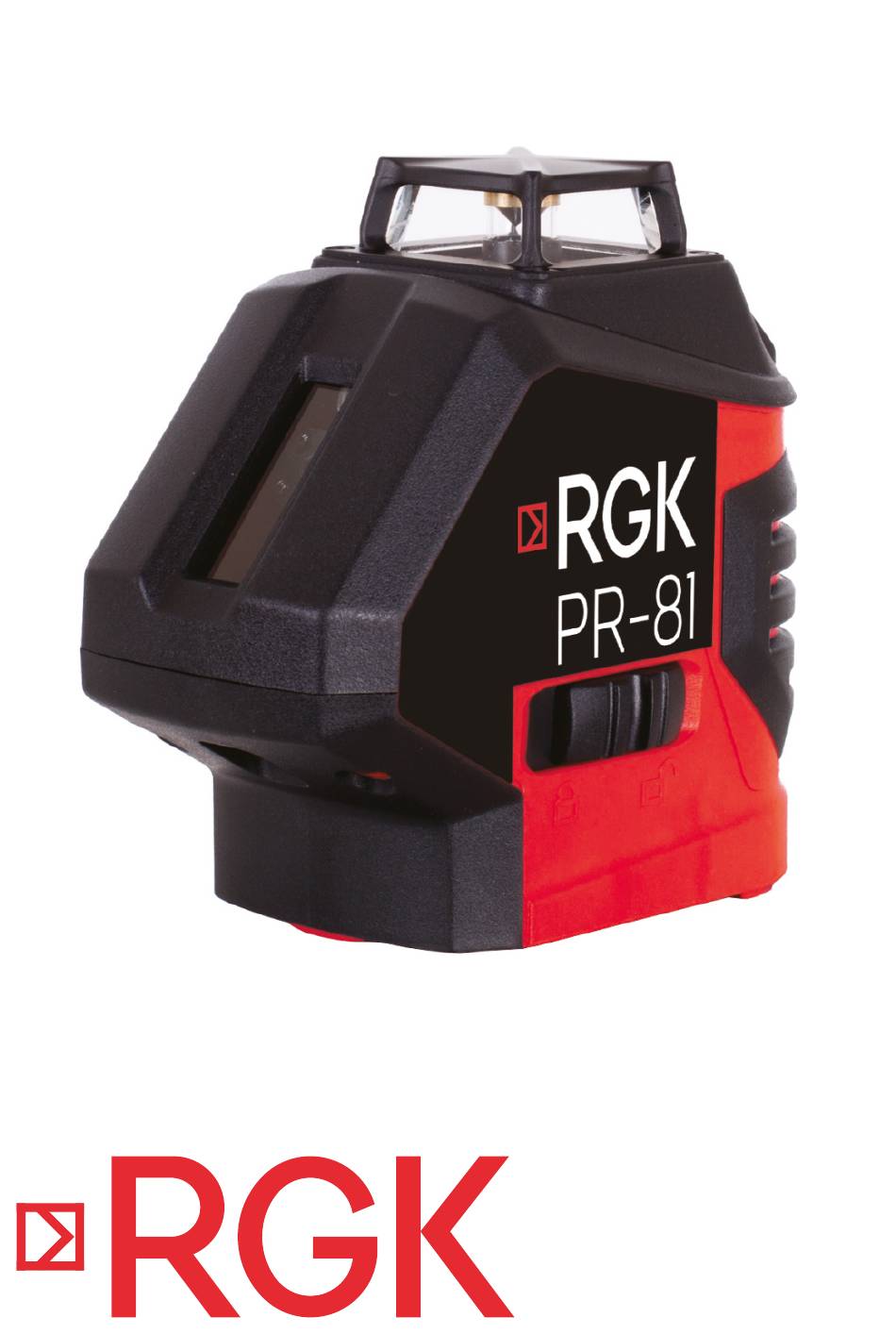

- Page 3 Do not dispose of batteries with household waste. Dispose of them according to local regulations. Laser level RGK PR-81 projects visible laser planes. This allows to perform various tasks in construction and repair, including leveling, construction of vertical and horizontal planes. The device can be used both indoors and outdoors.
- Page 4 Device composition 1. Laser emitter windows 2. Control panel 3. Pendulum lock switch 4. 1/4” tripod socket 5. 5/8” tripod socket 6. Battery compartment cover Getting started Before starting work, place the level on a work surface or fasten it to a tripod, pole, or wall mount. The device can operate in two main modes:...
- Page 5 1. Pendulum lock: switch on the left This line laser is a precision instrument that must be handled with care. When not in use, the pendulum must always be in position Locking the pendulum allows the instrument to better withstand vibration and prevent possible damage during transport or as a result of a fall.
- Page 6 Control panel Pulse indicator Battery indicator Pulse mode button Line selection button Additional functions Compensator lock With the instrument pendulum locked (switch on the left side), press and hold the line select button for 3 seconds to activate the compensator lock mode. The device emits laser beams in this mode, but the accuracy is not adjusted, because the pendulum is locked.
- Page 7 Compensator Lockout Mode Activated Signal: The laser beam will flash every 5 seconds to remind you that the laser auto-align is off. Signaling Horizontal deviation signal If the pendulum is not locked and the angle of inclination of the level does not exceed 4°, the instrument is in automatic leveling mode.
- Page 8 Plane curve 1. Install the appliance at a distance of about 5 m from the wall. 2. Mark a point at the center of the laser cross. 3. Turn the instrument so that the point is shifted about 2.5 m to the side and make sure that the deviation of the horizontal line from the mark does not exceed the accuracy specified in the specifications of the instrument.
-
Page 9: Specifications
Specifications Accuracy ±0,2 mm/1 m Auto-leveling ±4° Operating range without receiver 20 m Range of operation with the receiver 80 m Tripod thread 1/4”, 5/8” Laser type 635 nm, class II Usage temperature range -10 °C to 50 °C Dimensions 119 ×... - Page 10 Caring for the device Your level is a precision measuring instrument, handle it with care. After each use, clean the level of dust with a soft cloth, dampening it with water if necessary. Always wipe the appliance dry. Do not store the device in wet or humid conditions. When transporting, block the compensator by setting the switch to position .
