Summary of Contents for Reed Instruments R8500

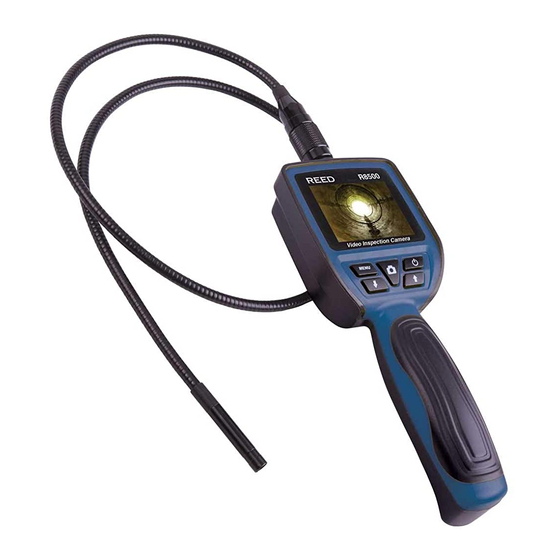

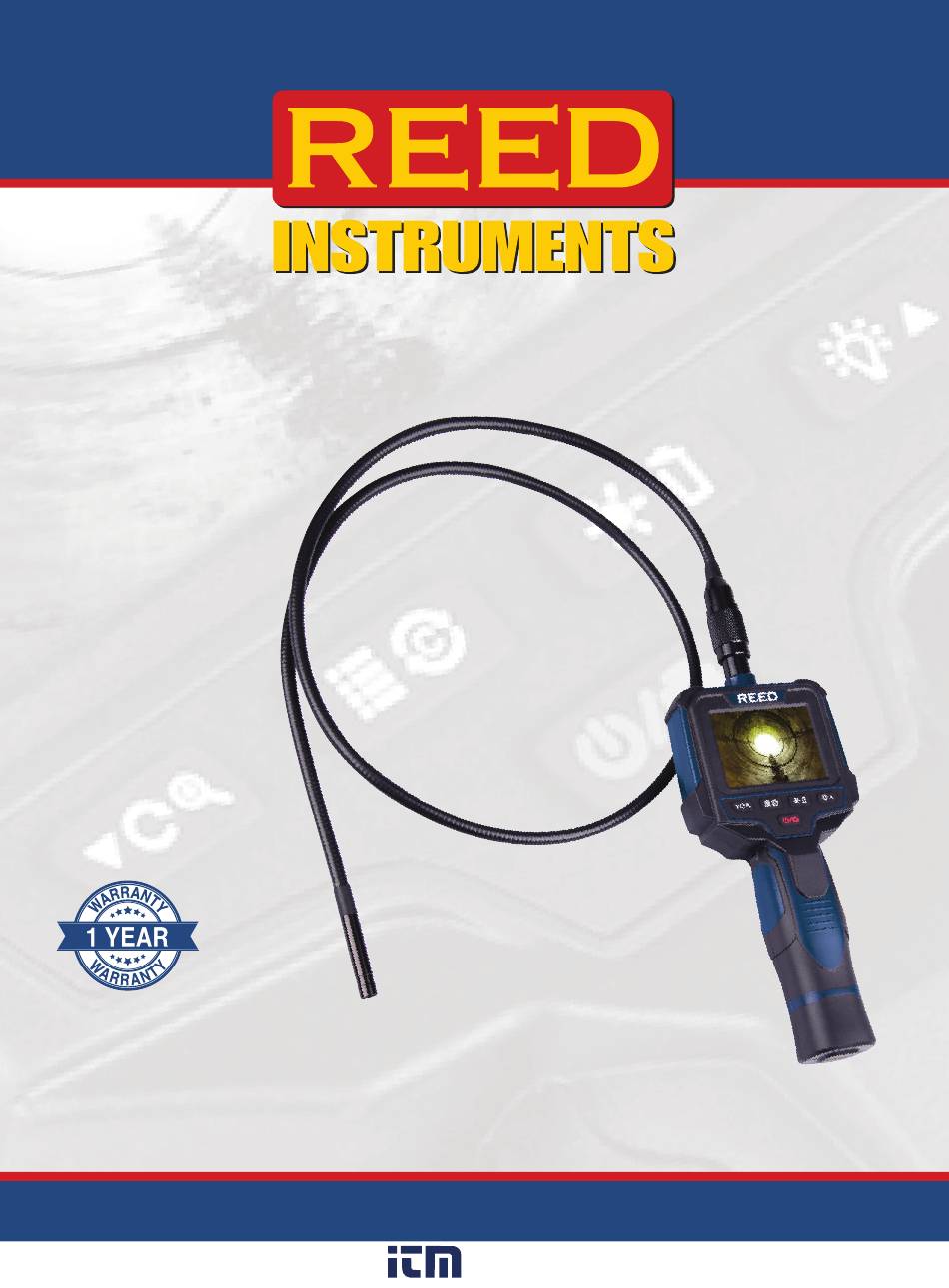

- Page 1 R8500 Video Inspection Camera Instruction Manual www.REEDInstruments.com 1.800.561.8187 information@itm.com www. .com...
-
Page 2: Table Of Contents
Table of Contents Intoduction....................2 Product Quality................... 2 Safety ......................2 Features ...................... 4 Included ...................... 4 Specifications..................... 5 Instrument Description ................6 Display Description..................6 Operating Instructions ................7-8 Camera and Video Operation ..............9-10 Battery Replacement ................11 Applications..................... 11 Accessories and Replacement Parts............ -
Page 3: Product Quality
Introduction Thank you for purchasing your REED R8500 Recordable 8 mm Video Inspection Camera. Please read the following instructions carefully before using your instrument. By following the steps outlined in this manual your meter will provide years of reliable service. -
Page 4: Features
Features • Camera and video functions save high resolution images and video • Comfortable pistol grip design • High resolution 2.7" color LCD monitor • 8mm waterproof (IP67) camera head • Gooseneck cable retains configured shape • Cable expandable up to 30 ft. (~9m) with extensions (optional) •... -
Page 5: Specifications
Specifications Camera Lens Sensor Resolution: 640 x 480 Camera Diameter: 0.31" (8mm) Short Distance Focus: 1.18 to 3.15" (3 to 8cm) Depth of Field: 10mm to infinity Viewing Angle: 30mm to 80mm General Specifications Display: 2.7" Color TFT LCD Display Resolution: 320 x 240 LCD Brightness Adjustment: Yes (12 levels) -
Page 6: Instrument Description
Instrument Description Rotate Image/Zoom/Playback/Menu Select button Menu/Monochrome and Color Mode button LCD Brightness/Picture-in-Picture Mode/Delete button LED Brightness/Previous Menu button Power/Image Capture and Video Recording button Display Description 1. Image capture/Video recording mode icon 2. Display orientation icon 3. LCD brightness icon 4. -
Page 7: Operating Instructions
Operating Instructions Power ON/OFF Before using the unit for the fi rst time: Ensure the time and date have been set Ensure the SD card has been inserted Press to switch the device on. The camera image will appear on the screen. -
Page 8: Camera And Video Operation
LCD Backlight Press to adjust the display brightness between 12 levels. Monochrome/Color Display Mode Press and hold the button for 1.5 seconds to toggle between monochrome and color display modes. Picture-In-Picture Mode Press and hold the button for 1.5 seconds. This feature will hold the image on screen in the bottom left corner of the display. - Page 9 Video Mode The Video Mode records video on the inserted SD card. Press to enter the menu screen. Scroll down to "VIDEO MODE" and press . The screen will return to the camera and a video camera icon will be shown in the top left corner indicating the camera is in Video Mode.
- Page 10 Setting Date and Time Press button to access the menu. Scroll down and select "SETTING" and press to enter the Setting screen. Scroll down and select "DATE AND TIME". Use the navigation keys to select the year, month, day, hour, minute and second values. Auto power off Press button to access the menu.
-
Page 11: Battery Replacement
• R8500-3MEXT 3m Cable Extension • R8500-3.9MM 3.9mm Camera Head • R8500-5M9MM 9mm Camera with 5m Cable • R8500-20M 9.8mm Camera on 20m Cable Reel • R8500-ART 5.5mm Camera with Articulating Head • RSD-16GB 16GB Micro SD Memory Cardd with Adapter Don’t see your part listed here? For a complete list of all accessories and... -
Page 12: Troubleshooting
Troubleshooting Display Icon Issue/Solution Camera is not connected/Connect Gooseneck camera. Camera loading/Wait, if issue persists try formatting SD card. SD memory card is full/Format card or insert another card with space to record. Cannot record/Insert memory card if no memory card is in camera. -
Page 13: Product Warranty
REED Instruments guarantees this instrument to be free of defects in material or workmanship for a period of one (1) year from date of shipment. During the warranty period, REED Instruments will repair or replace, at no charge, products or parts of a product that proves to be defective because of improper material or workmanship, under normal use and maintenance. - Page 14 TEST & MEASURE WITH CONFIDENCE CHECK OUT OUR LATEST PRODUCTS! www.REEDInstruments.com 1.800.561.8187 information@itm.com www. .com...
