Fantec NVMePCIe TR-1 Tray Manual

Manual NVMePCIe TR-1 Tray
Manufacturer Article No.: 2517
EAN: 4250273425178

Introduction

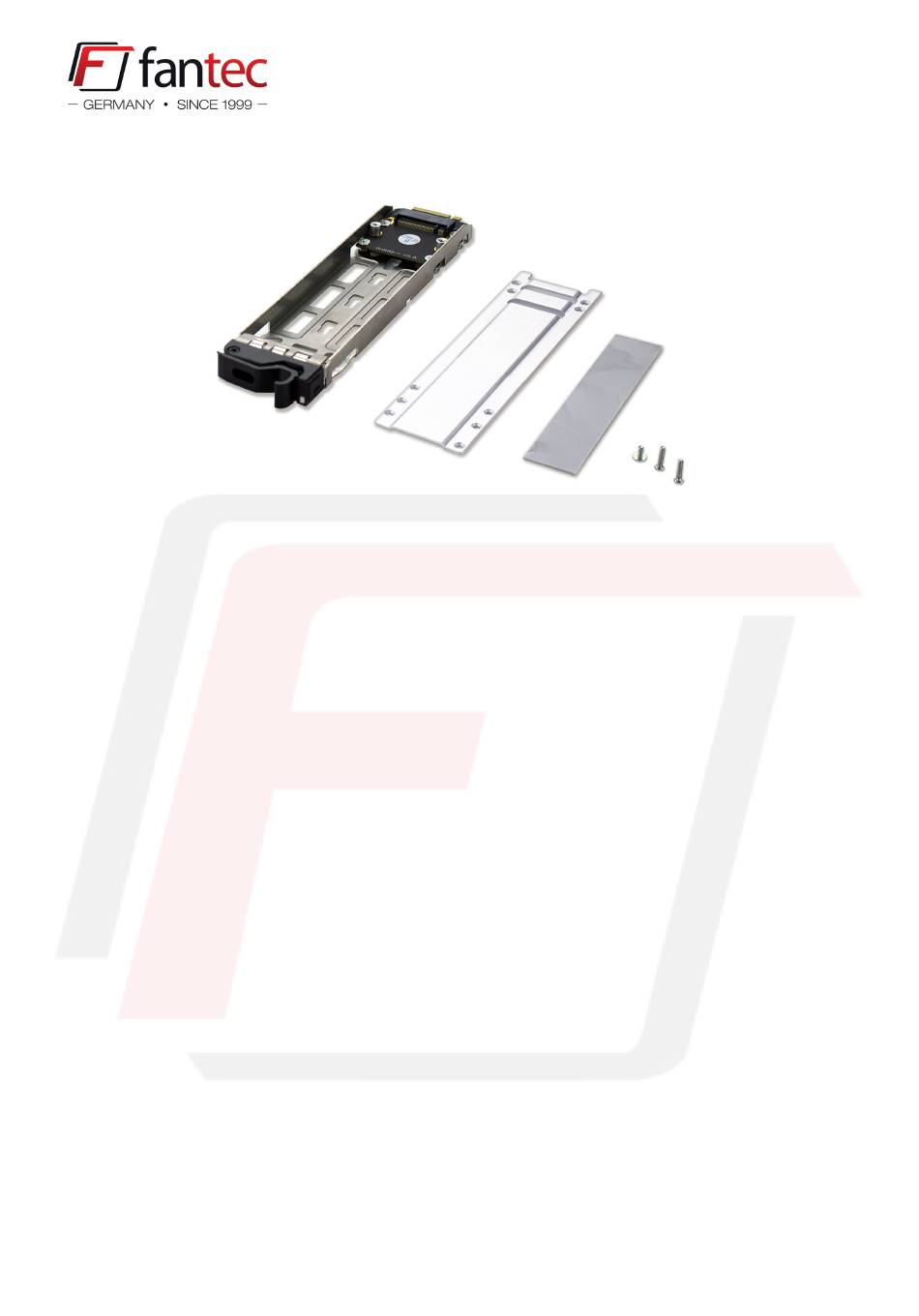

Thank you for purchasing the FANTEC NVMePCIe TR-1 removable rack system. This
additional slide-in tray will add another carrier to your FANTEC NVMePCIe TR-1 system.
The NVMe is mounted on the slide-in tray and inserted into the removable frame of the
card at the back of your PC via the slot bracket. This way you can add another NVMe qui-
ckly, comfortably and without tools in your PC - without opening the PC.
Please read this manual carefully. For the installation you need a fine cross screwdriver.
You are handling very small screws. For this, use a secure base on which the screws
cannot roll away if they slip.

Prepare the NVMe SSD

Place the NVMe into the connector on the slide-in frame. Gently push the NVMe into the
horizontal position and check that the black screw bolt of the slide-in frame is positioned
so that it is under the mounting notch at the end of the NVMe. Usually, the position is
prepared for a 2280 NVMe.
If you are using a shorter NVMe, remove the NVMe from the tray again and carefully
place the screw bolt in the correct position. It can be removed from the prepared position
by sliding it on the slotted hole, and then slide it back into the notch at the correct
position. The bolt is loosely inserted. It is not screwed. Be careful not to lose it.
1
