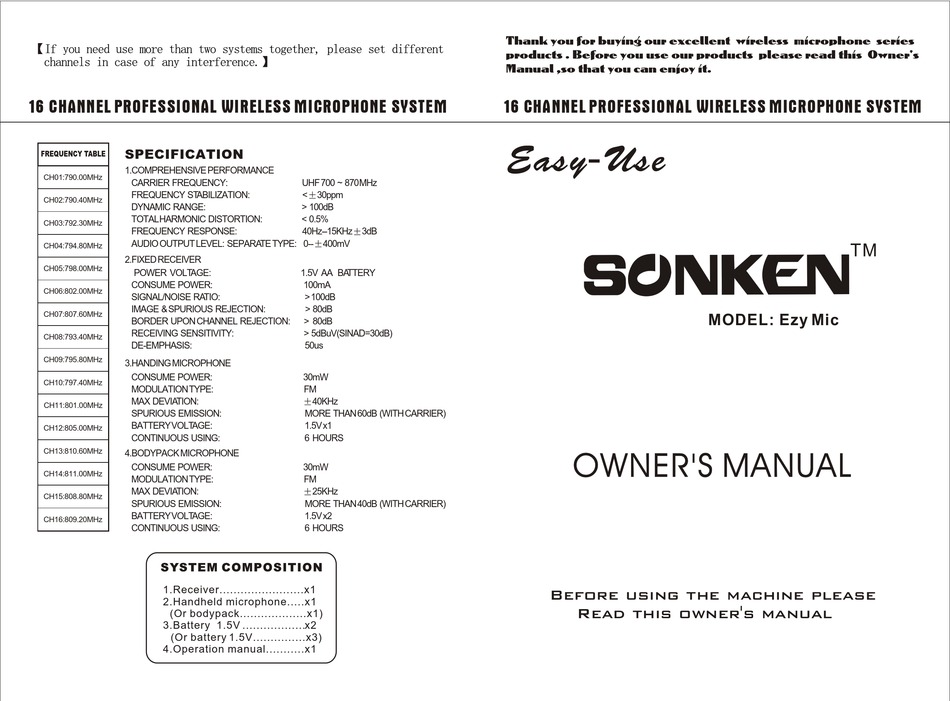

Sonken Ezy Mic Owner's Manual

16 CHANNEL PROFESSIONAL WIRELESS MICROPHONE SYSTEM
SPECIFICATION
FREQUENCY TABLE
1.COMPREHENSIVE PERFORMANCE
CH01:790.00MHz
CARRIER FREQUENCY:
FREQUENCY ST ABILIZATION:
CH02:790.40MHz
DYNAMIC RANGE:
TOTAL HARMONIC DISTORTION:
CH03:792.30MHz
FREQUENCY RESPONSE:
AUDIO OUTPUT LEVEL: SEPARA TE TYPE: 0 -- 400mV
CH04:794.80MHz
2.FIXED RECEIVER
CH05:798.00MHz
POWER VOLT AGE:
CONSUME POWER:
CH06:802.00MHz
SIGNAL/NOISE RATIO:
IMAGE & SPURIOUS REJECTION:
CH07:807.60MHz
BORDER UPON CHANNEL REJECTION:
RECEIVING SENSITIVITY:
CH08:793.40MHz
DE-EMPHASIS:
CH09:795.80MHz
3.HANDING MICROPHONE
CONSUME POWER:
CH10:797.40MHz
MODULATION TYPE:
MAX DEVIATION:
CH11:801.00MHz
SPURIOUS EMISSION:
BATTERY VOLT AGE:
CH12:805.00MHz
CONTINUOUS USING:
CH13:810.60MHz
4.BODYPACK MICROPHONE
CONSUME POWER:
CH14:811.00MHz
MODULATION TYPE:
MAX DEVIATION:
CH15:808.80MHz
SPURIOUS EMISSION:
BATTERY VOLT AGE:
CH16:809.20MHz
CONTINUOUS USING:
1.Receiver........................x1
2.Handheld microphone.....x1
(Or bodypack...................x1)
3.Battery 1.5V ..................x2
(Or battery 1.5V...............x3)
4.Operation manual...........x1
UHF 700 ~ 870 MHz
< 30ppm
> 100dB
< 0.5%
40Hz--15KHz 3dB
1.5V AA BA TTERY
100mA
> 100dB
> 80dB
> 80dB
> 5dBuV(SINAD=30dB)
50us
30mW
FM
40KHz
MORE THAN 60dB (WITH CARRIER)
1.5V x1
6 HOURS
30mW
FM
25KHz
MORE THAN 40dB (WITH CARRIER)
1.5V x2
6 HOURS
Thank you for buying our excellent wireless microphone series
products . Before you use our products please read this Owner's
Manual ,so that you can enjoy it.
16 CHANNEL PROFESSIONAL WIRELESS MICROPHONE SYSTEM
Easy-Use
Before using the machine please
Read this owner's manual
TM

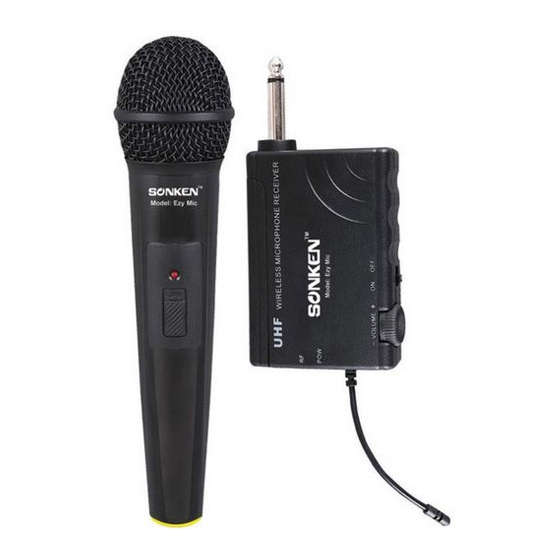

MODEL: Ezy Mic
