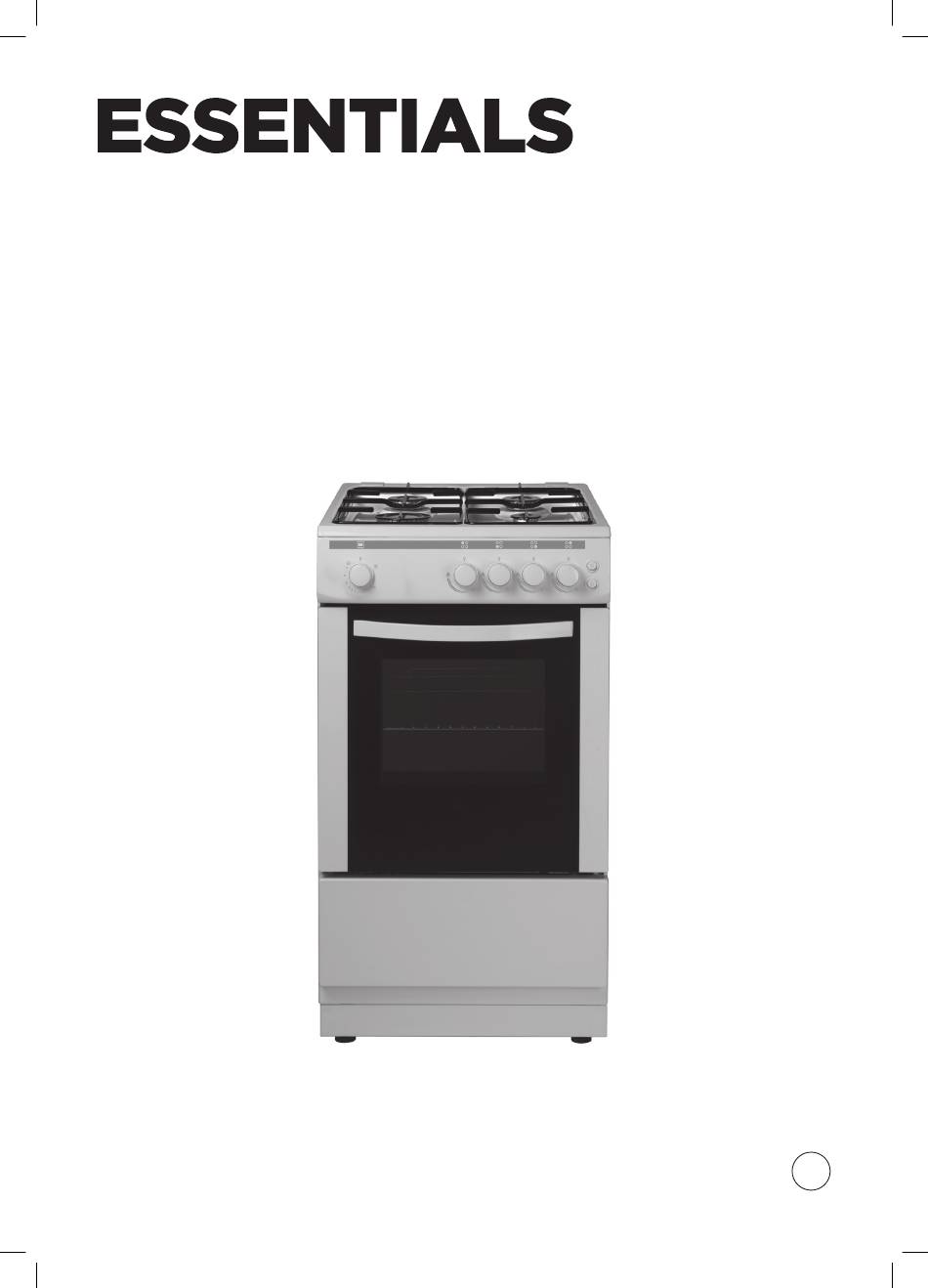

- Page 1 INSTRUCTION MANUAL fRee STANdINg gAS COOkeR CfSgSV16 / CfSgWH16 CFSGSV16_WH16_IB.indd 1 04/04/2016 17:43...
-
Page 2: Table Of Contents
Contents Safety Warnings ..........................4 Unpacking ............................. 7 Installation ............................ 8 Adjusting the Feet ........................9 Moving the Cooker ........................9 Stability Bracket ........................... 9 Ventilation Requirements ......................10 Gas Installation ........................... 10 Installation and Service Regulations ..................10 Gas Connection ........................... 11 Installation Relevant to Natural Gas ....................... - Page 3 Using the Oven ........................... 20 First Time Use of the Oven ..........................20 Oven/Grill Control ..............................20 Lighting the Oven ..............................20 Flame Failure Safety Feature..........................21 Shelf Positions................................. 21 Replacing the Anti-tilting Oven Shelf ......................21 Adjusting the Temperature ..........................21 Preheating ................................
-
Page 4: Safety Warnings
Safety Warnings IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE • This appliance must be installed by a qualified Gas Safe registered engineer (in the UK). The manufacturer is not responsible for any damage caused by incorrect installation. • Check whether there is any damage to the appliance after you have unpacked it. - Page 5 • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory and mental capabilities, or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
- Page 6 • The glass oven door uses toughened glass and is designed to break into many ‘nugget’ size pieces if it breaks. These pieces will still have sharp edges, please handle broken glass with care. • The appliance is not intended to be operated by means of an external timer or separate remote-control system.
-
Page 7: Unpacking
Thank you for purchasing your new Currys Essentials Free Standing Gas Cooker. You must read this manual in order to fully understand how to operate it correctly. This unit MUST be installed by a competent and Registered Engineer (Gas Safe in the UK). -
Page 8: Installation
Installation • The cooker must be installed by a competent and Gas Safe Registered Engineer (in the UK) and in compliance with local safety and building regulation safety standards. • Prior to installation, ensure that the local distribution conditions (nature of the gas and gas pressure) and the adjustment of the appliance are compatible. -
Page 9: Adjusting The Feet
Adjusting the Feet Your oven stands on 4 adjustable feet. When the oven is placed where it will be used, check if the oven is level. If it is not level, you can adjust by turning the feet clockwise if required. It is possible to raise the appliance a maximum of 30 mm by the feet. -
Page 10: Ventilation Requirements
Ventilation Requirements • This appliance is not connected to a combustion products evacuation device. It should be installed and connected in accordance with current installation regulations. Particular attention should be given to the relevant requirements regarding ventilation. • The appliance should be installed in a room or space with an air supply in accordance with the latest edition of BS5440-2. -
Page 11: Gas Connection
Gas Connection • The installation of the cooker to Natural Gas or LP Gas must be carried out by a Gas Safe registered engineer. Installers must take account of the provisions of the relevant British Standards Code of Practice, the Gas Safety Regulations and the Building Regulations. • The gas connection to the cooker must be installed with a flexible connecting tube made to BS669. -
Page 12: Replacement Of Burner Injectors
Replacement of Burner Injectors This section is to be used only by a Gas Safe Registered Engineer (in the UK). Contact a Gas Safe Registered Engineer to change the Hob Injectors. It is illegal to attempt to change the Hob Injectors yourself. Select the injectors to be replaced according to the “Table for the choice of the injectors”. -
Page 13: To Replace The Oven/Grill Injectors
To Replace the Oven/Grill Injectors Screw Removal of the Grill Burner Injector The grill injector can be accessed by removing the single screw on the tip of the burner (as shown). Remove the screw and pull the grill burner towards the front of the cooker, the injector will be revealed on the rear surface of the cavity. -
Page 14: Injector Size Table
Injector Size Table Natural Gas Burner Injector Values (Total consumption 981 lt/h) G30 / G31 G 20 According to the Gas Type (Total Power 10.3 kW) 28-30 mBar 20 mBar Injector 0.850 1.150 Large Burner (Fast) Nominal Rating Consumption 218.1 gr/h 276.0 lt/h Injector 0.650... -
Page 15: Product Overview
Product Overview Front View Gas Hob Oven Door Control Panel Oven Door Handle Oven Shelf Adjustable Feet Oven Tray Top View Pan Support Standard Burners Large Burner (Fast) Small Burner (Simmer) * All images are for indication only; please refer to your individual unit for actual item. CFSGSV16_WH16_IB.indd 15 04/04/2016 17:43... -
Page 16: Control Panel
Control Panel Oven/Grill Control Rear Right Burner (Simmer) Control Rear Left Burner (Standard) Control Oven Light Switch Front Left Burner (Standard) Control Ignition Switch Front Right Burner (Fast) Control Gas Burners The relevant controls adjust the flow of gas through each of the burners. •... -
Page 17: Using The Hob Burners
Using the Hob Burners Choose the control for the burner you want to use. Press the Ignition switch and at the same time press and hold the Burner control in and then turn it anti- clockwise to the maximum position. Release the Ignition switch only, once the burner is lit. -
Page 18: If The Burner Does Not Light
If the Burner Does Not Light If the burner does not light, check that: • The cooker is switched on. • The gas is turned on. • You have held the control in for at least ten seconds. • The ignitors are sparking. If the ignitors are not sparking, they may be dirty or wet. Clean them gently with a small nylon brush such as a toothbrush as shown below. - Page 19 • Pan sizes should be as per the table shown below. Burners Diameter Minimum Diameter Maximum Diameter Small (Simmer) 12 cm 18 cm Standard 14 cm 22 cm Large (Fast) 22 cm 26 cm • Do not use cooking vessels on the hob that overlap the edges of the hob. • The use of a gas cooking appliance results in the production of heat, moisture and products of combustion in the room in which it is installed.
-
Page 20: Using The Oven
Using the Oven First Time Use of the Oven Ensure that nothing has been left in the oven and that the room is well ventilated. Remove any packaging, labels and handles or plastic bags. Before connecting the power, use a damp cloth to carefully wipe the inner cavity wall and housing. -
Page 21: Flame Failure Safety Feature
Flame Failure Safety Feature The flame supervision device (FSD) probe cuts off the gas supply to the oven burner if the flame is blown out. When lighting the burner, hold the control in for approximately 10 seconds after the burner has lit. Releasing the control too soon will extinguish the flame. -
Page 22: Preheating
Preheating When you need to preheat the oven, we recommend you do so for 10 minutes. For recipes needing high temperatures, e.g. bread, pastries, scones, soufflés etc., best results are achieved if the oven is preheated first. For best results when cooking frozen or cooked chilled ready meals always preheat the oven first, unless the cooking instructions advise you otherwise. -
Page 23: Using The Grill
Using the Grill When using the grill, the grill deflector must be used. The grill deflector is designed to protect the control panel controls and buttons when using the oven in Grill mode and to keep the door open the specified distance. • Please use this grill deflector in order to avoid heat damaging the control panel and the buttons when the oven is in Grill mode. -
Page 24: Cooking With The Grill
When turning the grill off, turn the control in a anti-clockwise direction so that the control shows the OFF (O) position in line with the marking on the control panel. • If the grill burner does not light within 15 seconds, turn the control off and wait for at least 90 seconds before trying again. -
Page 25: Cleaning Instructions
Cleaning Instructions Before you start cleaning your cooker, please: • Read the cleaning instructions and the “Safety Warnings” sections. • Turn the cooker off at the wall and disconnect the plug from the socket. • Allow the cooker to cool fully before cleaning. • Do not use a steam cleaner. -
Page 26: Cleaning The Gas Hob
Cleaning the Gas Hob Maintenance Period Description Daily • Clean the gas hobs as per the cleaning instructions. Monthly • Remove all burner parts, and clean using a non-abrasive detergent. Rinse in cold water, dry thoroughly, and replace. • Clean the ignitor and probe carefully, using a toothbrush. Every year • Contact your local authorized gas Service Agent to perform a thorough check on all gas components on the gas cooker. -
Page 27: Hob Controls (Gas Taps)
Hob Controls (Gas Taps) If you have problems with the hob controls (gas taps), call your Authorised Service Centre. These parts are NOT user serviceable. Removing the Oven Door • Ensure the door has cooled down. • Take care when handling glass. The oven door can easily be removed as follows: Open the door completely. -
Page 28: Hints And Tips
Replacing the Oven Lamp Ensure that the cooker is switched off before replacing the lamp to avoid the possibility of electric shock. Let the oven cavity cool down. • Remove the glass lens by turning anti-clockwise. • Unscrew and replace the bulb with a new one suitable for high temperatures (300°C). • Refit the glass lens by turning clockwise. -
Page 29: Product Fiche And Specifications
Product Fiche and Specifications Brand Essentials Model CFSGSV16 / CFSGWH16 Product Type Gas Cooker Mass of the appliance 37 Kg Main Oven Energy Efficiency Index - Conventional 102.4 Enegy Class 5.94 MJ/cycle Energy Consumption (gas) - Conventional 1.65 kWh/cycle Heat Source Volume 48 litres Number of Cavities... -
Page 30: Energy Saving Tips And Energy Label
Energy Saving Tips and Energy Label Main Oven • Cook the meals together, if possible. • Keep the pre-heating time short. • Do not elongate cooking time. • Do not forget to turn off the oven at the end of cooking. • Do not open the oven door during cooking. - Page 31 CFSGSV16_WH16_IB.indd 31 04/04/2016 17:44...
- Page 32 For general information about this appliance and handy hints and tips, please visit www.knowhow.com/knowledgebank or call 0344 5611234. Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can deliver direct to your door the very next day. Visit www.partmaster.co.uk or call 0344 800 3456 (UK customers only).
