Summary of Contents for Digital Home System DH210

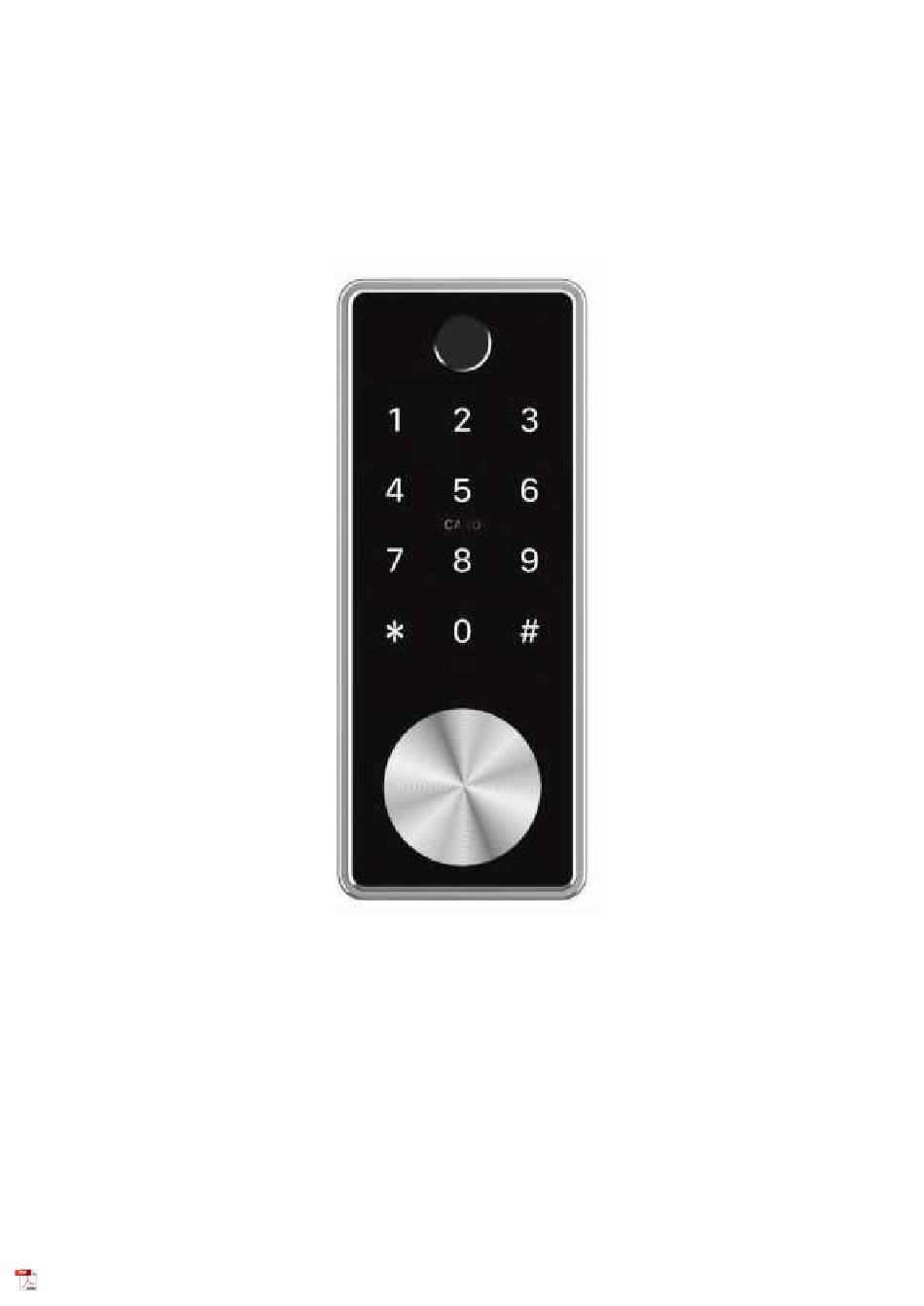

- Page 1 DH210 SMART FINGERPRINT DEADBOLT LOCK...
- Page 2 1. Lock Structure 2. Mortise...
-
Page 3: Installation
3. Installation a. Confirm opening direction ⚫ To install the lock for left-open, ensure the toggle button on the back assembly is set to L. ⚫ To install the lock for right-open, ensure the toggle button on the back assembly is set to R. Left-Open Right-Open Confirm before installation... - Page 4 Deadbolt always keep pull in This direction always Keep UP What is left open? This we called "left open"(show as image) Change to "L" position in the PCB of back panel...
- Page 5 Deadbolt knob always horizontal Note: Any of above is improper set, will cause problem! Right Open Spindle always keep horizontal Deadbolt always keep pull in...
- Page 6 This direction always What is right open? This we called "right open"(show as image) Change to "R" position in the PCB of back panel...
- Page 7 Deadbolt knob always horizontal Note: Any of above is improper set, will cause problem! c. Installation Steps Step2 Install Screws Casing and Water Step1 Install Mortise Rubber Plate upright, not flat Step3 Install Front Panel Step4 Fixed Front Panel...
-
Page 8: Specifications
Step5 Connecting Front and Step6 Fixed Back Panel Back Panels Step7 Install Batteries Step8 Cover the battery box 4. Specifications Suitable for Models T11B Materials Zinc Alloy Lock Size 144*60mm 1.5 KG Lock Weight Bluetooth Gateway （ Option ） Unlocking way Fingerprint... -
Page 9: Reset Button
Card Password Mechanical Key Silver Color Black Doors Applicable Wooden Door Working Voltage 6V/4x AA Batteries Door Thickness to Fit 35-60mm Working Temperature -25℃-60℃ Working Humidity 20%-90% Low Wattage Alarm Less than 4.8V Communication mode Bluetooth 4.0 Support System Android 4.3 / IOS 7.0 above ≤30uA Static current ≤200m A... -
Page 10: Hardware Troubleshooting
Hardware Troubleshooting In this case, first check that the positive and negative keyboard, screen no respond electrodes of the battery have been installed upside down, whether the battery has enough power Remove the back panel and see if it's connected. To eliminate the above situation, you need to remove the lock, check whether the wires of the lock body are squeezed, and the re-wire. - Page 11 8) How many times will the Bluetooth: Enter wrong 5 times and lock for 5 minutes passcode be locked? How long is it Non-Bluetooth: Enter wrong 5 times, lock for 1 minute locked? 9) How many records can be kept in Bluetooth: 500 the lock? Non-Bluetooth: 10000...
