Page 2

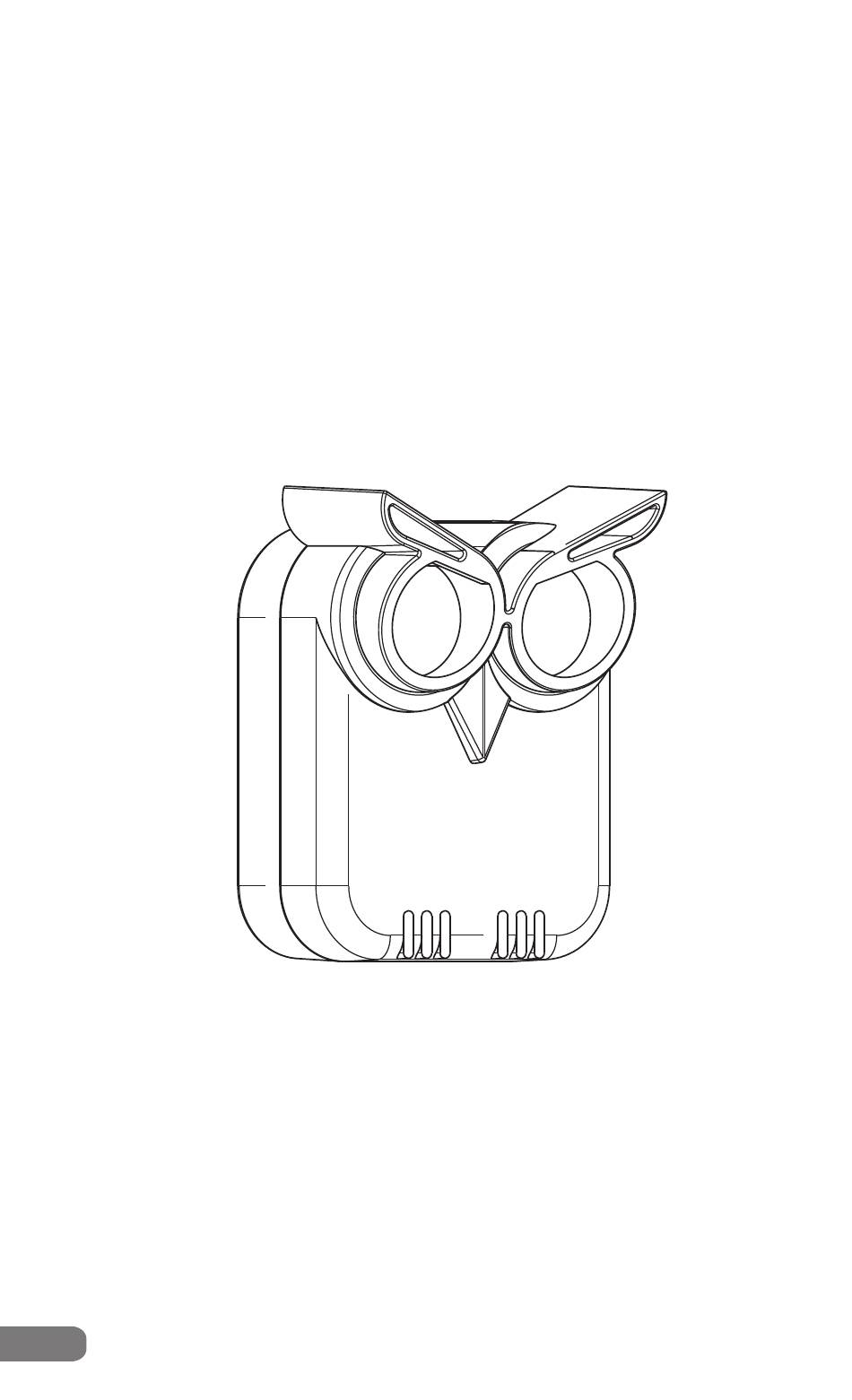

1. System Components And Usage Wireless Motion Sensor Sensor Eye Sensor Eye: detects heat movements. Indicator Light Sensitivity Switches Battery Compartment Indicator Light: flashes once meaning the motion sensor was activated and sent the wireless signal. Battery Compartment: please insert 3 pieces AA 1.5V Alkaline batteries (not included).
Page 3
2. Operation Instructions How to add sensors to the wireless receiver (Note: all the HTZSAFE sensors can work with all the HTZSAFE receivers.Take one of our receivers HB-808A for example to show you how to connect the sensor to the receiver; Up to 32 sensors can be added to one or multiple receivers.) Step 1 Select the sensitivity (High / Low).
Page 4
Step 3 Plug the receiver into an outlet. The indicator light of the receiver will flash once and a beep prompt meaning normal operation. Step 4 Press and hold the “Volume” button for 5 seconds and release the button when you hear a beep prompt and the indicator light flashes.
Page 5
Step 5 Activate the sensor. Note:please have the sensor close to the plug-in receiver. flashing quickly 1 foot way (the indicator light will flash (a ring tone prompt and the indicator light flashes quickly meaning the once meaning the motion sensor sensor has been added to the was activated and sent the wireless plug-in receiver successfully)
Page 6
Step 8 Installation. Wireless Motion Sensor long screws short screws...
Page 7
Installation Notes: 1. Please fix the motion sensor tightly to ensure the position and the direction will not be moved easily by wind. 2.Please point the sensor towards a open field (not towards the trees or bushes). 3.please adjust the sensor a little down(never upwards). 4.please point the sensor eye towards to the engine or exhaust pipe if detecting vehicles.(the working principle of the senor is detecting the movements with heat sources).
High sensitivity----50 feet(15m) Detection Angle 15° Wireless Transmission Range 1/2 Mile (800m) Wireless Frequency 433MHz FSK+FHSS Working Voltage 4.5V Battery Type 3pcs AA 1.5V Alkaline Batteries (not included Working Current Static≤1mA; Alarming≤100mA -22°F to 158°F(-30℃ to 70℃) Working Temperature Range 32-HB202011-T804(1.1)-02...
