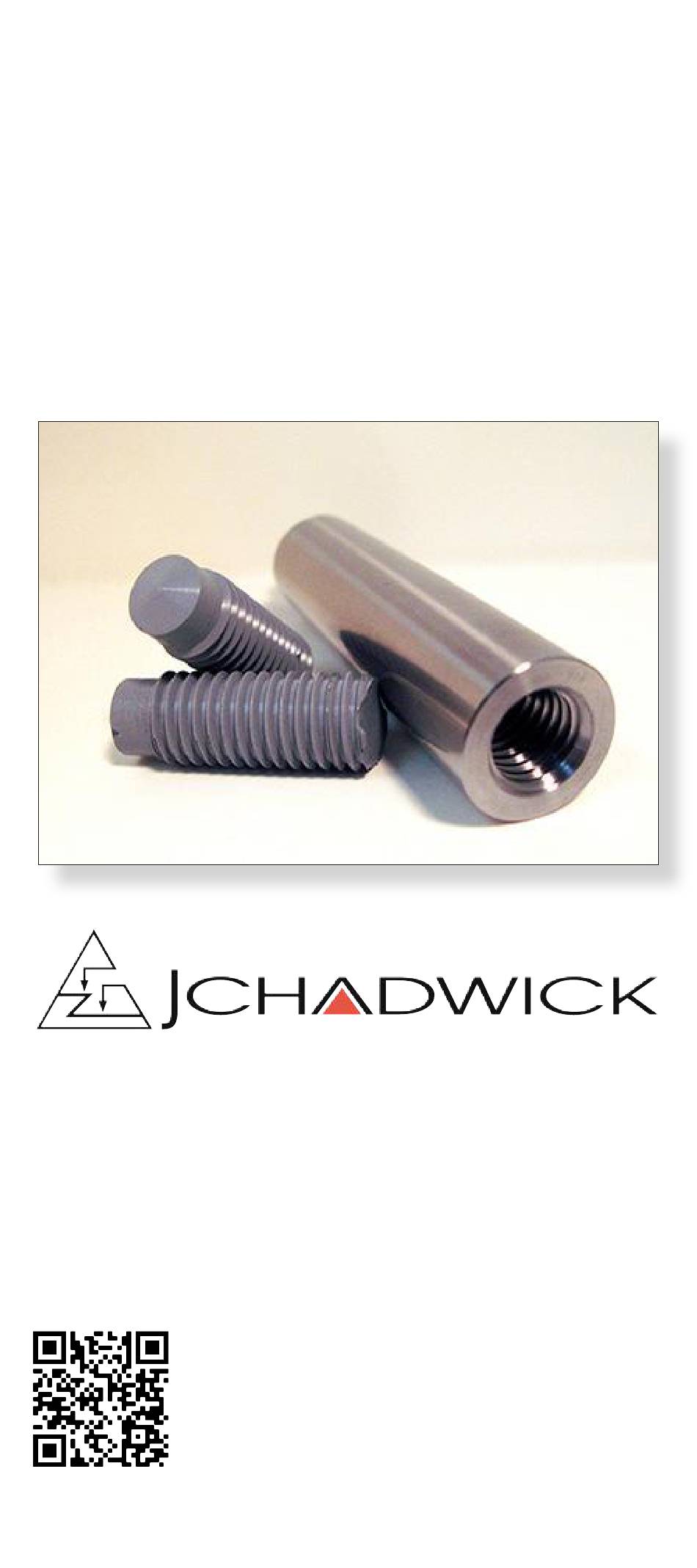

USER MANUAL
4400M
Surface Replication Kit
with Microset® Compounds
www.jchadwickco.com
support@jchadwickco.com
Toll Free (866) 358-9955
Fax (626) 358-1448
1005 S. Mountain Ave.
Monrovia CA 91016
Scan QR Code (with
smartphone camera)
to view a short training
video on our website.
B5 March-2020
JCC DOC#
Advertisement
Table of Contents
Summary of Contents for JCHADWICK 4400M
- Page 1 USER MANUAL 4400M Surface Replication Kit with Microset® Compounds www.jchadwickco.com support@jchadwickco.com Toll Free (866) 358-9955 Fax (626) 358-1448 1005 S. Mountain Ave. Monrovia CA 91016 Scan QR Code (with smartphone camera) to view a short training video on our website.
- Page 2 4400M Surface Replication Kit Each 4400M Kit Includes: 1. 1 x Dispensing Gun (P/N 4400-1) 2. 5 x 50ml Replication Compounds (P/N 4400-2RT/RF) 3. 1 x Nozzle Pack, 50/Pack (P/N 4400-31), 4. 1 x Pack of Backing Slides, 50/Pack (P/N 4400-4) 5.
- Page 4 https://www.microset.co.uk/ ASSEMBLE THE DISPENSING GUN Raise slide release lever on dispenser body and insert piston slide. Keep slide release lever raised and push slide back as far as possible. Lower slide release lever. Piston Slide Cartridge Clip Slide Release Lever...
- Page 5 MICROSET is supplied in a two part cartridge which is dispensed through a static mixing nozzle using a hand held dispenser. The two components of the cartridge are mixed together as they pass through the static mixing nozzle during the dispensing procedure. This ensures air-free mixing and minimum wastage of material during application.
- Page 6 5. After use, remove the nozzle and replace the cap. To re-use the cartridge, fit a new nozzle. Note: The 4400M Microset Kit includes a Tall Tripod Base (8400-27) fand the Tilting Stage Base (4400-7) for use with the Model 8400 Optical Depth Micrometer.
- Page 7 TROUBLE SHOOTING Dispensing gun fails to pressurize cartridge. Damaged piston slide. Check piston slide and replace if necessary. Compound does not bond to backing paper. Wrong side of backing paper used. See backing paper instructions. Material cures in the nozzle. Stop/Start operation or nozzle attached for a long period before use.
