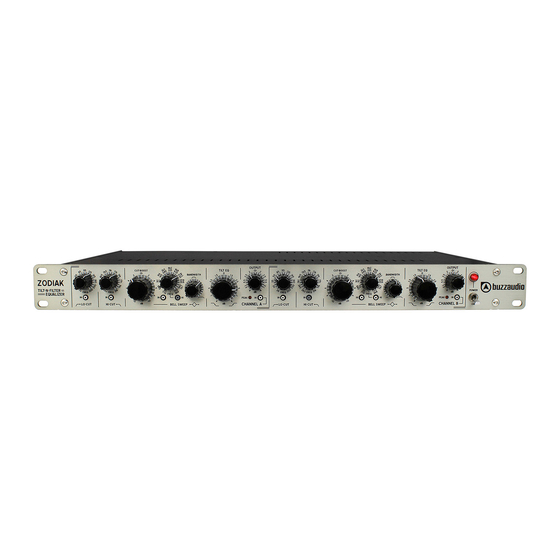

- Page 1 Zodiak “Tilt-n-Filter” Equalizer Users Manual...
- Page 2 Welcome… Thank you for choosing the Buzz Audio Zodiak “Tilt-n-Filter” Equalizer. In this manual you will find important information regarding the use of the Zodiak and we suggest you do read it before using the unit to become familiar with all the controls and their function.
- Page 3 1] Installation Precautions The Zodiak is available in 3 versions, the ICT, ICX and DCX. The IC versions use integrated circuit amplifiers which do not generate much heat. However, the DCX version uses discrete Class A amplifiers and these plus the power supply do generate a fair amount of heat.
- Page 4 have the Lundahl output transformer which is also capable of also driving unbalanced loads. 4] Controls and Indicators The Zodiak has two separate channels of equalization each with identical controls. If using the unit on stereo material, it would be normal to set the controls identically on each channel.
- Page 5 BANDWIDTH – is used to adjust the width of the bell filter, sometimes called a “Q” control. A narrow width (CCW) is useful when you want to target a small range of frequencies whereas a wider shape (CW) is used for more broader equalization. TILT EQ SECTION This control is used to adjust the overall spectrum of the sound you are processing.
- Page 6 Please note there are no user serviceable parts inside the Zodiak and attempting any internal adjustments without the alignment instructions and correct test equipment may render the unit un-operational. For on line support visit our web site www.buzzaudio.com Buzz Audio Ltd, PO Box 171, Blenheim 7240, New Zealand. Phone +64-(0)3-577-5597. Email; support@buzzaudio.co.nz...
- Page 7 Zodiak Tilt-n-Filter Equalizer. Standard Product Warranty Buzz Audio Ltd guarantees the Zodiak Tilt-n-Filter Equalizer to be free of defective materials and/or workmanship for a period of 1 year (12 months) from the date of sale, and will replace defective parts and repair malfunctioning products under this warranty when the defect occurs under normal installation and use –...
